Honeywell CC-PDIL01 51405040-175 Original Industrial Spare C300 Compatible

Product Overview

Honeywell CC-PDIL01 51405040-175 Original Industrial Spare C300 Compatible — System Stability & Industrial Spare Parts Maintenance Value

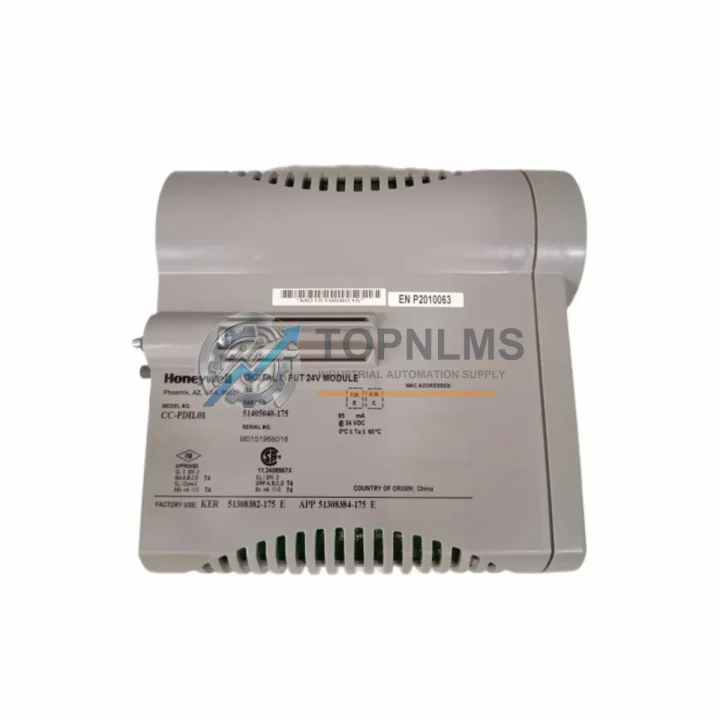

The Honeywell CC-PDIL01 (51405040-175) is a genuine 24VDC Digital Input Module engineered for the Experion PKS C300 Distributed Control System platform. In process-critical industries where unplanned downtime translates directly into production loss and safety risk, maintaining a verified spare of the CC-PDIL01 is not optional — it is a fundamental pillar of any responsible preventive maintenance strategy. TOPNLMS stocks, tests, and ships this module with a 12-month warranty, providing procurement teams and maintenance engineers with a reliable, cost-effective path to system continuity.

The Experion PKS C300 architecture is widely deployed across oil & gas, petrochemical, power generation, pharmaceutical, and pulp & paper facilities. Within this architecture, the CC-PDIL01 serves as the field-side digital input interface, collecting discrete on/off signals from field instruments, limit switches, valve position feedback, motor status contacts, and safety interlock circuits. Any degradation or failure of this module can blind the control system to critical field states — making rapid, like-for-like replacement with a genuine Honeywell original spare the only acceptable recovery path.

Critical Technical Specs Table

Preventive Maintenance Strategy

A disciplined preventive maintenance program for any Experion PKS C300 installation extends well beyond a single module. When scheduling a planned inspection or responding to a fault condition involving the CC-PDIL01 51405040-175, experienced maintenance engineers routinely audit the surrounding I/O infrastructure to prevent cascading failures and extend the operational life of aging control systems.

The CC-PDIL01 mounts onto the CC-TDIL01 IOTA termination assembly — the field wiring interface that should be inspected for terminal corrosion, loose conductors, and label integrity at every maintenance interval. Alongside the digital input module, the CC-PDOB01 (51405039-175) Digital Output Module shares the same C300 I/O chassis and is subject to identical environmental stresses; replacing or bench-testing both during the same maintenance window eliminates a second potential failure point. Similarly, the CC-PAIX02 Analog Input Module, commonly installed in adjacent slots for process variable monitoring, should be verified for calibration drift and connector integrity during the same inspection cycle.

The C300 Controller module (CC-PCF901) itself is the backbone of the entire I/O cluster. Maintaining a cold-standby spare of the controller, alongside the I/O modules it manages, is standard practice in high-availability process environments. Power distribution within the C300 cabinet is typically handled by the CC-PWR001 24VDC power supply module — a component whose capacitor aging and output ripple should be measured annually, as power quality directly affects digital input signal integrity on the CC-PDIL01. A degraded power supply is one of the most common root causes of intermittent digital input faults that are incorrectly attributed to the I/O module itself.

Communication continuity between the C300 and the Experion PKS server relies on the Fault Tolerant Ethernet (FTE) network infrastructure. Inspecting FTE switch modules, fiber patch panels, and redundant network interface cards during the same maintenance window ensures that a restored CC-PDIL01 can communicate reliably with the supervisory layer. For facilities running hybrid architectures, the CC-SCMB01 Serial Communication Module and associated gateway hardware should also be verified for firmware currency and connector seating.

Field-side, the discrete signals feeding the CC-PDIL01 originate from limit switches, solenoid valve feedback contacts, and motor control center (MCC) auxiliary contacts. Inspecting the associated terminal blocks, marshalling cabinet wiring, and signal isolators — particularly in high-EMI environments near variable frequency drives — prevents nuisance input faults that can be misdiagnosed as module failures. Fuse modules protecting the 24VDC field loop circuits should be tested for continuity and replaced on a scheduled basis rather than reactively. Where CC-PDOB01 digital outputs drive solenoids or relay coils in the same control loop, verifying the output module’s channel health simultaneously closes the diagnostic loop and confirms end-to-end circuit integrity.

TOPNLMS maintains inventory of the CC-PDIL01 and its associated C300 I/O family components, enabling procurement teams to consolidate spare parts orders, reduce lead times, and simplify vendor management across the Experion PKS platform.

Strategic Replacement Solutions

The Honeywell CC-PDIL01 (51405040-175) has been in service across global process industries for over a decade. As original equipment ages and OEM support windows narrow, the ability to source a genuine, tested replacement module becomes a strategic asset rather than a routine procurement transaction.

Unlike third-party alternatives or refurbished units of uncertain provenance, the CC-PDIL01 supplied by TOPNLMS is sourced from verified supply channels, subjected to functional testing prior to shipment, and backed by a 12-month replacement warranty. This eliminates the risk of installing an untested module into a live process environment — a risk that can result in immediate re-failure, extended downtime, and potential safety incidents.

For facilities managing end-of-life Experion PKS R400 or R500 installations, the CC-PDIL01 provides a direct, firmware-compatible replacement that preserves existing IOTA wiring, tag databases, and control strategies without requiring re-engineering. This compatibility advantage significantly reduces the labor cost and system risk associated with a module swap, making it the preferred choice for maintenance planners operating under tight turnaround windows.

TOPNLMS ships globally with standard lead times of 3–7 business days for in-stock items. Express logistics options are available for emergency breakdown situations. All modules are packaged in anti-static, moisture-barrier packaging with full documentation to support incoming inspection and traceability requirements.

Support FAQ

Q1: What does the 12-month warranty cover for the CC-PDIL01?
The 12-month warranty covers functional failure under normal operating conditions. If the module fails to perform to Honeywell’s published specifications within the warranty period, TOPNLMS will provide a replacement unit at no additional cost. Warranty claims are processed with priority to minimize your system downtime.

Q2: How is the CC-PDIL01 tested before shipment?
Every CC-PDIL01 unit undergoes a pre-shipment functional verification that includes power-on self-test confirmation, channel continuity checks, and visual inspection for physical damage, corrosion, or component anomalies. A test report is available upon request for quality assurance documentation purposes.

Q3: Is the CC-PDIL01 51405040-175 compatible with all Experion PKS C300 revisions?
The CC-PDIL01 with revision suffix 51405040-175 is compatible with standard C300 I/O Link architectures across Experion PKS R400, R500, and R501 releases when paired with the correct CC-TDIL01 IOTA. For specific firmware or hardware revision compatibility questions, contact our technical team at [email protected] before ordering.

Q4: Can TOPNLMS support long-term or blanket spare parts orders for the CC-PDIL01?
Yes. TOPNLMS supports scheduled procurement programs for maintenance teams managing multiple Experion PKS installations. We can reserve inventory, provide staged delivery schedules, and issue consolidated documentation packages to support your site’s spare parts management system. Contact us to discuss volume pricing and long-term supply agreements.
