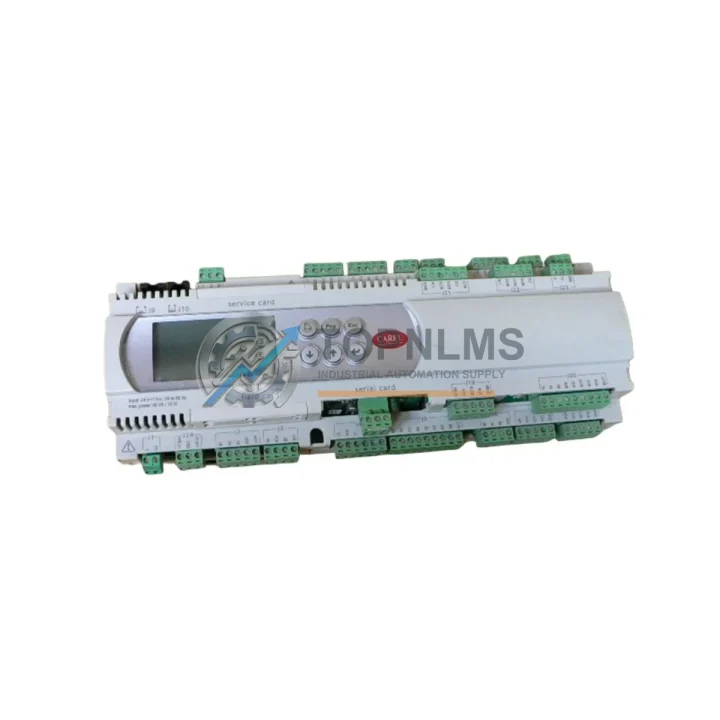

CAREL PCO3000EL0 Replacement for pCO3 Series

Product Overview

CAREL PCO3000EL0 Replacement for pCO3 Series: Smooth Migration from Legacy HVAC Control Systems

The CAREL PCO3000EL0 is a mid-range programmable controller from the renowned pCO3 Series, engineered for precision control of HVAC, refrigeration, and building automation systems. As legacy CAREL pCO1, pCO2, and early pCO3 variants reach end-of-life or become increasingly difficult to source, facilities managers and OEM integrators are actively seeking a reliable, drop-in-compatible upgrade path. The PCO3000EL0 answers that need directly — offering expanded I/O capacity, enhanced communication protocol support, and full backward compatibility with existing CAREL application software and terminal accessories.

At TOPNLMS, we maintain ready stock of the PCO3000EL0 to support urgent replacement scenarios, planned retrofit projects, and multi-unit OEM builds. Every unit ships with a 12-month warranty, pre-shipment functional testing, and full documentation support. Whether you are replacing a failed controller on a chiller plant, upgrading a cold-room system, or standardizing a fleet of rooftop units onto a modern control platform, the PCO3000EL0 delivers the performance and compatibility your project demands.

Compatibility Comparison Table

Seamless Upgrade Solutions

A successful migration from a legacy CAREL pCO1 or pCO2 system to the PCO3000EL0 rarely involves the controller alone. In practice, the upgrade process touches several interconnected components within the control cabinet and field wiring infrastructure. Understanding these dependencies upfront reduces commissioning time and eliminates costly return visits.

The pCO3 Series controller communicates natively over the pLAN network using RS-485 wiring, which means existing field bus cables between the controller and terminal displays — such as the CAREL pGD1 graphic display or the compact pGD0 terminal — can typically be reused without modification. This is a significant advantage when the control cabinet has limited cable routing space or when the wiring harness is embedded in a machine frame.

For systems that require integration with building management systems (BMS) or SCADA platforms, the PCO3000EL0 supports Modbus RTU over RS-485 as standard, with optional expansion cards enabling BACnet MS/TP or LonWorks communication. If your legacy system used a CAREL PCO100000 (pCO1) or PCO200000 (pCO2) with a dedicated BACnet gateway, the PCO3000EL0 can eliminate that gateway entirely by handling the protocol natively — simplifying the panel layout and reducing potential failure points.

When expanding I/O capacity during the upgrade, the CAREL PCO300000 (pCO3 large) or PCO3000BA0 I/O expansion modules can be added to the same DIN rail, sharing the pLAN bus with the PCO3000EL0 as a master controller. This modular architecture is particularly valuable in chiller plant rooms where a single controller must manage compressors, condenser fans, electronic expansion valves, and multiple temperature and pressure sensors simultaneously.

Power supply compatibility is straightforward: the PCO3000EL0 operates on 24 VAC/VDC, identical to all pCO1 and pCO2 predecessors. Existing CAREL-compatible 24V DIN rail power supplies or third-party equivalents already installed in the panel require no replacement. However, if the panel power supply is aging or undersized for the expanded I/O load, this is an appropriate time to upgrade to a higher-capacity unit.

For field engineers performing the physical swap, the PCO3000EL0 uses the same screw-terminal wiring connectors as earlier pCO3 variants, and the terminal block layout follows the same pin assignment convention as the pCO2 for analog and digital I/O. A careful review of the original wiring diagram against the PCO3000EL0 I/O map — available in the CAREL technical manual — is recommended before energizing the replacement unit. In most standard HVAC applications, the wiring transfer is completed within two to four hours.

Application software migration is handled through CAREL 1tool, the unified programming environment for the entire pCO platform. Programs developed for pCO1 or pCO2 can be imported, reviewed, and recompiled for the PCO3000EL0 with minimal modification. In many cases, only the I/O variable mapping requires adjustment to account for the expanded channel count. The CAREL USB programming key (PCOS00ADP0) allows firmware and application uploads without a laptop connection, which is particularly useful for field technicians performing multiple unit replacements across a site.

For installations where the legacy system included a CAREL MPXPRO electronic expansion valve driver or a CAREL EVD Evolution stepper driver, these devices communicate with the pCO3 controller over the pLAN or RS-485 bus and remain fully compatible with the PCO3000EL0. No driver firmware changes are required in standard configurations.

Retrofit Guidance FAQ

Q: Can the PCO3000EL0 directly replace a CAREL pCO1 (PCO100000) without rewiring?
A: In most cases, yes. The 24V power supply input, RS-485 pLAN port, and screw-terminal I/O connectors are physically compatible. However, the I/O channel count differs between pCO1 and pCO3, so a wiring diagram review is required to confirm all field signals are correctly mapped to the new terminal assignments before commissioning.

Q: Is the application software from a pCO2 system reusable on the PCO3000EL0?
A: Yes. CAREL 1tool supports import and recompilation of pCO2 application files for the pCO3 platform. Minor variable remapping may be needed for I/O channels that differ between the two hardware generations. CAREL’s migration guide (available from CAREL technical support) provides a step-by-step procedure.

Q: What communication protocols does the PCO3000EL0 support natively?
A: The PCO3000EL0 supports pLAN (CAREL proprietary RS-485 network) and Modbus RTU as standard. BACnet MS/TP and LonWorks are available via optional plug-in communication cards. Ethernet/IP and BACnet/IP require the pCOWeb or pCO5+ platform.

Q: Will the existing pGD1 display terminal work with the PCO3000EL0?
A: Yes. The pGD0, pGD1, and pGDE display terminals are all fully compatible with the pCO3 series over the pLAN connection. No display replacement is required during a controller swap.

Q: How much physical space does the PCO3000EL0 require in the control cabinet?
A: The PCO3000EL0 mounts on a standard 35mm DIN rail and occupies the same physical footprint as other mid-range pCO3 variants. In most retrofit scenarios, the existing DIN rail space previously occupied by the pCO1 or pCO2 is sufficient without panel modification.

Q: What is the recommended procedure for minimizing downtime during the controller swap?
A: Pre-load the application software onto the PCO3000EL0 using a USB key before arriving on site. Photograph the existing wiring before disconnection. Transfer wiring terminal by terminal using the I/O mapping comparison. Power up and verify sensor readings before enabling outputs. A well-prepared swap on a standard HVAC unit typically takes two to four hours.

Warranty Assurance

Every CAREL PCO3000EL0 unit supplied by TOPNLMS is covered by a 12-month warranty from the date of shipment. Our pre-shipment testing protocol verifies power-on functionality, I/O channel integrity, communication port operation, and firmware version before each unit leaves our warehouse in Xiamen, China.

In the event of a confirmed unit defect within the warranty period, TOPNLMS provides a replacement unit or full refund, with return shipping coordinated by our after-sales team. Our standard response time for warranty claims is within 24 business hours of claim submission. We maintain buffer stock specifically reserved for warranty replacements to ensure continuity of supply for our customers.

For procurement teams managing multi-site retrofit programs, we offer batch inspection reports, certificate of conformity documentation, and serialized unit tracking upon request. Volume orders are eligible for priority allocation and dedicated account management.

To place an order, request a quotation, or discuss technical compatibility for your specific application, contact our team directly:
