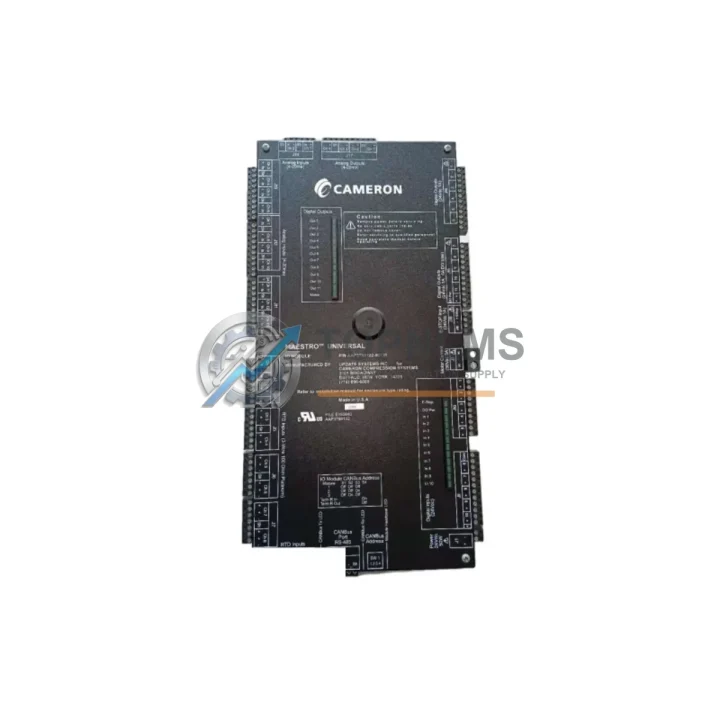

CAMERON AAP3798102-00131 Replacement/Upgrade Solution

Product Overview

CAMERON AAP3798102-00131 Replacement/Upgrade Solution: Seamless Transition from Legacy Control Systems

The CAMERON AAP3798102-00131 is a proven Control System Module widely deployed in oil & gas, petrochemical, and industrial process automation environments. As legacy CAMERON control architectures age and original equipment manufacturers discontinue support for older platform variants, facilities face increasing pressure to source reliable replacement units or execute a structured upgrade path that preserves existing wiring infrastructure, communication protocols, and control logic without triggering a full system overhaul.

TOPNLMS maintains verified stock of the AAP3798102-00131 module, fully tested prior to shipment, and backed by a 12-month replacement warranty. Whether you are replacing a failed unit on an emergency basis or executing a planned migration from an end-of-life CAMERON control platform, this module is engineered to slot into your existing rack architecture with minimal re-engineering effort.

The AAP3798102-00131 is designed for compatibility within CAMERON’s modular control system framework. It interfaces directly with associated I/O termination assemblies and backplane bus structures common to the CAMERON automation series, meaning field wiring terminations, shielding arrangements, and signal conditioning requirements remain consistent with the original installation. Engineers performing a like-for-like swap can typically complete the physical replacement without rewiring field instruments, preserving loop integrity and reducing commissioning time significantly.

From a communication protocol perspective, the module supports the serial and digital interface standards prevalent in CAMERON’s control architecture, ensuring compatibility with upstream supervisory systems, DCS gateways, and SCADA platforms that rely on established data exchange formats. Facilities running Modbus RTU, HART, or proprietary CAMERON communication stacks will find the AAP3798102-00131 integrates without requiring protocol converter additions or gateway reconfiguration.

Compatibility Comparison Table

Seamless Upgrade Solutions

A successful migration to the AAP3798102-00131 rarely involves a single module in isolation. In practice, control system modernization projects require a coordinated approach across multiple hardware layers. During the upgrade process, engineers commonly address the condition of associated CAMERON I/O termination modules and signal conditioning assemblies, which may have accumulated wear over the same operational lifespan as the control module being replaced.

Where the existing installation includes aging CAMERON power supply modules sharing the same rack or control cabinet, it is prudent to evaluate their output stability before commissioning the replacement AAP3798102-00131. A degraded power rail can introduce noise or voltage sag that masks the true performance of a newly installed control module and complicates fault diagnosis during startup.

Communication infrastructure is another critical layer. Facilities that rely on CAMERON serial communication modules or RS-485 / Modbus gateway cards to bridge the control system to a plant DCS or SCADA platform should verify firmware compatibility and cable integrity as part of the same maintenance window. Replacing the control module while leaving a marginal communication card in service is a common source of post-commissioning instability.

For installations where the AAP3798102-00131 interfaces with CAMERON analog input/output modules handling 4–20 mA process signals from field transmitters, loop calibration verification is recommended after module swap to confirm signal scaling and zero/span settings remain within specification. Similarly, digital I/O modules connected to discrete field devices — valve actuators, motor starters, and safety interlocks — should be functionally tested as part of the commissioning checklist.

In larger control cabinets where the CAMERON system coexists with third-party HMI panels or operator interface terminals, the upgrade window provides an opportunity to verify OPC or Modbus polling configurations remain aligned with the replacement module’s register map. Programming cables and configuration adapters compatible with the CAMERON platform should be on hand during commissioning to allow rapid parameter verification and, if needed, firmware updates. Signal isolators and surge protection modules installed on field cable entries are also worth inspecting, as these components protect the control module from transient damage and their condition directly affects long-term reliability of the replacement unit.

Retrofit Guidance FAQ

Q: Can I replace the AAP3798102-00131 without rewiring field instruments?
A: Yes. The module uses the same termination interface as the unit it replaces. Field wiring connected to the existing termination assembly remains undisturbed. Only the module itself is swapped in the rack slot.

Q: Will my existing control program need to be reloaded or modified?
A: For a like-for-like replacement, the application program stored in the controller is not affected by the module swap. If the replacement is part of a platform upgrade involving a different controller revision, a program download may be required — consult your system documentation.

Q: Is the AAP3798102-00131 compatible with Modbus RTU and HART communication?
A: Yes. The module is compatible with the communication protocols standard to the CAMERON control platform, including Modbus RTU and HART pass-through where supported by the system architecture. No protocol converters are required for standard configurations.

Q: Does the module fit the existing cabinet without mechanical modification?
A: The AAP3798102-00131 shares the same physical form factor as the original CAMERON module series. It installs in the existing rack slot without requiring panel cutout modifications, DIN rail changes, or additional mounting hardware.

Q: What is the recommended commissioning procedure after installation?
A: After physical installation, verify power rail voltage at the module connector, confirm communication link status indicators, perform a functional I/O check against the field device list, and validate process variable readings against known reference values before returning the loop to automatic control.

Q: Can TOPNLMS provide technical support during commissioning?
A: Yes. Our technical team is available to assist with compatibility verification, configuration guidance, and troubleshooting support during the commissioning phase. Contact us at [email protected] or +86 18359293191.

Warranty Assurance

Every CAMERON AAP3798102-00131 module shipped by TOPNLMS is covered by a 12-month replacement warranty from the date of delivery. Prior to dispatch, each unit undergoes functional verification testing to confirm operational integrity. This pre-shipment inspection process is designed to identify latent defects before the module reaches your facility, reducing the risk of a failed installation and the associated downtime costs.

In the event a warranty claim is required, TOPNLMS provides a structured replacement support process. Defective units are assessed promptly upon return, and replacement modules are dispatched with priority to minimize the impact on your operations. Our after-sales response team is reachable via email and telephone to coordinate return logistics and provide status updates throughout the process.

For procurement teams managing spare parts budgets and vendor qualification requirements, TOPNLMS issues documentation supporting the warranty terms, including test records and shipment certificates where required. We understand that industrial procurement decisions involve more than price — lead time reliability, warranty enforceability, and supplier responsiveness are equally critical factors, and our processes are structured to meet those expectations.

Stock availability for the AAP3798102-00131 is maintained to support both emergency replacement orders and planned procurement cycles. Expedited shipping options are available for urgent requirements, with dispatch from our Xiamen facility to global destinations.
