BTU International 4080395-004 Ruggedized I/O Control Module

Product Overview

BTU International 4080395-004 Ruggedized I/O Control Module: Industrial Resilience for Harsh Environments

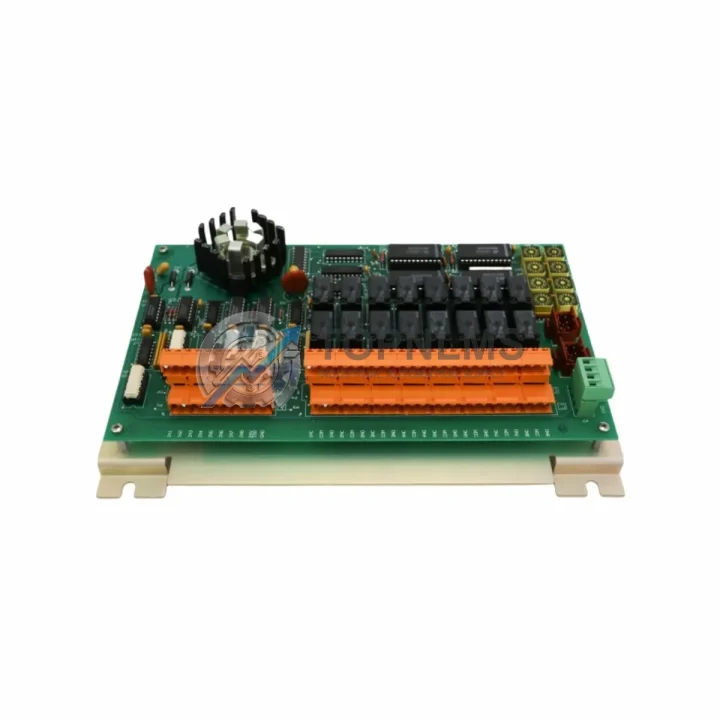

The BTU International 4080395-004 Quad I/O PCB is a precision-engineered control board designed for the demanding operational requirements of the BTU 5225S reflow oven platform and compatible industrial thermal processing systems. Built to withstand the relentless stresses of continuous production environments — including elevated ambient temperatures, airborne flux particulates, mechanical vibration, and electromagnetic interference — this board delivers the signal integrity and process stability that mission-critical SMT assembly lines depend on.

In high-throughput electronics manufacturing facilities, the control architecture of a reflow oven is the backbone of yield quality. The 4080395-004 Quad I/O PCB manages the critical interface between the oven’s thermal zone sensors, conveyor drive systems, and the central process controller. Its four-channel I/O architecture enables simultaneous monitoring and actuation across multiple process zones, ensuring that temperature profiles remain within tight tolerances even under full production load. When a single zone deviates, the board’s fast-response I/O logic triggers corrective action before defects propagate — a capability that directly protects downstream PCB assemblies and reduces scrap rates.

Designed for environments where downtime is measured in lost revenue per minute, the 4080395-004 is engineered with industrial-grade components rated for extended thermal cycling. The board operates reliably in the high-temperature ambient conditions inherent to reflow oven enclosures, where lesser commercial-grade PCBs would suffer accelerated component degradation. Its conformal coating-compatible substrate and robust connector interfaces resist the corrosive flux vapors and fine particulate contamination common in wave soldering and reflow environments.

Rugged Specifications Table

Comprehensive Protection Solutions

The 4080395-004 does not operate in isolation — it is one node in a tightly integrated control architecture. In a fully configured BTU 5225S reflow system, this Quad I/O PCB works in concert with the BTU 5225S main process controller board, which orchestrates the overall thermal profile execution. Zone temperature feedback is delivered via BTU thermocouple input modules and RTD signal conditioning boards, which feed calibrated data to the I/O PCB for closed-loop control decisions.

The conveyor drive system — typically governed by a BTU conveyor speed control PCB or an integrated variable-frequency drive (VFD) module — receives actuation signals through the 4080395-004’s output channels. In facilities running mixed SMT and through-hole production, the oven’s control system may also interface with nitrogen atmosphere control modules and oxygen monitoring sensor boards, all of which depend on reliable I/O signal routing through boards like the 4080395-004.

For facilities maintaining a broader industrial automation infrastructure, the reflow oven control system often sits alongside Siemens S7-series PLC modules, Allen-Bradley ControlLogix I/O cards, or Omron CJ-series process controllers that manage upstream and downstream production stages. The 4080395-004’s standard industrial signal levels ensure compatibility with these adjacent control systems without requiring signal conversion. Power conditioning for the board is typically sourced from 24VDC industrial DIN-rail power supplies — such as those from the Phoenix Contact QUINT series or Siemens SITOP line — which provide the stable, low-ripple DC power that sensitive I/O circuitry requires.

Facilities that maintain a comprehensive spare parts inventory for their reflow lines will also stock BTU 5225S heating element relay boards, zone isolation contactors, and BTU operator interface panel PCBs alongside the 4080395-004, ensuring that any single-point failure can be resolved within a single shift without waiting for emergency procurement.

Application in Critical Infrastructure

The BTU International 4080395-004 Quad I/O PCB finds its most demanding applications in facilities where production continuity is non-negotiable. In aerospace and defense electronics manufacturing, reflow oven control boards must maintain thermal profile accuracy to within ±2°C across all zones to meet IPC-7711/7721 rework standards and MIL-spec soldering requirements. A failed I/O board in this context does not merely halt production — it risks the integrity of safety-critical assemblies.

In automotive electronics production — including ECU board assembly, ADAS sensor module manufacturing, and EV battery management system PCB production — the 5225S platform running the 4080395-004 control board operates in three-shift, 24/7 production cycles. The thermal and mechanical stresses accumulated over continuous operation make having a qualified, tested spare board on hand a standard risk management practice for any responsible production engineering team.

Industrial power electronics manufacturers producing variable-frequency drives, industrial UPS systems, and high-power inverter boards rely on precise reflow profiles to ensure solder joint reliability on high-mass components. The 4080395-004’s multi-channel I/O capability supports the complex zone-by-zone profile adjustments required for these thermally demanding assemblies.

In telecommunications infrastructure manufacturing — including base station PCB assembly and fiber optic transceiver module production — the 5225S reflow platform is a proven workhorse, and the 4080395-004 is a known wear item that experienced production engineers proactively replace on a scheduled maintenance cycle rather than waiting for in-service failure.
