Braun E1691 24VDC DCS Power Supply Module Replacement

Product Overview

Braun E1691 24VDC DCS Power Supply Module Replacement: Smooth Transition & Legacy System Compatibility

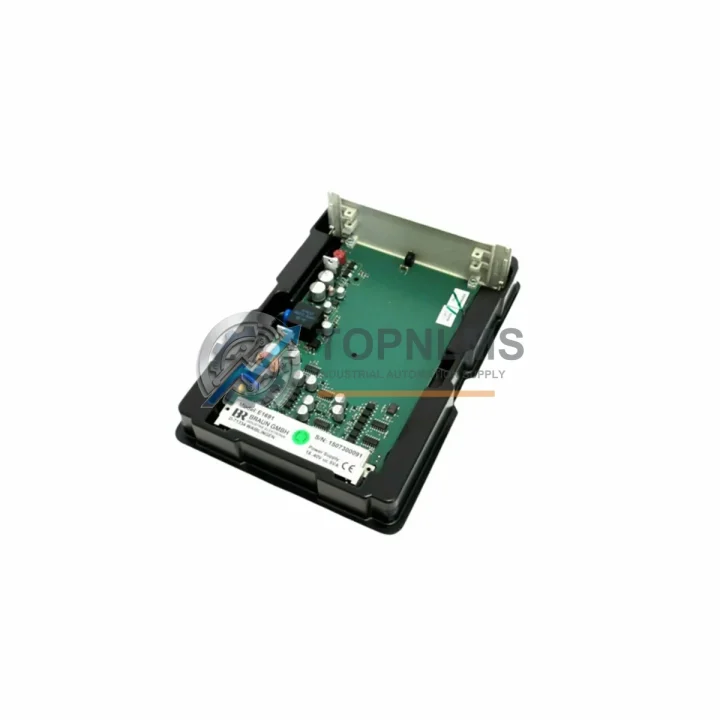

The Braun E1691 is a 24VDC DC power supply module designed for use within Braun DCS distributed control system architectures. As aging plant infrastructure reaches end-of-life and original Braun E1691 units become increasingly difficult to source through OEM channels, facilities engineers and procurement teams are turning to certified replacement units to maintain system uptime without committing to a full platform migration. TOPNLMS supplies the Braun E1691 as a direct-fit, tested replacement module — stocked in Xiamen and ready for fast international dispatch.

Whether your facility is running a legacy Braun DCS rack that has been in continuous service for over a decade, or you are executing a phased modernization program that requires interim power supply continuity, the E1691 replacement unit is engineered to slot into your existing control cabinet without rewiring, without reprogramming, and without structural modification to your rack assembly. This makes it an ideal solution for minimizing planned and unplanned downtime during the transition period between legacy and next-generation control architectures.

Compatibility Comparison Table

Seamless Upgrade Solutions

A power supply module replacement rarely occurs in isolation. In most DCS modernization projects, the E1691 swap is one step within a broader effort to stabilize or upgrade the control system platform. During the commissioning phase, engineers frequently identify adjacent components that require simultaneous attention to ensure system integrity.

When replacing the E1691, it is common practice to audit the associated Braun DCS I/O modules installed in the same rack — particularly analog input modules and digital output modules that share the 24VDC bus. If these modules are also approaching end-of-life, sourcing them alongside the E1691 reduces the number of maintenance windows required and lowers total project cost. Similarly, the Braun DCS controller backplane and rack chassis should be inspected for connector wear, especially in high-vibration environments such as petrochemical plants or heavy manufacturing facilities.

For sites that are executing a partial migration from a legacy Braun DCS to a modern distributed I/O platform — such as a PROFIBUS DP or PROFINET-based architecture — the E1691 replacement can serve as a bridge power source while new remote I/O stations and fieldbus communication modules are being commissioned in parallel. In these hybrid configurations, a signal isolator or loop-powered barrier is often inserted between the legacy 4–20mA field instruments and the new I/O cards to protect both systems during the cutover period.

Projects that involve HMI upgrades alongside the power supply replacement should also account for the 24VDC supply requirements of the new operator panel or industrial PC. If the E1691 is being used to power a legacy Braun operator station, the replacement unit must be verified against the updated load profile before commissioning. In cases where the total load has increased due to added I/O cards or communication modules, a supplementary DIN-rail power supply module may be required to share the load across the cabinet.

For facilities that maintain a programming workstation connected to the DCS via a serial or USB programming cable, the E1691 replacement process does not require any changes to the programming environment. The controller logic, function block diagrams, and tag databases remain intact on the DCS engineering station, and no re-download is required unless the controller itself is being replaced simultaneously.

Retrofit Guidance FAQ

Q: Does replacing the E1691 require any rewiring of field terminals?
A: No. The TOPNLMS E1691 replacement unit uses the same terminal block layout as the original Braun module. Field wiring connections — including 24VDC distribution to I/O cards, solenoid valves, and transmitter loops — remain unchanged. Simply remove the failed unit, insert the replacement, and restore power.

Q: Will the replacement module affect the DCS communication bus or controller logic?
A: No. The E1691 is a power supply module and does not participate in the DCS data communication bus. Replacing it has no effect on controller programs, tag configurations, alarm setpoints, or inter-module communication. The DCS controller will resume normal operation immediately after power restoration.

Q: Is the replacement unit compatible with the original Braun DCS rack and backplane?
A: Yes. The replacement E1691 is manufactured to the same mechanical and electrical specification as the original, ensuring full compatibility with the Braun DCS rack chassis and backplane connector. No rack modification or adapter plate is required.

Q: What is the lead time and how quickly can the unit be dispatched?
A: Units are stocked in Xiamen and can be dispatched within 1–3 business days of order confirmation. Express international shipping options are available for urgent breakdown situations. Estimated transit times vary by destination — contact [email protected] for a shipping quote specific to your location.

Q: Can the E1691 replacement be used in a system that is being partially migrated to a new PLC platform?
A: Yes. The E1691 is well-suited for hybrid migration scenarios where the legacy DCS rack remains operational while new control hardware is being installed in parallel. It provides stable 24VDC power to legacy I/O and field devices during the transition, reducing the risk of process interruption.

Q: What testing is performed before shipment?
A: Every unit undergoes pre-shipment functional testing including output voltage verification, load regulation testing, and visual inspection for physical integrity. A test report is available upon request for quality-critical procurement processes.

Warranty Assurance

TOPNLMS provides a 12-month warranty on all Braun E1691 replacement units from the date of shipment. This warranty covers manufacturing defects, output voltage deviation beyond specification, and premature component failure under normal operating conditions. Units that fail within the warranty period will be replaced or repaired at no additional cost to the buyer, subject to standard return merchandise authorization (RMA) procedures.

Prior to dispatch, every E1691 unit is subjected to a multi-point pre-shipment inspection that includes output voltage measurement under rated load, insulation resistance testing, and physical inspection of the module housing, terminal blocks, and backplane connector. This process ensures that only fully functional units leave our warehouse.

For procurement teams operating under ISO 9001 or IEC 61511 functional safety frameworks, TOPNLMS can provide documentation packages including test records, product datasheets, and certificate of conformity upon request. We understand that industrial control system components are subject to rigorous incoming inspection procedures, and we are committed to supporting your quality assurance process.

After-sales technical support is available via email at [email protected] or by phone at +86 18359293191. Our engineering team can assist with installation questions, compatibility verification, and commissioning guidance for both direct replacement and hybrid migration scenarios.

Stock availability is updated regularly. For bulk procurement, long-term supply agreements, or urgent breakdown orders, contact our sales team directly for priority handling and volume pricing.
