BRANSON 804-15005-01 Original Industrial Spare 800 Series Compatible

Product Overview

BRANSON 804-15005-01 Original Industrial Spare — 800 Series System Stability & Uptime Assurance

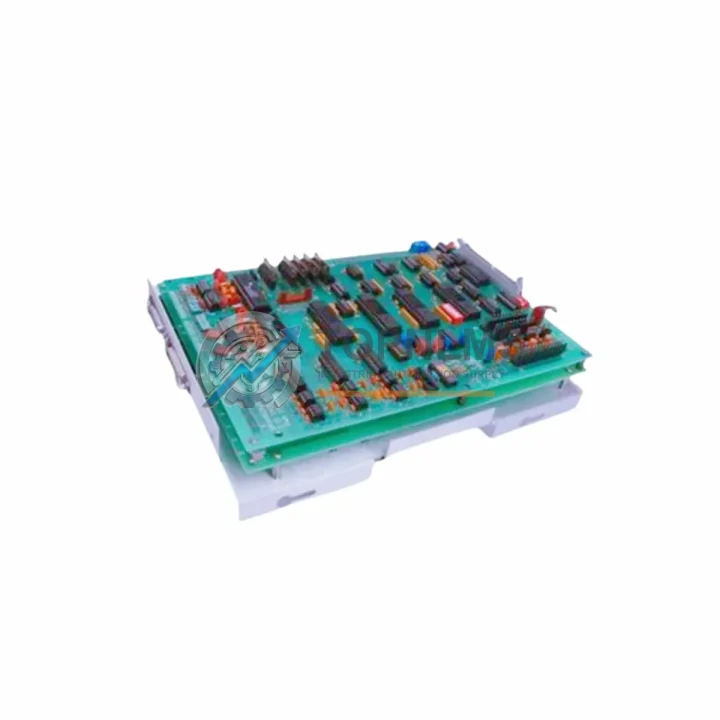

The BRANSON 804-15005-01 PCB Control Board is a critical original spare part for the BRANSON 800 Series ultrasonic welding systems — one of the most widely deployed ultrasonic joining platforms in automotive, electronics, medical device, and consumer goods manufacturing. When this board fails, the entire ultrasonic welder goes offline, halting production lines and triggering costly unplanned downtime. Stocking a verified original replacement is the single most effective measure a maintenance team can take to protect system uptime and reduce mean time to repair (MTTR).

At TOPNLMS, every 804-15005-01 unit is sourced from authorized supply channels, individually inspected, and function-tested prior to dispatch. Each unit ships with a 12-month warranty, full traceability documentation, and is packaged in anti-static ESD-safe materials to ensure board integrity during transit. Worldwide shipping is available with DHL, FedEx, and UPS express options to minimize lead time in emergency breakdown scenarios.

Critical Technical Specs

Preventive Maintenance Strategy

Experienced maintenance engineers know that a PCB control board failure in an ultrasonic welder rarely occurs in isolation. The 804-15005-01 governs the core control logic of the BRANSON 800 Series — managing power delivery, frequency tuning, and weld cycle sequencing. When this board shows signs of instability — erratic weld quality, fault codes, or intermittent shutdowns — it is a strong indicator that adjacent components in the same electrical circuit and control cabinet should be inspected simultaneously.

During a scheduled shutdown or emergency repair involving the 804-15005-01, maintenance teams should conduct a comprehensive inspection of the BRANSON 800 Series power supply module, which provides regulated DC voltage to the control board. A degraded or out-of-spec power supply is a leading cause of premature PCB failure and should be replaced proactively if the unit has been in service for more than three years. Similarly, the BRANSON transducer assembly and booster should be checked for impedance drift, as mismatched acoustic components place abnormal load on the control board’s frequency regulation circuits.

The BRANSON 800 Series generator / power converter module is another component that should be evaluated during the same maintenance window. Generator faults can cause voltage spikes that damage control boards, and replacing the board without addressing a failing generator risks repeat failure within weeks. Inspect the control cabinet terminal blocks and wiring harness for loose connections, oxidation, or insulation degradation — poor contact resistance is a silent killer of sensitive PCB components in high-vibration ultrasonic welding environments.

For facilities running multiple BRANSON 800 Series units, a structured spare parts inventory should include the BRANSON 804-series I/O interface board and the operator panel / HMI display assembly, both of which interact directly with the 804-15005-01 control board. HMI communication faults are frequently misdiagnosed as control board failures; having both spares on hand allows rapid swap-and-test diagnosis, cutting troubleshooting time from hours to minutes.

Additionally, the BRANSON 800 Series fuse module and circuit protection assembly should be part of every preventive maintenance kit. Blown fuses are often a symptom of upstream board or generator stress, and replacing fuses without inspecting the root cause leads to repeat failures. Stocking signal isolation modules for the welder’s I/O interface and communication interface cards (where applicable for networked production lines) rounds out a comprehensive spare parts strategy that protects the entire ultrasonic welding cell — not just the control board.

A well-maintained BRANSON 800 Series system, supported by a proactive spare parts inventory, can deliver reliable service well beyond its original design life. The 804-15005-01 is the heart of that system’s control architecture — treat it as a priority line item in your annual maintenance budget.

Strategic Replacement Solutions

Many facilities operating BRANSON 800 Series ultrasonic welders face the challenge of maintaining aging systems for which OEM support has been reduced or discontinued. The 804-15005-01 PCB control board is a direct original-specification replacement that allows maintenance teams to restore full system functionality without the cost and disruption of a complete machine upgrade.

Unlike generic third-party boards, the original 804-15005-01 is engineered to BRANSON’s exact frequency and power management specifications, ensuring that weld quality, cycle time, and energy output remain within validated production parameters. This is particularly critical in regulated industries such as medical device manufacturing and automotive safety components, where weld process validation is a compliance requirement.

By sourcing a verified original spare from TOPNLMS, maintenance teams can execute a board replacement in a single planned maintenance window — typically two to four hours — versus weeks of lead time for OEM service calls or machine rebuilds. This translates directly to reduced production loss, lower maintenance labor costs, and extended asset life for capital equipment that would otherwise require premature retirement.

For facilities managing multiple BRANSON 800 Series units across different production lines, we recommend maintaining a minimum of one 804-15005-01 board in on-site inventory at all times. The cost of a single hour of unplanned downtime on a high-throughput welding line typically exceeds the cost of the spare part by an order of magnitude — making proactive inventory a straightforward ROI decision.

Support FAQ

Q1: Is the 804-15005-01 compatible with all BRANSON 800 Series models?
The 804-15005-01 is designed for the BRANSON 800 Series ultrasonic welding platform. Compatibility should be verified against your specific unit’s model number and serial plate before installation. Contact our technical team at [email protected] with your machine’s full model and serial number for a compatibility confirmation prior to ordering.

Q2: What pre-shipment testing is performed on each unit?
Every 804-15005-01 board dispatched from TOPNLMS is individually function-tested and visually inspected for component integrity, solder joint quality, and board-level defects. Units that do not pass our inspection protocol are not shipped. A test report is available upon request for quality-critical applications.

Q3: What does the 12-month warranty cover?
The 12-month warranty covers manufacturing defects and functional failures under normal operating conditions from the date of shipment. It does not cover damage resulting from incorrect installation, electrical overstress, or use outside the component’s rated specifications. Warranty claims are processed promptly — contact [email protected] with your order number and a description of the fault.

Q4: How quickly can the 804-15005-01 be shipped, and what are the lead times?
In-stock units are dispatched within 1–2 business days of order confirmation. Express shipping via DHL, FedEx, or UPS is available for emergency breakdown scenarios, with delivery to most major industrial regions within 3–7 business days. Contact us directly for urgent requirements and we will prioritize your order accordingly.
