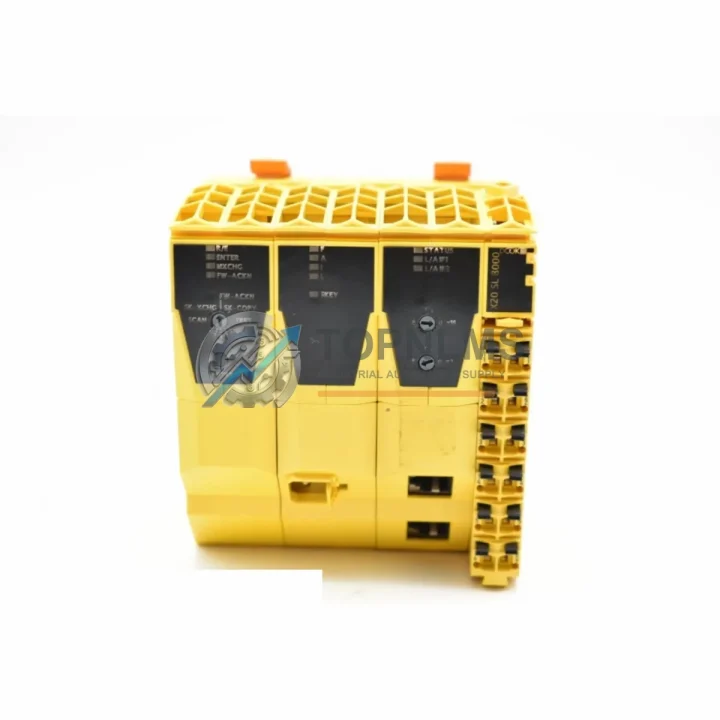

B&R X20SL8000 Replacement/Upgrade Solution for X20 Series: Seamless Safety System Migration

Migrating an aging or discontinued safety controller is one of the most operationally sensitive tasks in industrial automation. The B&R X20SL8000 SafeLOGIC Controller is the designated safety CPU within the X20 Series modular I/O and control platform, and it remains the preferred drop-in replacement or upgrade path for facilities running legacy B&R safety architectures — including earlier SafeLOGIC variants, X20 compact controllers, and third-party safety PLCs that have reached end-of-life. This product page is designed to support procurement engineers, system integrators, and maintenance teams evaluating a controlled migration with minimal production downtime.

The X20SL8000 executes IEC 61508 SIL 3 and EN ISO 13849 PLe safety programs compiled in Automation Studio, B&R’s unified engineering environment. It communicates natively over POWERLINK — B&R’s deterministic, real-time Ethernet protocol — and integrates directly into existing X20 backplane racks without requiring new rack hardware, provided the bus controller and power supply modules are compatible. For sites already running an X20BC0083 or X20BC0087 POWERLINK bus controller, the X20SL8000 slots into the same X20 rail system and is recognized immediately by the existing network configuration.

Wiring compatibility is a primary concern during any safety controller migration. The X20SL8000 does not carry field I/O terminals directly — it operates as the safety CPU, delegating I/O to dedicated safe digital input modules such as the X20SI8110 (8-channel safe digital input) and safe digital output modules such as the X20SO6300. If your existing installation uses these or equivalent X20 safe I/O modules, no rewiring of field devices is required. Terminal blocks, cable routing, and sensor/actuator connections remain unchanged, which dramatically reduces retrofit labor hours and eliminates the risk of wiring errors during changeover.

For facilities migrating from a non-B&R safety PLC — such as a Siemens S7-300F, Allen-Bradley GuardLogix, or Pilz PSS 4000 — the X20SL8000 requires a full safety program rewrite in Automation Studio using SafeDESIGNER. However, the physical installation footprint is compact: the X20SL8000 occupies a standard X20 module slot on a X20TB12 or compatible terminal block, and the overall control cabinet space requirement is significantly smaller than most legacy safety PLC chassis. This makes it an attractive option for cabinet consolidation projects where DIN rail space is at a premium.

Power supply compatibility should be verified before installation. The X20SL8000 draws its logic supply from the X20 internal bus, which is fed by an X20PS9400 or X20PS9402 power supply module. If the existing power supply is undersized for the expanded module count after migration, a replacement or supplementary supply module must be added to the rack. This is a common oversight in retrofit projects and should be included in the BOM review prior to ordering.

Communication protocol continuity is another critical migration factor. Sites running POWERLINK-based motion and I/O networks can retain their entire network topology when replacing the safety CPU with the X20SL8000. For sites that also use OPC UA, Modbus TCP, or PROFINET for supervisory integration, the X20SL8000 works in conjunction with the main CPU — typically an X20CP1586 or X20CP3586 — which handles standard communication stacks while the X20SL8000 manages the safety partition independently. This dual-CPU architecture is a key advantage of the X20 platform and simplifies validation by maintaining a clear separation between standard and safety program execution.

For HMI integration, existing B&R Power Panel or third-party SCADA systems connected via OPC UA or Modbus TCP are unaffected by the safety CPU replacement, as the interface is managed by the standard CPU. No HMI reprogramming is required in most migration scenarios.

Spare parts and inventory planning: the X20SL8000 is a current-production module and is stocked at our Xiamen warehouse for immediate dispatch. Lead times for OEM procurement can extend to 16–26 weeks for this class of safety controller; our stock eliminates that risk for urgent replacement scenarios. All units are tested prior to shipment and include a 12-month warranty covering manufacturing defects and functional failures under normal operating conditions.

Compatibility Comparison Table

Seamless Upgrade Solutions

A complete X20SL8000 migration typically involves several companion modules. The X20BC0083 POWERLINK bus controller manages network communication between the X20 rack and the POWERLINK ring, and must be present in any X20 installation. Safe digital inputs are handled by the X20SI8110, which supports 8 channels of SIL 3-rated digital input for emergency stops, light curtains, and safety gates. Safe digital outputs — for controlling contactors, solenoid valves, and drives with STO (Safe Torque Off) — are managed by the X20SO6300. The rack’s logic power is supplied by the X20PS9400 power supply module, which should be verified for adequate current capacity when adding the X20SL8000 to an existing rack.

For the standard (non-safety) control partition, the X20CP1586 CPU module is the most common pairing with the X20SL8000 in mid-range machine control applications, handling motion coordination, HMI communication, and process logic while the X20SL8000 manages the safety partition independently. Terminal connections between the X20 rack and field devices are made via X20TB12 terminal blocks, which are retained during module replacement and require no rewiring. For installations requiring signal isolation between legacy field wiring and the new X20 I/O bus, a B&R X67 distributed I/O node or a third-party signal isolator can be inserted at the marshalling panel without affecting the X20SL8000 configuration.

Retrofit Guidance FAQ

Q: Can I reuse my existing safety program when replacing an older SafeLOGIC module with the X20SL8000?
A: If migrating from an earlier X20SL variant (e.g., X20SL8010), the safety program compiled in SafeDESIGNER is typically portable with minor hardware configuration updates in Automation Studio. Full revalidation per IEC 62061 or EN ISO 13849 is required regardless.

Q: Does the X20SL8000 require a dedicated POWERLINK network, or can it share the standard POWERLINK ring?
A: The X20SL8000 participates in the same POWERLINK network as standard X20 modules. Safety data is transmitted using PROFIsafe over POWERLINK, which is encapsulated within standard POWERLINK frames — no separate network infrastructure is required.

Q: What physical space does the X20SL8000 require in the control cabinet?
A: The X20SL8000 occupies a single X20 module slot (approximately 12.5 mm wide on the DIN rail). It is one of the most space-efficient safety CPUs available for SIL 3 applications, making it suitable for cabinet consolidation retrofits.

Q: Can the X20SL8000 replace a Siemens S7-315F or similar third-party safety PLC?
A: Physically, yes — the X20SL8000 can fulfill the same functional role. However, the safety program must be fully rewritten in SafeDESIGNER, and all I/O wiring must be adapted to X20 safe I/O modules. A full SISTEMA or SafeDESIGNER validation is required before commissioning.

Q: Is the X20SL8000 compatible with B&R’s mapp Safety framework?
A: Yes. The X20SL8000 supports mapp Safety, B&R’s library-based safety programming framework, which significantly reduces development time for standard safety functions such as STO, SS1, SS2, SLS, and SOS for drive systems.

Warranty Assurance

Every B&R X20SL8000 unit supplied by TOPNLMS is covered by a 12-month warranty from the date of shipment. Prior to dispatch, each unit undergoes functional verification including power-on self-test, communication interface check, and visual inspection for physical damage. Units that fail pre-shipment testing are quarantined and not dispatched.

In the event of a warranty claim, TOPNLMS provides a replacement unit dispatch within 3 business days of claim confirmation, subject to stock availability. Defective units are returned via prepaid logistics at TOPNLMS’s expense for claims confirmed within the warranty period. Our after-sales team is reachable at [email protected] or +86 18359293191 for technical pre-sales consultation, compatibility verification, and post-sale support.

For urgent replacement scenarios — including unplanned downtime events — expedited dispatch from our Xiamen warehouse is available. Most in-stock orders placed before 16:00 CST ship same day. We maintain buffer stock of high-demand X20 Series modules specifically to support emergency procurement requirements.
