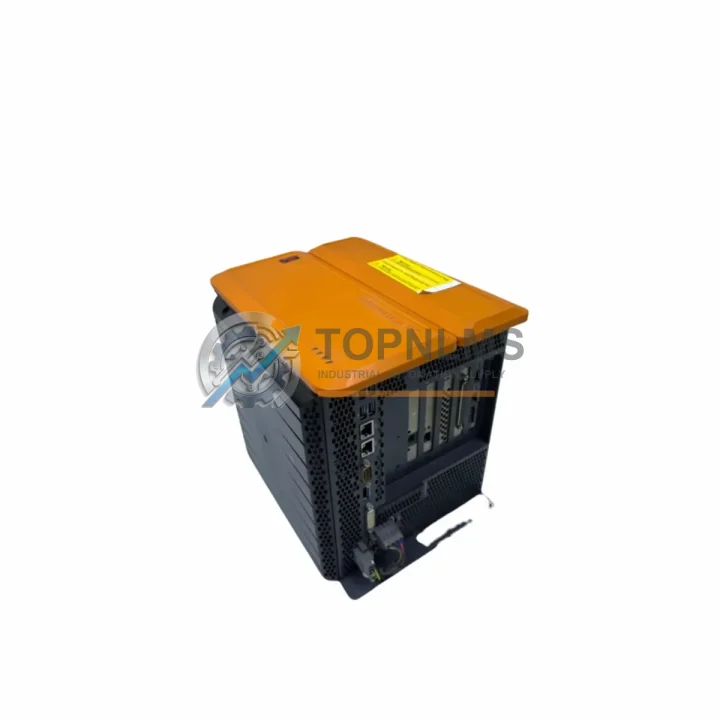

B&R 5PC910.SX05-00 Replacement for Automation PC 910

Product Overview

B&R 5PC910.SX05-00 Replacement for Automation PC 910: Seamless Migration & Compatibility Upgrade

The B&R 5PC910.SX05-00 is a high-performance industrial panel PC from the Automation PC 910 series, designed for demanding machine control, SCADA visualization, and embedded automation applications. As legacy B&R systems age and original units reach end-of-life or become difficult to source, plant engineers and procurement teams increasingly require a verified, drop-in replacement that preserves existing wiring, software configurations, and communication architectures without forcing a full system redesign.

TOPNLMS maintains ready stock of the B&R 5PC910.SX05-00 and its compatible upgrade paths, enabling your team to restore production continuity with minimal downtime. Whether you are replacing a failed unit, building a spare-parts buffer, or executing a planned modernization of an aging B&R control cabinet, this listing provides the procurement assurance and technical compatibility data you need to move forward confidently.

Compatibility Comparison Table

Seamless Upgrade Solutions

A successful migration to the 5PC910.SX05-00 rarely involves the panel PC in isolation. In most retrofit scenarios, the surrounding system components must be evaluated and, where necessary, updated in parallel to ensure a fully integrated and stable control architecture.

When replacing the Automation PC 910 panel unit, engineers typically audit the B&R 5AC901.SDSI-00 CompactFlash storage module and the associated 5AC901.HDDI-xx hard disk drive insert, as these carry the Automation Runtime image and application data. Reusing a healthy storage module from the failed unit can significantly reduce recommissioning time, provided the AR version is compatible with the replacement hardware revision.

The B&R 5PC900.X86-xx CPU module installed in the existing chassis should be inspected before the swap. If the CPU module is serviceable, it can be transferred directly into the replacement 5PC910.SX05-00 chassis, preserving the full software stack without re-licensing. Where the CPU module is also degraded, sourcing a matched 5PC900.TS17-xx or equivalent processor insert ensures continuity of performance class and I/O mapping.

Communication integrity is a critical checkpoint in any Automation PC 910 migration. If the existing system uses B&R POWERLINK for real-time I/O communication, the downstream X20 I/O modules — such as the X20AI4622 analog input module or X20DO9322 digital output module — remain fully compatible without firmware changes. For installations using PROFIBUS DP, the B&R 5AC600.PBDP-00 PROFIBUS interface card can be retained or replaced like-for-like.

Power distribution within the control cabinet should also be reviewed. The B&R 0PS100.1 power supply module or equivalent 24 VDC DIN-rail PSU feeding the panel PC requires no modification, as the 5PC910.SX05-00 maintains the same 24 VDC input specification. However, if the cabinet also houses a B&R ACOPOSmulti drive system or servo amplifier modules, verifying the shared bus voltage stability under the new panel PC load profile is recommended before final commissioning.

For sites running legacy B&R Automation Studio projects, the programming cable — typically a B&R 5CASDL.0xxx-00 SDL/USB programming interface — is required to upload and verify the application after hardware replacement. Ensuring this cable and the correct Automation Studio version are available on-site before the maintenance window opens eliminates a common source of unplanned downtime extension.

Finally, where the 5PC910.SX05-00 interfaces with third-party HMI panels or SCADA systems via OPC UA or Modbus TCP, no protocol reconfiguration is required. The replacement unit presents the same network identity once the IP configuration is restored from backup, allowing upstream supervisory systems to reconnect without modification.

Retrofit Guidance FAQ

Q: Can I reuse my existing wiring harness when replacing the 5PC910.SX05-00?
Yes. The replacement unit maintains the identical connector layout and I/O port positions as the original. USB, Ethernet, serial, and power connectors are pin-compatible, so existing cable assemblies can be reconnected without modification or re-labeling.

Q: Do I need to reprogram the PLC or reload the Automation Runtime project?
If the original CPU module and storage media (CompactFlash or HDD insert) are transferred intact to the replacement chassis, the Automation Runtime project loads automatically on first boot. A full reprogram is only required if the storage media is also being replaced, in which case a backup image from Automation Studio is needed.

Q: Is the 5PC910.SX05-00 compatible with POWERLINK and PROFIBUS networks?
Yes. The Automation PC 910 platform supports both B&R POWERLINK (via onboard interface) and PROFIBUS DP (via the optional 5AC600.PBDP-00 interface card). Existing network topologies, node addresses, and cycle times are preserved after replacement.

Q: Will the replacement unit fit the existing panel cutout and mounting hardware?
The 5PC910.SX05-00 uses the same panel cutout dimensions and mounting flange as the original Automation PC 910 chassis. No cabinet modification, drilling, or adapter plate is required for a direct swap installation.

Q: What is the power supply requirement, and does it differ from the original?
The replacement unit requires 24 VDC input, identical to the original specification. Existing PSU wiring, fusing, and terminal block connections are fully reusable without any electrical modifications.

Q: How do I verify communication with upstream SCADA or HMI systems after replacement?
Restore the original IP address configuration from your network documentation or backup. OPC UA and Modbus TCP connections will re-establish automatically once the network identity is restored. No changes to SCADA tag databases or HMI screen bindings are required.

Q: What if my original unit has a different hardware revision?
Minor hardware revision differences within the 5PC910.SX05-00 family are software-transparent. Automation Runtime handles revision detection automatically. If you are uncertain about revision compatibility for your specific application, contact TOPNLMS technical support before ordering.

Warranty Assurance

Every B&R 5PC910.SX05-00 unit shipped by TOPNLMS is covered by a 12-month warranty from the date of delivery. Prior to dispatch, each unit undergoes a functional verification process including power-on testing, I/O port inspection, display and touch interface validation, and communication port continuity checks. Units that do not pass inspection are not shipped.

In the event of a warranty claim, TOPNLMS provides a replacement unit or full refund within the warranty period. Our technical support team is available to assist with installation verification, compatibility questions, and commissioning guidance. Response time for warranty inquiries is typically within one business day.

For urgent production-down situations, expedited shipping options are available from our Xiamen warehouse. Most in-stock orders are dispatched within 24–48 hours of payment confirmation. Tracking information is provided upon shipment.

Procurement teams requiring formal documentation — including test reports, packing lists, certificates of conformity, or customs invoices — can request these at the time of order. TOPNLMS supports standard B2B procurement workflows including purchase order processing and proforma invoice issuance.
