Bosch Rexroth VPB40 Replacement for IndraControl V

Product Overview

Bosch Rexroth VPB40 Replacement for IndraControl V: Seamless Migration & Upgrade Solution

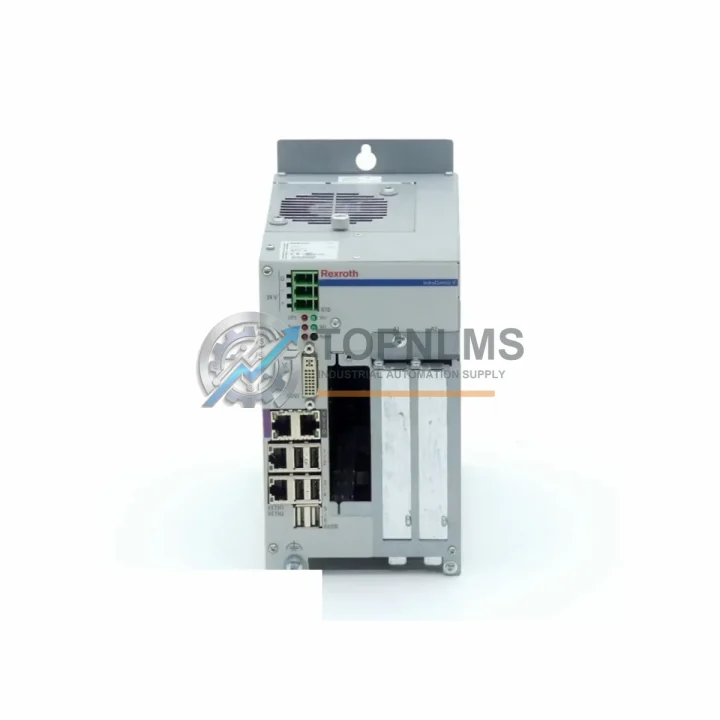

The Bosch Rexroth VPB40 is the central CPU module of the IndraControl V (ICV) modular control platform — a widely deployed architecture in machine automation, press control, injection molding, and process manufacturing lines across Europe and Asia. As the VPB40 approaches end-of-life and spare part availability tightens, engineering teams are increasingly seeking verified replacement units and structured upgrade paths that minimize production downtime and avoid costly system redesigns.

TOPNLMS maintains ready stock of the VPB40 CPU module, fully tested and shipped from Xiamen with a 12-month warranty. Each unit undergoes functional verification prior to dispatch, covering boot sequence, backplane communication, and I/O bus initialization — ensuring the replacement module arrives ready for installation without additional bench testing on your end.

Compatibility Comparison Table

Seamless Upgrade Solutions

A VPB40 replacement rarely occurs in isolation. In most IndraControl V installations, the CPU module operates alongside a structured set of I/O, communication, and power components that must remain functionally aligned during the swap. When migrating from a failed or end-of-life VPB40, engineers typically also audit the VPS (power supply module) mounted on the same ICV rack — a degraded power supply is a common root cause of CPU module faults and should be replaced concurrently to prevent repeat failures.

On the I/O side, the IndraControl V platform uses dedicated digital and analog I/O modules — such as the VDA and VAA series — that communicate with the VPB40 over the internal backplane bus. These modules do not require reconfiguration when the CPU is replaced with a same-SKU unit, provided the backplane and rack (VPR series carrier) remain intact. If the rack itself has suffered damage, the VPR backplane carrier should be inspected and replaced before commissioning the new CPU.

For systems that rely on SERCOS III motion communication, the VPB40 interfaces directly with Bosch Rexroth IndraDrive servo drives — including the HCS and HMS series — via the SERCOS ring. The drive parameters and axis configurations stored in the IndraDrive units are unaffected by a CPU swap, which significantly reduces recommissioning time. Similarly, if the machine uses PROFIBUS DP for field device communication, the existing PROFIBUS master configuration on the VPB40 is restored from the project backup loaded via IndraWorks.

HMI connectivity is another consideration. Many VPB40-based systems use Bosch Rexroth VEP or VDP operator panels connected via Ethernet or serial link. These panels communicate with the ICV controller through standard protocols and do not require driver updates when the CPU module is replaced. The operator panel project and screen logic remain fully functional after the swap.

For facilities managing multiple ICV racks or distributed control cabinets, the VCB communication bridge module — used for inter-rack data exchange — should also be verified for firmware compatibility with the replacement VPB40. In multi-rack architectures, a mismatch in firmware revision between the CPU and communication bridge can cause initialization errors that delay startup.

Finally, if your team is performing a broader migration from an older IndraControl L or IndraControl XM platform to the IndraControl V architecture, the VPB40 serves as the target CPU in the upgraded system. In this scenario, I/O signal wiring, terminal block assignments, and cabinet layout should be mapped against the new ICV rack dimensions before installation to confirm physical fit without panel modification.

Retrofit Guidance FAQ

Q: Can I replace the VPB40 without rewriting my control program?
Yes. The VPB40 replacement unit uses the same firmware architecture and IndraWorks project structure as the original. Load your existing project backup via IndraWorks, download to the new CPU, and the program executes without modification. Ensure your project backup is current before removing the failed unit.

Q: Do I need to rewire any terminals when installing the replacement VPB40?
No rewiring is required. The VPB40 receives power and communicates with I/O modules through the ICV backplane. There are no field wiring terminals on the CPU module itself. Simply seat the replacement module into the same backplane slot and secure the locking mechanism.

Q: Will my SERCOS or PROFIBUS network require reconfiguration after the swap?
No. Network topology and device addresses are stored in the project file, not in the CPU hardware. Once the project is downloaded to the replacement VPB40, the SERCOS ring and PROFIBUS DP network initialize using the existing configuration. Verify network status LEDs after first power-on to confirm all nodes are recognized.

Q: What if the VPB40 slot on my ICV rack is physically damaged?
If the backplane connector or rack slot is damaged, the VPR carrier rack must be replaced before installing the new CPU. Operating a CPU module in a damaged slot risks incomplete backplane communication and intermittent faults. Contact TOPNLMS for VPR rack availability if needed.

Q: How long does commissioning typically take after installing the replacement VPB40?
For a direct same-SKU replacement with an intact project backup, commissioning typically takes 1–3 hours including project download, I/O verification, and a supervised production test cycle. More complex migrations involving firmware updates or multi-rack architectures may require additional time for inter-rack communication verification.

Q: Is the replacement VPB40 compatible with older IndraWorks versions?
The replacement unit supports the same IndraWorks firmware versions as the original VPB40. If your engineering workstation runs an older IndraWorks release, verify the firmware version on the replacement unit matches your project’s target firmware before downloading. TOPNLMS can advise on firmware version matching upon request.

Warranty Assurance

Every VPB40 unit shipped by TOPNLMS is covered by a 12-month warranty from the date of delivery. Pre-shipment testing includes power-on verification, backplane communication check, and functional I/O bus initialization. Units that do not pass all test criteria are not dispatched.

In the event of a warranty claim, TOPNLMS provides a replacement unit or full refund within the warranty period. Our after-sales response time is within 24 hours for warranty inquiries. We support express shipping for urgent replacement scenarios to minimize production downtime.

All units are shipped with anti-static packaging, humidity indicators, and a test report. Export documentation, commercial invoices, and packing lists are provided for international shipments. Payment terms, lead times, and volume pricing are available upon request.

For procurement inquiries, technical compatibility questions, or urgent replacement orders, contact our team directly:

📧 [email protected] | 📞 +86 18359293191
