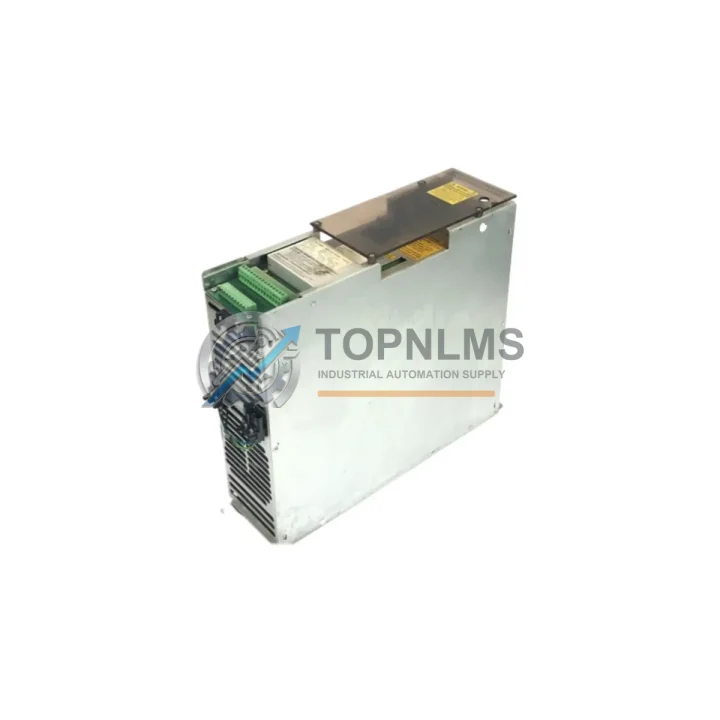

Bosch Rexroth TDM1.2-50-300-W1 Original Industrial Spare

Product Overview

Bosch Rexroth TDM1.2-50-300-W1 Original Industrial Spare – IndraDrive Series System Stability

In high-demand manufacturing environments where servo axis performance is non-negotiable, the Bosch Rexroth TDM1.2-50-300-W1 stands as a proven, field-reliable transistor drive module within the IndraDrive TDM series. Rated at 50A continuous output current with a 300V DC bus voltage and water-cooled thermal management, this module is engineered for sustained operation in servo-intensive applications — from precision CNC machining centers and injection molding lines to heavy-duty press systems and automated assembly equipment.

When a servo drive module fails on a production line, every minute of downtime translates directly into lost output and escalating maintenance costs. Having a verified original spare of the TDM1.2-50-300-W1 on hand is not merely a convenience — it is a core element of any responsible industrial maintenance strategy. This module slots directly into existing Bosch Rexroth IndraDrive TDM-series control cabinets, restoring axis functionality without requiring firmware reconfiguration or mechanical adaptation.

Critical Technical Specs Table

Preventive Maintenance Strategy

A servo drive module does not operate in isolation. The TDM1.2-50-300-W1 functions as part of a tightly integrated drive system, and its long-term reliability depends on the health of every component in the same electrical loop. During scheduled maintenance or unplanned downtime, experienced maintenance engineers know to inspect the entire drive chain — not just the failed unit.

The KDV1.3-100-220/300-115 power supply module, which feeds the DC bus shared by TDM-series drive modules, is a frequent co-failure component. If the TDM1.2-50-300-W1 has been running under thermal stress, the KDV supply should be inspected for capacitor degradation and output ripple. Similarly, the HVR02.2-W018N regenerative resistor module should be checked for thermal fatigue, as excessive braking energy can accelerate wear across the entire drive cabinet.

On the feedback and control side, the MSK servo motor paired with this drive — commonly MSK050 or MSK071 series — should have its encoder cable and connector integrity verified. A degraded encoder signal is a leading cause of apparent drive faults that are misdiagnosed as module failure. Replacing the TDM1.2-50-300-W1 without inspecting the IKS encoder feedback cable and the INK motor power cable risks repeat failure within weeks.

At the controller level, the CSH01.1C or CSB01.1N control section communicating via SERCOS II should be verified for firmware compatibility with the replacement drive module. In multi-axis cabinets, the ZKB0025-06 SERCOS fiber optic ring cable connecting drive modules should be inspected for bend radius violations or connector contamination, which can cause intermittent communication faults across all axes simultaneously.

For facilities managing aging IndraDrive TDM installations, it is also prudent to maintain spares of the NFD03.1 mains filter module and the HNF01.1 mains choke, both of which protect the drive system from upstream power quality issues. Degraded filtering components can introduce harmonic disturbances that shorten drive module service life — making them a silent contributor to premature TDM failures.

Strategic Replacement Solutions

The Bosch Rexroth IndraDrive TDM series has been in service across global manufacturing facilities for over two decades. Many of these installations remain fully productive, but sourcing original spare modules has become increasingly challenging through standard distribution channels as the product line matures. The TDM1.2-50-300-W1 is a direct-fit replacement for any degraded or failed unit of the same part number — no parameter re-entry, no mechanical modification, and no firmware migration required when replacing like-for-like within the same firmware generation.

For facilities operating mixed-generation IndraDrive cabinets, the TDM1.2-50-300-W1 is also compatible with DIAX04 drive systems in retrofit configurations, providing a cost-effective path to extend the operational life of legacy servo axes without committing to a full drive system upgrade. This compatibility makes it a strategically valuable spare for maintenance teams managing multi-generation equipment fleets.

Planned replacement — scheduling a module swap during a scheduled maintenance window rather than waiting for failure — eliminates the risk of unplanned production stops. A single unplanned stoppage on a high-throughput line typically costs far more than the investment in a verified spare module held in local inventory. TOPNLMS supplies the TDM1.2-50-300-W1 with full pre-shipment functional testing, ensuring that the replacement unit performs to specification from the moment it is installed.

Support FAQ

Q1: What does the 12-month warranty cover?
The 12-month warranty covers all manufacturing defects and functional failures under normal operating conditions. If the module fails to perform to its rated specifications within the warranty period, TOPNLMS will arrange replacement or repair at no additional cost. The warranty period begins from the date of confirmed delivery.

Q2: How is the TDM1.2-50-300-W1 tested before shipment?
Every unit undergoes pre-shipment functional verification, including DC bus voltage response, output current capability check, and communication interface integrity test. Units that do not meet original Bosch Rexroth performance specifications are not shipped. A test report is available upon request for quality-critical procurement processes.

Q3: Is this module compatible with my existing IndraDrive TDM cabinet without firmware changes?
Yes — the TDM1.2-50-300-W1 is a direct like-for-like replacement. When replacing a failed unit of the same part number within the same firmware generation, no parameter re-entry or firmware update is required. For cross-generation compatibility questions, our technical team can advise based on your specific control section firmware version.

Q4: What is your typical lead time and shipping arrangement?
In-stock units are dispatched within 1–3 business days from Xiamen, China. International express shipping (DHL / FedEx) is available with estimated transit times of 3–7 business days to most destinations. For urgent maintenance situations, expedited shipping options are available — contact us directly to confirm availability and arrange priority dispatch.
