Bosch Rexroth DDS02.1-W200-D Replacement for DDS Series

Product Overview

Bosch Rexroth DDS02.1-W200-D Replacement for DDS Series: Smooth Transition & Legacy System Compatibility

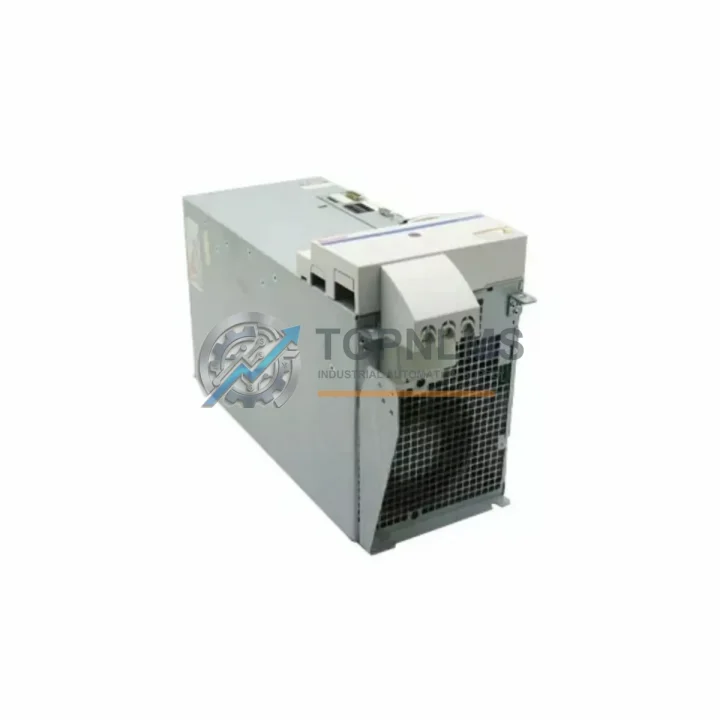

The Bosch Rexroth DDS02.1-W200-D is a high-performance 200A AC Servo Drive from the renowned DDS Series, engineered for precision motion control in demanding industrial automation environments. As legacy DDS Series drives approach end-of-life or become increasingly difficult to source, facilities running Bosch Rexroth DIAX02, DIAX03, or DIAX04 servo systems face mounting pressure to modernize without disrupting production. This product page is dedicated to helping engineers and procurement teams execute a seamless replacement or upgrade to the DDS02.1-W200-D with minimal downtime and maximum confidence.

Whether you are replacing a failed DDS02.1-W150-D or stepping up from a lower-current variant, the DDS02.1-W200-D maintains backward-compatible wiring harness pinouts for the X1 motor power connector and X2 feedback connector, allowing direct substitution in most panel layouts without rewiring the servo cabinet. The drive accepts standard 3-phase 400–480V AC input and delivers up to 200A peak output current, making it suitable for high-torque spindle and axis applications previously served by earlier DDS generation hardware.

Compatibility Comparison Table

Seamless Upgrade Solutions

A successful DDS02.1-W200-D retrofit rarely involves the drive alone. In practice, migration projects on Bosch Rexroth DIAX-based machine tools and production lines require coordinated replacement of several interconnected components. The DST01.1 power supply module and DST01.1 mains filter are commonly upgraded in parallel when the existing DC bus infrastructure no longer meets the higher current demand of the W200-D variant. Engineers should verify that the shared DC bus capacitor bank, typically housed in the HVR02.2 regenerative power supply, is rated for the increased load before commissioning.

On the feedback side, if the existing servo motor uses an older resolver-based encoder, the DSF01.1 feedback module may need to be reconfigured or replaced with a unit supporting EnDat 2.1 protocol to take full advantage of the DDS02.1-W200-D’s high-resolution position loop. For multi-axis gantry or coordinated motion systems, the SERCOS fiber-optic ring cable connecting the CNC controller — often a Bosch Rexroth CSH01 or CSB02 controller card — to each drive node must be inspected for signal integrity, as degraded fiber links are a common source of F2 and F8 fault codes during commissioning.

Panel builders and system integrators should also account for the X14 24VDC control voltage connector and the associated 24V SITOP or equivalent PSU module that powers the drive’s logic board independently of the main bus. In retrofit scenarios where the original control cabinet uses a legacy BTV04 operator terminal or BTA10 programming panel, parameter migration can be performed via the RS-232 service interface using IndraWorks Drive software, eliminating the need for manual re-entry of axis parameters. For facilities transitioning to a fully digital architecture, the Rexroth IndraDrive Cs or IndraDrive Mi platform represents the long-term migration path, though the DDS02.1-W200-D remains the preferred like-for-like replacement where machine re-engineering is not feasible.

Retrofit Guidance FAQ

Q: Can I replace a DDS02.1-W150-D with the DDS02.1-W200-D without rewiring?
A: Yes. The X1 motor power connector and X2 feedback connector pinouts are identical across the DDS02.1 sub-series. No rewiring is required in the servo cabinet. Verify that the motor cable cross-section is rated for 200A continuous if operating at full load.

Q: Is the DDS02.1-W200-D compatible with SERCOS II controllers?
A: Yes. The drive supports both SERCOS I and SERCOS II fiber-optic communication protocols. The SERCOS baud rate and cycle time settings are retained in the drive’s non-volatile parameter memory and can be verified via IndraWorks before installation.

Q: Do I need to re-tune the servo loop after replacement?
A: In most cases, existing axis parameters (Kp, Tn, velocity feed-forward) can be transferred directly from the old drive using the parameter backup function in IndraWorks. Minor re-tuning may be required if the replacement drive’s firmware version differs significantly from the original.

Q: What are the physical space requirements?
A: The DDS02.1-W200-D occupies the same standard DDS chassis width and DIN rail depth as the W150-D and W100-D variants. No panel modification is required for a direct swap. Ensure adequate clearance above and below the drive for cooling airflow (minimum 100mm recommended).

Q: How do I handle the DC bus connection during replacement?
A: Always discharge the DC bus capacitors fully before disconnecting the X3 bus bar connector. Use a calibrated voltmeter to confirm bus voltage is below 50V before proceeding. The DDS02.1-W200-D uses the same X3 bus bar interface as predecessor models.

Q: Can this drive replace a discontinued DDS01.x unit?
A: The DDS02.1-W200-D is not a direct pin-compatible replacement for DDS01.x drives due to differences in the control board connector layout. An adapter harness or minor wiring modification may be required. Contact our technical team for a migration assessment.

Warranty Assurance

Every Bosch Rexroth DDS02.1-W200-D supplied by TOPNLMS is covered by a 12-month warranty from the date of shipment. Prior to dispatch, each unit undergoes a multi-point outgoing inspection including DC bus charge/discharge cycle testing, IGBT gate drive verification, feedback interface continuity check, and firmware version confirmation. Units are shipped in anti-static packaging with foam cushioning to prevent transit damage.

In the event of a warranty claim, TOPNLMS provides a replacement unit dispatch within 3 business days of fault confirmation, with no requirement to return the defective unit before the replacement is shipped — minimizing your production downtime. Our after-sales engineering team is available via email and phone to assist with installation, parameter configuration, and fault diagnosis throughout the warranty period.

For procurement teams requiring documentation, we can provide a test report, certificate of conformity, and packing list with each shipment. Bulk orders of 3 or more units qualify for priority allocation from our bonded warehouse stock in Xiamen, with same-week dispatch available for in-stock items.
