Bosch RACK-GG 500 Original Industrial Spare CL 500

Product Overview

Bosch RACK-GG 500 Original Industrial Spare CL 500: System Stability and Backplane Reliability for Continuous Production

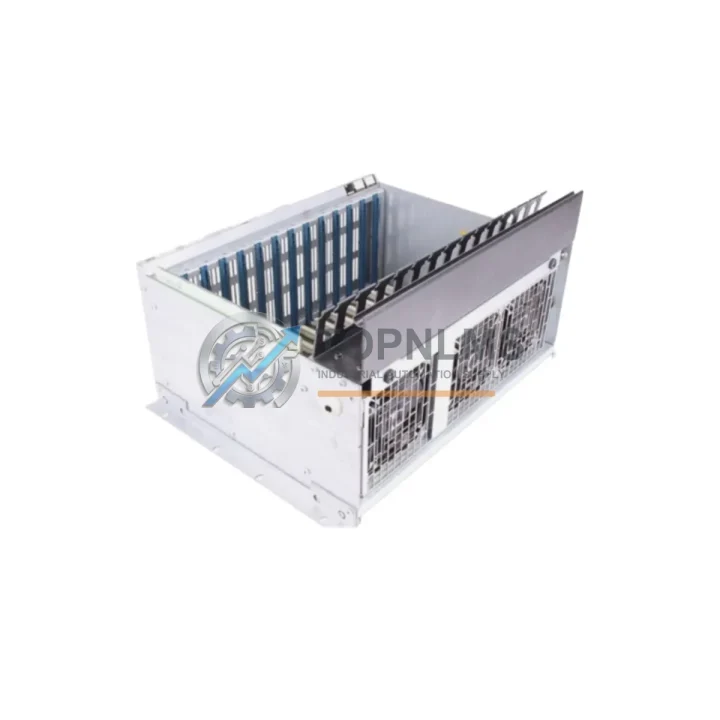

The Bosch RACK-GG 500 is the original 13-slot backplane rack designed for the CL 500 Series programmable logic controller platform — one of Bosch’s most widely deployed industrial automation architectures in manufacturing, automotive assembly, and process control environments. As a structural backbone of the CL 500 control cabinet, the RACK-GG 500 provides the mechanical mounting and electrical interconnection for all installed I/O modules, CPU cards, power supply units, and communication interfaces. Maintaining a verified original spare in your inventory is not a luxury — it is a fundamental requirement for any facility operating CL 500-based control systems where unplanned downtime carries significant production and financial consequences.

When a backplane rack fails — whether due to connector fatigue, thermal stress, vibration damage, or age-related degradation — the entire PLC node becomes inoperable. Unlike a failed I/O module or a blown fuse, a compromised backplane cannot be bypassed or temporarily patched. The only path to restoring system function is direct replacement with a compatible original unit. The RACK-GG 500 is engineered to exact Bosch CL 500 mechanical and electrical tolerances, ensuring that all installed modules seat correctly, bus signals propagate without interference, and the system resumes normal operation immediately after swap-out — without requiring reconfiguration or software changes.

Each RACK-GG 500 unit supplied by TOPNLMS is sourced from verified original Bosch production, inspected prior to dispatch, and covered by a 12-month warranty against manufacturing defects and functional failure. Units are packaged in anti-static protective materials and shipped with full documentation support. Worldwide shipping is available with lead times confirmed at order placement.

Critical Technical Specs

Preventive Maintenance Strategy

A scheduled maintenance program for any CL 500 control cabinet should treat the RACK-GG 500 backplane rack as the central reference point for system health. During planned shutdowns or annual inspections, maintenance engineers should verify that all modules seated in the rack — including the CL 500 CPU module, digital input modules (DI), digital output modules (DO), and analog I/O modules — are firmly engaged and free of connector oxidation. Loose or corroded module connections are a leading cause of intermittent faults that are difficult to diagnose under live production conditions.

The power supply module feeding the CL 500 rack should be tested for output voltage stability and ripple, as degraded power delivery accelerates wear on both the backplane bus and the installed modules. If the facility uses a redundant power supply configuration, both units should be tested independently during the maintenance window. At the same time, the 24VDC field power distribution — typically routed through terminal blocks and fuse modules mounted adjacent to the PLC rack — should be inspected for loose terminations and blown fuse elements.

Communication modules installed in the RACK-GG 500 rack, such as PROFIBUS DP interfaces or Ethernet communication cards, should have their cable connections checked for secure seating and cable integrity. Signal isolators and surge protection devices on field wiring inputs are often overlooked during routine inspections but are critical for protecting the I/O modules from transient damage. Relay output modules should be tested for contact resistance and switching response, particularly in applications with high-cycle-rate outputs.

For facilities managing aging CL 500 installations, it is strongly recommended to maintain a minimum spare inventory that includes: one RACK-GG 500 backplane rack, at least one CPU module of the installed variant, one power supply module, and representative spares for the highest-density I/O module types in use. HMI panels connected to the CL 500 system — whether Bosch-branded operator panels or third-party interfaces — should also be included in the spare parts plan, as HMI failure can halt operator interaction with an otherwise functional PLC system. A well-structured spare parts inventory reduces mean time to repair (MTTR) from hours to minutes.

Strategic Replacement Solutions

The RACK-GG 500 is a direct original replacement for any CL 500 Series installation requiring backplane rack renewal. Because the CL 500 platform has been in service for decades across global manufacturing facilities, many sites are now operating racks that have exceeded their design service life. Visible signs of end-of-life include discoloration of the backplane PCB, physical deformation of module guide rails, intermittent module recognition errors in the CPU diagnostic log, and unexplained system restarts that cannot be attributed to software or field wiring faults.

Replacing the RACK-GG 500 with an original Bosch unit — rather than attempting repair or substituting with a non-original component — preserves full compatibility with all installed CL 500 modules and eliminates the risk of bus timing mismatches or mechanical fit issues that can arise with non-standard alternatives. The replacement procedure does not require changes to the PLC program, I/O addressing, or communication configuration, provided all modules are reinstalled in their original slot positions. This makes the RACK-GG 500 one of the most operationally straightforward major spare parts replacements in the CL 500 system architecture.

For facilities planning a phased modernization rather than a full system migration, maintaining the CL 500 platform with original spare parts — including the RACK-GG 500 — is the most cost-effective strategy for extending system life by 5 to 10 years while deferring the capital expenditure of a full control system upgrade.

Support FAQ

Q1: Is the RACK-GG 500 compatible with all CL 500 Series modules?
Yes. The RACK-GG 500 is the standard backplane rack for the Bosch CL 500 platform and is mechanically and electrically compatible with all CL 500 Series modules, including CPU cards, digital and analog I/O modules, power supply units, and communication interfaces. If you are unsure about compatibility with a specific module variant, contact our technical team with the module part number for confirmation before ordering.

Q2: What pre-shipment testing is performed on the RACK-GG 500?
Each unit undergoes visual inspection for physical integrity, connector pin condition, and PCB surface quality prior to dispatch. Units showing any signs of damage, corrosion, or non-original modification are rejected. All shipped units are covered by a 12-month warranty from the date of delivery, covering manufacturing defects and functional failure under normal operating conditions.

Q3: How should I manage spare backplane rack inventory for a multi-rack CL 500 installation?
For facilities operating two or more CL 500 racks, we recommend maintaining at least one RACK-GG 500 spare per five installed racks, with a minimum of one spare regardless of installation size. Given the lead times associated with sourcing original Bosch CL 500 components, holding a pre-qualified spare on-site is the most reliable way to guarantee rapid recovery from an unplanned backplane failure.

Q4: Can the RACK-GG 500 be installed without powering down the entire control system?
No. Backplane rack replacement requires a full controlled shutdown of the CL 500 system, removal of all installed modules, physical rack replacement, module reinstallation, and system restart. Hot-swap of the backplane rack is not supported by the CL 500 architecture. Plan the replacement during a scheduled maintenance window and ensure all module slot positions are documented before disassembly to guarantee correct reinstallation.
