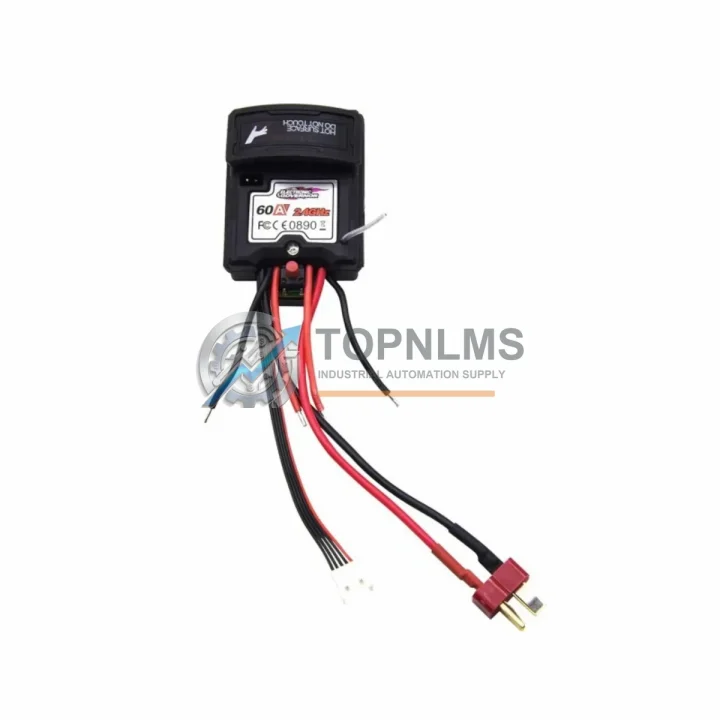

Blomiky ZJBX-17-005 Brushed ESC Replacement for RC Series

Product Overview

Blomiky ZJBX-17-005 Brushed ESC Replacement for RC Series: Seamless Transition & Upgrade Solution

The Blomiky ZJBX-17-005 is a brushed electronic speed controller (ESC) designed as a direct replacement and upgrade solution for RC vehicles in the ZJBX series platform. Whether your original ESC has failed, been discontinued, or you are upgrading from an older Blomiky brushed controller to a more reliable unit, the ZJBX-17-005 delivers a smooth, low-downtime swap with minimal rewiring and no programming changes required in most configurations.

RC hobbyists and fleet operators who rely on Blomiky ZJBX-series trucks, buggies, and crawlers frequently encounter situations where the original speed controller degrades after extended use, water ingress, or thermal stress. The ZJBX-17-005 is engineered to restore full drive performance while maintaining compatibility with the existing motor, receiver, battery pack, and chassis wiring harness found in the ZJBX platform.

Compatibility Comparison Table

Seamless Upgrade Solutions

A successful ESC replacement on the ZJBX platform often involves inspecting and potentially refreshing several adjacent components to ensure the entire drivetrain performs reliably after the swap. During the replacement process, technicians commonly address the brushed DC motor itself — if the motor’s brushes are worn, replacing the ESC alone will not restore full performance. The receiver unit should also be verified for correct PWM output, as a faulty receiver can cause erratic throttle response even with a new ESC installed.

The battery connector and wiring harness between the battery pack and ESC is a frequent failure point; inspecting for frayed insulation or corroded terminals before installing the ZJBX-17-005 prevents repeat failures. If the vehicle uses a NiMH battery pack, confirm the ESC’s low-voltage cutoff is correctly configured; users migrating to a LiPo battery pack should verify the ESC’s LiPo protection mode is enabled to prevent cell damage.

The steering servo draws power through the ESC’s BEC (Battery Eliminator Circuit) output in many ZJBX configurations — confirming the BEC voltage and current rating of the ZJBX-17-005 matches the servo’s requirements avoids servo burnout. For vehicles with a separate receiver battery pack or external BEC module, the wiring sequence should be double-checked against the original schematic before powering up.

Hobbyists performing a full drivetrain refresh alongside the ESC swap often replace the motor pinion gear and inspect the spur gear for wear, since a degraded ESC frequently causes motor overload that accelerates gear wear. The chassis heat sink or ESC mounting plate should be cleaned and re-secured to ensure adequate thermal dissipation for the new unit. Finally, verifying the on/off switch and wiring loom integrity completes a thorough replacement procedure that minimizes the risk of repeat service calls.

Retrofit Guidance FAQ

Q: Do I need to reprogram the ZJBX-17-005 after installation?
A: In most ZJBX platform configurations, no reprogramming is required. The ESC uses standard PWM input from the receiver and will calibrate throttle endpoints automatically on first power-up using the standard set-point procedure (full throttle → neutral → full brake with transmitter).

Q: Is the wiring connector plug-and-play with my existing harness?
A: The ZJBX-17-005 uses the same connector standard as the original ZJBX series ESC. In most cases, the motor leads and battery leads connect directly without soldering. Verify polarity before powering on.

Q: Will this ESC fit in the original chassis ESC bay?
A: Yes. The ZJBX-17-005 is dimensioned to fit the standard ZJBX chassis ESC mounting slot. Secure with the original mounting screws or double-sided foam tape as used on the factory unit.

Q: Can I use this ESC with a LiPo battery instead of NiMH?
A: The ESC supports both NiMH and LiPo chemistries. When using LiPo, ensure the low-voltage cutoff (LVC) is set to the appropriate per-cell threshold (typically 3.0–3.2V per cell) to protect the battery pack from over-discharge.

Q: What should I check if the motor runs in only one direction after replacement?
A: Swap any two of the three motor leads (for brushed motors, swap the two motor output wires). This reverses motor direction without any programming changes.

Q: My original ESC had a different current rating. Is the ZJBX-17-005 compatible?
A: Confirm the continuous and burst current ratings against your motor’s stall current. Using an ESC with a lower rating than the motor’s peak draw will cause thermal shutdown or permanent damage. Contact us at [email protected] with your motor specifications for confirmation.

Warranty Assurance

Every Blomiky ZJBX-17-005 unit shipped from TOPNLMS is covered by a 12-month warranty from the date of delivery. Prior to dispatch, each unit undergoes a functional bench test to verify signal response, motor output, and BEC voltage output. Units that do not pass inspection are not shipped.

In the event of a warranty claim, TOPNLMS provides a replacement unit or full refund depending on the nature of the defect and elapsed warranty period. Warranty claims are processed within 3–5 business days of receiving the returned unit. Shipping costs for warranty returns are covered by TOPNLMS for confirmed manufacturing defects.

Our after-sales support team is available via email at [email protected] or by phone at +86 18359293191 for pre-purchase compatibility questions, installation guidance, and post-sale technical support. We maintain stock of the ZJBX-17-005 to support rapid dispatch, with most orders shipped within 1–2 business days from our Xiamen warehouse.

Purchasing the ZJBX-17-005 from TOPNLMS includes access to our technical support team for the full warranty period, ensuring your RC vehicle is back in operation with minimal downtime and full confidence in the replacement component.
