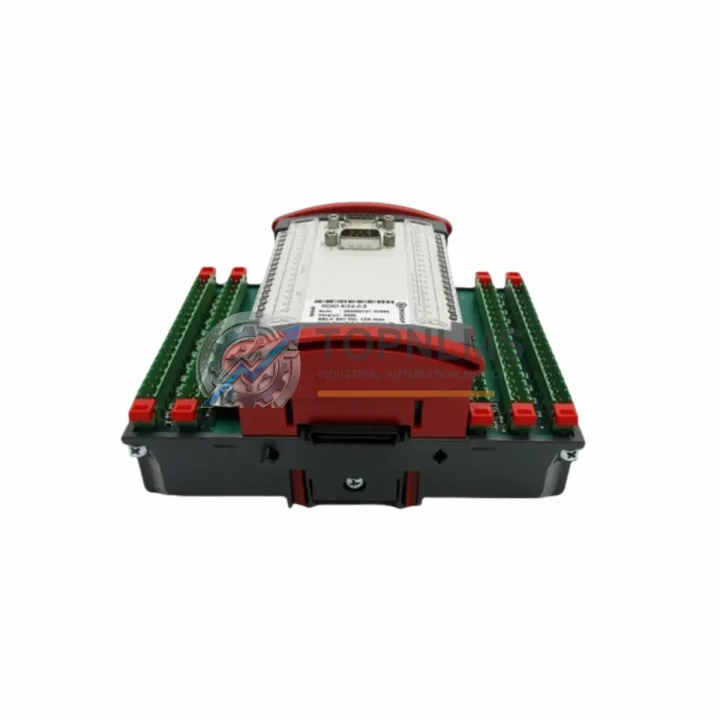

BERGHOF RDIO82405 Original Industrial Spare EC Series Compatible

Product Overview

BERGHOF RDIO82405 Original Industrial Spare EC Series Compatible: System Stability Through Verified Spare Parts

In industrial automation environments, the reliability of every field-level component directly determines the uptime of the entire production line. The BERGHOF RDIO82405 — part of the proven EC Series remote I/O platform — is a critical digital input/output module deployed across distributed control architectures in manufacturing, process automation, and machine building. When this module fails or degrades, the consequences extend far beyond a single I/O channel: entire PLC scan cycles can be disrupted, safety interlocks may become unreliable, and unplanned downtime costs accumulate rapidly.

Sourcing an original, specification-matched replacement is not merely a procurement decision — it is a system stability decision. The RDIO82405 offered here is a genuine BERGHOF original spare, fully compatible with EC Series control cabinets and validated for direct drop-in replacement without firmware reconfiguration or hardware adaptation.

Critical Technical Specs

Preventive Maintenance Strategy

Replacing the RDIO82405 is rarely an isolated task. In practice, a field technician arriving at a control cabinet to swap a failed remote I/O module will encounter an ecosystem of interdependent components — each of which deserves inspection during the same maintenance window. Failing to assess adjacent components during a planned replacement is one of the most common causes of repeat callouts and secondary failures within 30–90 days.

When servicing the RDIO82405, begin by verifying the integrity of the 24 VDC power supply module feeding the remote I/O rack. A degraded power supply operating near its current limit is a frequent root cause of intermittent I/O faults that are misdiagnosed as module failures. If the power supply shows ripple voltage or thermal stress marks, replace it concurrently.

Next, inspect the field wiring terminal blocks and I/O connector assemblies at the module interface. Loose or corroded terminals in a 24 VDC digital circuit can cause signal dropout that mimics module failure. Torque all terminals to specification and apply contact protection spray where moisture ingress is a risk.

The communication bus coupler or fieldbus gateway connecting the EC Series remote I/O rack to the main PLC or DCS should also be checked. Modules such as BERGHOF EC Series bus couplers (e.g., ECIO series gateway modules) manage the data exchange between the remote rack and the controller backplane. A degraded coupler can cause the entire I/O rack to drop off the network, making individual module replacement ineffective.

For installations where the RDIO82405 handles safety-relevant signals, verify the upstream safety relay modules and signal isolators in the same circuit. Signal isolators protect the PLC input cards from field-side voltage transients; if the RDIO82405 failed due to an overvoltage event, the isolators in the same loop may have absorbed damage as well.

During the same cabinet inspection, assess the condition of fuse modules and circuit protection blocks on the 24 VDC distribution rail. A blown or weakened fuse protecting the I/O supply is often overlooked when attention is focused on the module itself. Replace any fuse that shows discoloration or has operated near its rated current for extended periods.

If the control system includes an HMI panel communicating with the same PLC that manages this remote I/O node, verify that the HMI is correctly reflecting I/O status after module replacement. Communication timeouts between the HMI and the controller can persist after a module swap if the PLC program requires a cold restart to re-initialize the I/O map.

Finally, review the controller backplane or CPU module event logs for any recurring I/O bus errors logged prior to the RDIO82405 failure. Persistent bus errors may indicate a systemic issue — such as excessive cable length, improper termination resistors on the fieldbus segment, or EMI interference from adjacent variable frequency drives — that will cause the replacement module to fail prematurely if not addressed.

A disciplined preventive maintenance approach — inspecting power supplies, bus couplers, terminal blocks, fuse modules, signal isolators, safety relays, and HMI communications during every remote I/O replacement — dramatically reduces the probability of repeat failures and extends the operational life of the entire control system.

Strategic Replacement Solutions

Legacy BERGHOF EC Series installations represent a significant installed base in European and Asian manufacturing facilities. Many of these systems were commissioned in the 2000s and 2010s and remain in active production service, supported by a combination of original spare parts and careful maintenance. The RDIO82405 is a key component in sustaining these systems without the cost and risk of a full control system migration.

Replacing an aging or failed RDIO82405 with a genuine original spare — rather than an unverified aftermarket substitute — preserves the electrical and communication compatibility that the original system integrator designed around. Aftermarket alternatives may differ in input impedance, output switching characteristics, or bus protocol timing in ways that are not immediately apparent during bench testing but manifest as intermittent faults under production load conditions.

For facilities managing multiple EC Series remote I/O nodes across a plant floor, a strategic approach to spare parts inventory is strongly recommended. Holding one or two RDIO82405 units as on-site cold spares reduces mean time to repair (MTTR) from days — the typical lead time for emergency procurement — to under one hour. This single inventory decision can prevent production losses that far exceed the cost of the spare parts themselves.

For older installations where the RDIO82405 is approaching end-of-life based on operating hours or thermal cycling history, proactive replacement during a scheduled maintenance shutdown — rather than waiting for in-service failure — is the most cost-effective strategy. Planned replacement eliminates the premium costs of emergency freight, overtime labor, and unplanned production downtime.

All units shipped from TOPNLMS are tested for electrical continuity, channel functionality, and communication interface integrity prior to dispatch. Each module is packaged in anti-static protective materials and accompanied by documentation confirming the 12-month warranty coverage.

Support FAQ

Q1: Is this RDIO82405 a genuine BERGHOF original spare or an aftermarket replacement?
This is a genuine BERGHOF original spare part. It is not an aftermarket reproduction or remanufactured unit. The module is sourced from authorized industrial supply channels and is fully compatible with EC Series control systems as originally specified by BERGHOF Automation GmbH.

Q2: What does the 12-month warranty cover, and how is a warranty claim processed?
The 12-month warranty covers manufacturing defects and functional failure under normal operating conditions, including channel output failure, communication interface faults, and power supply input failures attributable to the module itself. Warranty claims are initiated by contacting TOPNLMS directly at [email protected] with the order reference and a description of the fault. Replacement or refund is processed within the warranty period from the date of shipment.

Q3: How do I verify compatibility before installation?
Confirm that your existing installation uses the BERGHOF EC Series remote I/O platform and that the failed module carries the part number RDIO82405 or RDIO 8/24-0.5. Check the bus coupler type and fieldbus protocol in use (e.g., PROFIBUS, CANopen, or proprietary EC bus) to ensure the replacement module matches the communication configuration. If you require pre-purchase compatibility verification, contact our technical team with your system configuration details.

Q4: What pre-shipment testing is performed on each unit?
Each RDIO82405 unit undergoes electrical continuity testing across all 8 I/O channels, 24 VDC power input verification, and communication interface functional testing prior to packaging. Units that do not pass all test criteria are not shipped. Test records are retained internally and can be referenced in the event of a warranty claim.
