BERGER LAHR TLD012F 63401200001 Replacement Solution: Seamless Transition from Legacy TLD Series Power Supply

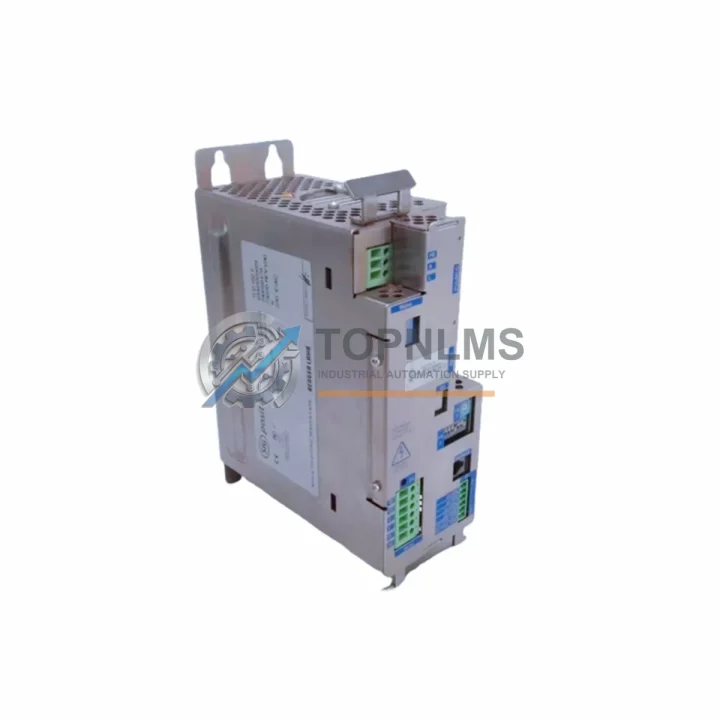

The BERGER LAHR TLD012F (part number 63401200001) is a 24VDC industrial power supply module originally designed for use within BERGER LAHR’s TLD Series motion control and stepper drive systems. As this model has reached end-of-life and is no longer in active production, many facilities running legacy BERGER LAHR WDP, SDD, or RDM series stepper drive cabinets are now facing urgent replacement decisions. TOPNLMS supplies verified TLD012F units sourced from authorized channels, enabling engineers and procurement teams to restore system uptime without redesigning their control architecture.

Compatibility Comparison Table

Seamless Upgrade Solutions

Replacing the TLD012F is rarely an isolated task. In most TLD Series control cabinets, the power supply module works in close coordination with other components that may also require attention during a retrofit or modernization project. Engineers performing a full system audit typically inspect the BERGER LAHR WDP3-007 stepper drive module alongside the power supply, since both share the same 24VDC bus and a failing supply often stresses the drive’s internal regulation circuits. Where the original cabinet included a BERGER LAHR SDD stepper drive or an RDM positioning module, these units draw directly from the TLD012F output rail and should be tested for voltage tolerance before the new supply is commissioned.

For facilities integrating the TLD Series into a broader PLC-controlled architecture — for example, a Siemens S7-300 or S7-400 CPU rack managing multi-axis motion — the 24VDC supply feeds not only the drives but also the I/O terminal modules and signal conditioning cards mounted in the same cabinet. A BERGER LAHR IFS interface module or a compatible Weidmüller signal isolator may be present in the wiring chain; these should be verified for input voltage range compatibility when the new TLD012F is installed. Similarly, if the system uses a BERGER LAHR programming interface or a legacy RS-232 / RS-485 communication adapter for drive parameterization, the supply voltage stability directly affects communication reliability and should be confirmed with a calibrated meter before returning the machine to production.

In modernization projects where the end goal is migrating from the TLD Series to a current-generation platform — such as a Schneider Electric Lexium 32 servo drive or a SEW-EURODRIVE MOVITRAC frequency inverter — the TLD012F replacement serves as a bridge solution, keeping the existing line running while the new control architecture is engineered, tested, and validated in parallel. This approach minimizes unplanned downtime and allows maintenance teams to schedule the full cutover during a planned shutdown window rather than responding to an emergency failure.

Retrofit Guidance FAQ

Q: Can I reuse the existing wiring harness when installing the TLD012F replacement?
A: Yes. The TLD012F 63401200001 uses the same terminal block layout as the original module. No rewiring is required in standard TLD Series cabinet configurations. Verify wire gauge and torque specifications against the original BERGER LAHR installation manual before tightening.

Q: Does the replacement module require any parameter changes in the connected stepper drives?
A: No drive re-parameterization is needed for a like-for-like power supply replacement. The TLD012F provides the same 24VDC output characteristics. If the connected WDP or SDD drives were previously operating at the edge of their input voltage tolerance due to a degraded supply, a fresh module may slightly alter motor behavior — a brief test run at reduced load is recommended before full production restart.

Q: Is the TLD012F compatible with both single-phase and three-phase input configurations?
A: The TLD012F is designed for the input voltage range specified in the BERGER LAHR TLD Series technical documentation. Confirm your cabinet’s incoming supply voltage against the module’s rated input before installation. Contact TOPNLMS if you require clarification on input voltage compatibility for your specific installation.

Q: How do I verify the module is functioning correctly after installation?
A: After installation, measure the output voltage at the terminal block under no-load and full-load conditions. Confirm the 24VDC output is within ±2% tolerance. Then power up the connected stepper drives sequentially and verify that the BERGER LAHR drive status indicators show normal operation before enabling motion commands from the PLC.

Q: What if my cabinet uses a different BERGER LAHR power supply model alongside the TLD012F?
A: Mixed-supply cabinets are common in multi-axis TLD Series installations. Each supply module operates independently on its own output rail. Replacing the TLD012F does not affect adjacent supply modules. Ensure the replacement module’s output is isolated from other rails during installation to prevent cross-feed conditions.

Warranty Assurance

Every BERGER LAHR TLD012F 63401200001 unit shipped by TOPNLMS is covered by a 12-Month Warranty from the date of delivery. Prior to dispatch, each module undergoes a functional output voltage test and visual inspection to confirm it meets the original BERGER LAHR specification. Units are packed in anti-static protective packaging with foam cushioning to prevent transit damage.

If a unit develops a fault within the warranty period under normal operating conditions, TOPNLMS will arrange a replacement or repair at no additional cost. Our after-sales response target is within 24 business hours of a warranty claim submission. Replacement units are dispatched from our Xiamen warehouse, with DHL Express, FedEx, and UPS options available for international orders requiring fast turnaround.

For procurement teams requiring documentation, TOPNLMS can provide a test report, packing list, and commercial invoice with HS code declaration for customs clearance. Bulk orders of 3 or more units qualify for priority allocation from reserved stock. Contact our sales team to discuss lead times, volume pricing, and consignment stocking arrangements for maintenance-critical applications.
