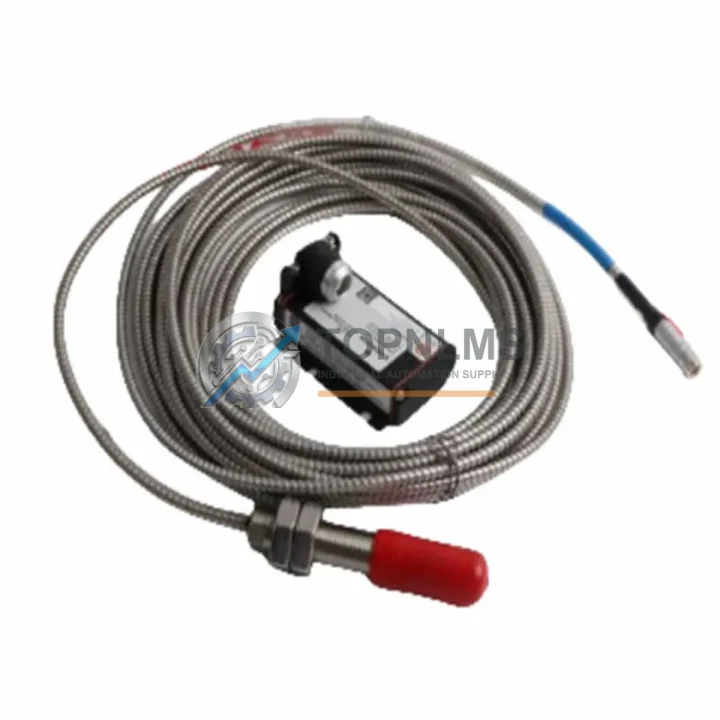

Bently Nevada PR6423/13R-040 CON021 Original Industrial Spare 3300 XL Compatible: System Stability Through Verified Spare Parts

In continuous-process industries — petrochemical, power generation, pulp and paper, steel, and heavy manufacturing — rotating machinery health is the backbone of production uptime. The Bently Nevada PR6423/13R-040 CON021 proximity probe is a precision eddy current sensing element engineered for the 3300 XL Eddy Current System, one of the most widely deployed vibration and position monitoring platforms in the world. Sourced as an original spare, this probe delivers the measurement accuracy, signal integrity, and long-term reliability that maintenance engineers depend on when every hour of unplanned downtime carries significant financial and safety consequences.

Whether you are responding to an active fault alarm, executing a scheduled turnaround, or building a strategic spare parts inventory, the PR6423/13R-040 CON021 is a direct, drop-in replacement that preserves full compatibility with your existing 3300 XL monitor racks, extension cables, and signal conditioning modules — without requiring recalibration of the entire measurement chain.

Critical Technical Specs

Preventive Maintenance Strategy

A proximity probe replacement is rarely an isolated event. The PR6423/13R-040 CON021 sits at the front end of a measurement chain that spans from the rotating shaft all the way to the control room DCS or safety system. When a probe is found to be out of specification — whether due to cable damage, connector corrosion, tip wear, or drift in gap voltage — experienced maintenance teams treat the event as a trigger for a broader inspection of the entire vibration monitoring loop.

Begin with the extension cable (typically a 3300 XL–compatible 5 m or 9 m armored cable such as the 330130 series). Extension cables are subject to mechanical stress at conduit entry points and connector pins, and a degraded cable will introduce noise or offset errors even with a new probe installed. Inspect the cable jacket, verify continuity, and check the connector pins for oxidation before closing the junction box.

Next, verify the proximitor / driver module — in the 3300 XL architecture, this is typically a 3300/16 RAM or equivalent signal conditioning card seated in the monitor rack. A faulty driver will produce incorrect gap voltage readings and may cause nuisance trips even after a probe swap. If the driver has been in service for more than five years in a high-vibration or high-temperature environment, consider stocking a replacement driver card alongside the probe.

While the monitor rack is open, inspect the 3300 XL monitor cards themselves — including the I/O module, power supply module, and any relay output cards. Loose backplane connectors and degraded power rails are a common source of intermittent alarms that are often misattributed to probe failure. Check the rack power supply output voltage and ripple, and confirm that all card edge connectors are fully seated.

For machines equipped with both radial and axial measurement, the axial probe (often a PR6424 or PR6426 series) and its associated thrust position monitor channel should be verified at the same time. Differential expansion and axial position measurements are safety-critical on steam turbines and large compressors; a single missed calibration point can mask a developing thrust bearing failure.

Terminal blocks and field junction boxes are another area that rewards attention during a probe replacement outage. Corroded terminals, loose wire ferrules, and moisture ingress in the junction box can introduce ground loops that corrupt the –24 VDC measurement circuit. Clean and re-torque all terminals, apply dielectric grease to connector interfaces, and verify that the junction box drain plug is functional.

If the machine is part of a Bently Nevada 3500 Series protection system, confirm that the 3500/42M or 3500/40M monitor module is configured for the correct probe type and gap voltage range after the replacement. A probe swap without a corresponding configuration verification is a common source of post-maintenance trips during restart.

Finally, for facilities running legacy 3300 Series (non-XL) monitors alongside newer 3300 XL racks, this is an appropriate time to assess whether a rack upgrade or parallel redundancy configuration is warranted. Mixing probe generations across a single machine train can complicate alarm setpoint management and spare parts standardization.

Strategic Replacement Solutions

The PR6423/13R-040 CON021 is a direct replacement for any PR6423/13R-040 CON021 probe currently installed in a 3300 XL system — no firmware changes, no recalibration of the monitor card, and no modification to the existing mounting bracket or conduit run. The 4.0 m integral cable length matches the most common field installation geometry for mid-size turbomachinery and motor-driven compressors.

For facilities that have been operating with older PR6422 or PR6424 probes on the same machine train, the PR6423/13R series offers an opportunity to standardize the spare parts inventory around a single probe family, reducing the number of unique line items held in the MRO store and simplifying technician training. The 13 mm tip diameter is compatible with the majority of OEM probe brackets used on GE, Siemens, MAN, and Solar Turbines equipment.

Procurement teams managing multi-site operations will find that stocking the PR6423/13R-040 CON021 as a common spare across multiple machine trains — rather than maintaining machine-specific probe kits — reduces total inventory carrying cost while improving first-time fix rates during unplanned outages. A recommended minimum stock level is two probes per machine train for critical service, with a reorder point triggered at one unit remaining.

All units shipped from TOPNLMS are tested for gap voltage output, cable continuity, and connector integrity prior to dispatch. Each probe is packaged in anti-static, moisture-resistant packaging with a serialized test record. Lead time for in-stock units is typically 1–3 business days for international express shipment.

Support FAQ

Q1: Is the PR6423/13R-040 CON021 compatible with both 3300 XL and 3500 Series monitors?
The PR6423/13R-040 CON021 is natively designed for the 3300 XL Eddy Current System. It can be used with 3500 Series monitors when paired with the appropriate 3500-series proximitor driver module configured for the PR6423 probe family. Always verify the driver module part number and configuration before installation in a 3500 rack.

Q2: What pre-shipment testing is performed on each unit?
Every PR6423/13R-040 CON021 unit undergoes gap voltage output verification, cable continuity testing, and connector pin inspection before dispatch. A serialized test record accompanies each shipment. The 12-month warranty covers manufacturing defects and signal performance deviations from published specifications.

Q3: How do I verify the correct gap voltage after installation?
With the machine at rest and the probe installed at the OEM-specified gap (typically 1.0–1.5 mm for a 13 mm probe on a 4140 steel shaft), measure the DC output voltage at the proximitor output terminals. The nominal output should be approximately –10.5 VDC to –11.5 VDC at the center of the linear range. Consult the 3300 XL installation manual (Bently Nevada document 141078-01) for target gap voltage by probe series.

Q4: What is the recommended spare parts strategy for a critical turbomachine?
