Bently Nevada CB2W100-200 Ruggedized Interconnect Cable

Product Overview

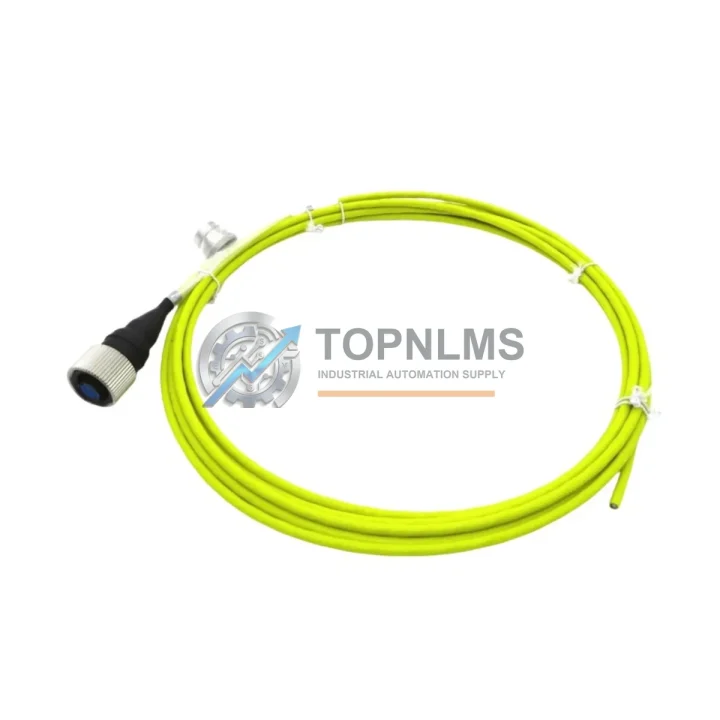

Bently Nevada CB2W100-200 Ruggedized Interconnect Cable: Industrial Resilience for Harsh Environments

The Bently Nevada CB2W100-200 is a precision-engineered, shielded interconnect cable purpose-built for the Bently Nevada 3500 Series Proximitor/Seismic Monitor platform — one of the most widely deployed machinery protection and condition monitoring systems in heavy industry worldwide. Designed to operate reliably in environments characterized by extreme temperature fluctuations, high humidity, pervasive dust, mechanical vibration, and intense electromagnetic interference (EMI), this cable is a mission-critical component wherever continuous uptime is non-negotiable.

In rotating machinery protection applications — including gas turbines, steam turbines, compressors, pumps, and large electric motors — signal integrity between the proximity probe and the Proximitor sensor is paramount. The CB2W100-200 delivers exactly that: a low-capacitance, double-shielded coaxial construction that preserves the millivolt-level eddy-current signals generated by the 3300 XL 8mm or 3300 XL 11mm proximity probe assemblies, ensuring that the 3500/40M Proximitor/Seismic Monitor module receives clean, accurate vibration and position data at all times.

In oil and gas facilities, petrochemical plants, and offshore platforms where classified hazardous areas (Zone 1/Zone 2 or Division 1/Division 2) demand intrinsically safe signal paths, the CB2W100-200’s shielded architecture supports compliance with the overall 3500 Series safety-rated system design. When paired with the Bently Nevada 3500/22M Transient Data Interface, the 3500/42M Proximitor/Seismic Monitor, or the 3500/15 Power Supply, the cable maintains the galvanic isolation and signal fidelity required for SIL-rated machinery protection loops.

Beyond signal integrity, the CB2W100-200 is engineered for mechanical durability. Its ruggedized outer jacket resists abrasion, chemical exposure, and UV degradation — essential qualities in mining operations, metal smelting facilities, cement plants, and water treatment infrastructure where cables are routed through cable trays, conduit, and junction boxes exposed to aggressive industrial atmospheres. The cable’s flexibility also facilitates installation in confined machinery spaces without compromising the shield continuity that protects against ground loops and radiated EMI from variable frequency drives (VFDs), large motor starters, and high-voltage switchgear operating in the same control cabinet or field environment.

For facilities running integrated condition monitoring architectures, the CB2W100-200 is a direct interface component between field-mounted proximity probes and rack-mounted monitoring modules such as the 3500/60 Temperature Monitor, 3500/70M Process Variable Monitor, and the System 1 condition monitoring software platform. Maintaining the correct cable type and length — as specified by the Bently Nevada system configuration — is essential to preserve the calibrated gap voltage and scale factor of the overall measurement chain. Substituting non-OEM cables risks introducing capacitance mismatches that degrade alarm accuracy and can trigger nuisance trips on critical machinery.

In power generation plants, the CB2W100-200 is routinely deployed on steam turbine shaft monitoring systems alongside the Bently Nevada 3500/25 Enhanced Keyphasor Module and 3500/45 Position Monitor, providing the interconnect backbone for differential expansion, eccentricity, and thrust position measurements. These measurements feed directly into turbine protection logic, making the reliability of every cable in the signal chain a plant safety matter, not merely a maintenance concern.

From a procurement standpoint, sourcing a genuine, tested CB2W100-200 from a reliable industrial automation supplier eliminates the risk of counterfeit or degraded cables entering safety-critical measurement loops. At TOPNLMS, every CB2W100-200 unit is inspected and function-tested prior to shipment. Stock is maintained to support both planned maintenance shutdowns and emergency spare-parts requirements, with fast international shipping from Xiamen, China to customers in Southeast Asia, the Middle East, Europe, and the Americas.

Rugged Specifications Table

Comprehensive Protection Solutions

The CB2W100-200 does not operate in isolation — it is one link in a tightly integrated machinery protection chain. In a typical 3500 Series rack installation, the cable connects field-mounted proximity probes to the Bently Nevada 3500/40M Proximitor/Seismic Monitor, which processes vibration, position, and speed signals before passing alarm and trip outputs to the plant’s safety instrumented system (SIS) or distributed control system (DCS). The rack itself is powered by the 3500/15 Power Supply Module, which provides regulated, isolated DC power to all monitor modules — making power supply integrity as critical as cable integrity for overall system reliability.

For facilities requiring phase reference and speed measurement, the Bently Nevada 3500/25 Enhanced Keyphasor Module works in conjunction with the proximity probe and interconnect cable to deliver once-per-revolution timing signals essential for vector filtering and balancing analysis. Thrust position and differential expansion measurements — common in steam and gas turbine applications — rely on the 3500/45 Position Monitor, which similarly depends on low-noise interconnect cables to maintain measurement accuracy within ±0.1 mm over the full operating range.

In facilities where temperature monitoring complements vibration surveillance, the 3500/60 Temperature Monitor and 3500/70M Process Variable Monitor share the same 3500 rack backplane, with all field signals routed through appropriately shielded cables to prevent cross-talk. The 3500/22M Transient Data Interface captures high-resolution waveform data for post-event analysis, a function that is only meaningful when the signal path — including the CB2W100-200 interconnect — maintains full bandwidth and shield integrity throughout the measurement chain.

For customers building or maintaining complete 3500 Series racks, TOPNLMS also stocks related components including the Bently Nevada 3500/01 Rack Interface Module, 3500/05 System Rack chassis, and various 3300 XL Series proximity probe assemblies — enabling single-source procurement for planned maintenance outages or emergency replacements.

Application in Critical Infrastructure

The Bently Nevada CB2W100-200 is deployed across the full spectrum of critical industrial infrastructure. In oil and gas upstream and midstream facilities, it forms part of the compressor and turbine protection systems that safeguard against catastrophic mechanical failure in environments where unplanned downtime carries both safety and financial consequences measured in millions of dollars per day. Offshore platforms present particularly demanding conditions — salt-laden air, constant vibration from wave action and rotating machinery, and strict weight and space constraints — all of which the CB2W100-200’s ruggedized construction is designed to withstand.

In power generation, both gas-fired combined-cycle plants and coal-fired steam plants rely on 3500 Series systems to protect their turbine-generator sets. The interconnect cable must maintain signal integrity across the full load cycle, from cold startup through full-load operation at elevated bearing temperatures and shaft speeds. Mining and mineral processing operations deploy the 3500 Series on large grinding mills, conveyor drives, and slurry pumps, where the cable must resist abrasive dust ingress and the mechanical shock transmitted through the structure during blasting and heavy crushing operations.

Water and wastewater treatment facilities use the 3500 Series to monitor large centrifugal pumps and blowers, where the CB2W100-200 must perform reliably in high-humidity environments with potential exposure to corrosive gases. In metallurgy and steel production, the cable operates near induction furnaces and rolling mills where electromagnetic interference levels are among the highest found in any industrial environment — a direct test of the double-shield construction’s effectiveness. Across all these sectors, the CB2W100-200 represents a low-cost, high-consequence component: its failure can compromise the integrity of the entire machinery protection system, making reliable sourcing and pre-shipment testing non-negotiable.
