Bently Nevada CB2W100-125 Replacement for 3500 Series

Product Overview

Bently Nevada CB2W100-125 Replacement for 3500 Series: Seamless Transition & Compatibility Upgrade

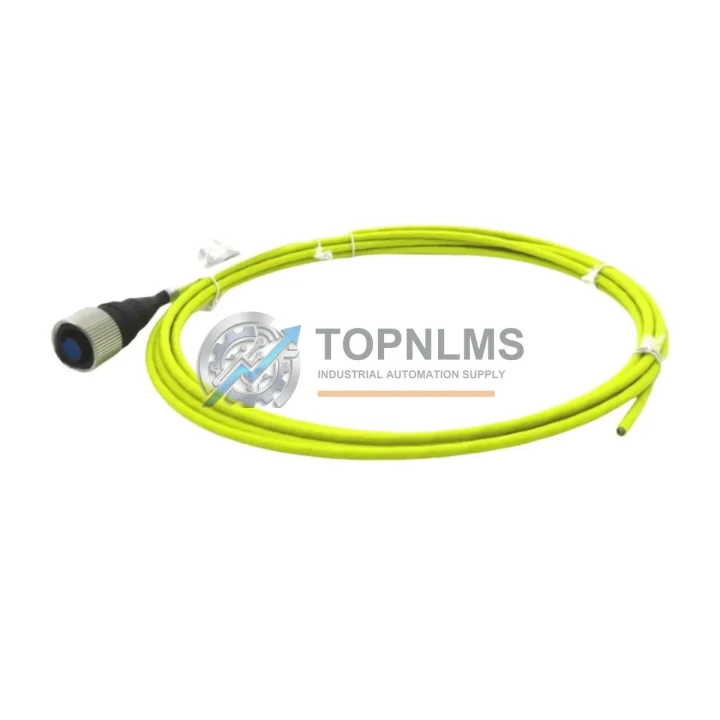

The Bently Nevada CB2W100-125 is a precision interconnect cable engineered for the 3500 Series Machinery Protection System, serving as the critical signal link between proximity transducer assemblies and the 3500 rack-mounted monitoring modules. As legacy installations age and original cables reach end-of-service life, facilities managing rotating machinery — turbines, compressors, pumps, and gearboxes — increasingly require verified replacement or upgrade solutions that preserve system integrity without triggering full platform migrations.

At TOPNLMS, we supply the CB2W100-125 as a direct replacement component for existing 3500 Series installations. Whether your plant is replacing a degraded cable on a live monitoring loop, commissioning a spare-parts inventory for a critical asset, or executing a phased modernization of an older Bently Nevada system, this cable is stocked, tested, and ready for immediate dispatch.

The CB2W100-125 is a 2-wire, 100-ohm, 125-inch (approximately 3.175 m) interconnect cable designed to carry the raw proximity signal from an 3300 XL or 3300 NSv proximity transducer to the 3500/40M or 3500/42M position and velocity monitor modules. Its shielded construction suppresses electromagnetic interference common in motor control centers and switchgear rooms, ensuring signal fidelity across the full measurement range. The cable’s connector terminations are keyed to mate directly with the transducer extension cable and the front-panel I/O connectors on the 3500 rack, eliminating field-wiring ambiguity during replacement.

When upgrading from earlier Bently Nevada platforms — such as the 7200 Series or 3300 Series standalone monitors — to the 3500 rack architecture, the CB2W100-125 is a standard bill-of-materials item. Integrators transitioning from the 3300/16 dual-channel monitor or the 3300/55 temperature monitor to the consolidated 3500 rack typically retain the existing transducer field wiring and replace only the interconnect and extension cables to match the new module’s input impedance and connector format. This approach minimizes conduit rework and preserves the original sensor mounting positions, significantly reducing installation downtime.

For facilities running mixed fleets — where some machines remain on the 3500/22M transient data interface or the 3500/92 communication gateway while others are being migrated — the CB2W100-125 supports a phased replacement strategy. Maintenance teams can swap cables machine by machine during scheduled outages rather than executing a full-plant cutover, keeping the majority of the monitoring network live throughout the migration period.

Power supply compatibility is straightforward: the 3500 rack accepts 24 VDC or 115/230 VAC via the 3500/15 power supply module, and the CB2W100-125 operates within the rack’s internal signal bus without requiring any additional field power. This is a notable advantage over older standalone monitors that required individual power feeds to each channel card, simplifying the control cabinet layout and reducing terminal block count in the marshalling panel.

Communication protocol continuity is preserved when using this cable in conjunction with the 3500/92 Ethernet communication module or the 3500/93 Modbus communication module. The proximity signal processed through the CB2W100-125 feeds directly into the monitor module’s DSP chain, and the resulting dynamic data — gap voltage, 1X amplitude, 2X amplitude, and overall vibration — is available on the rack’s backplane for transmission via Modbus RTU, Modbus TCP, or OPC-DA to the plant DCS or SCADA historian. No protocol conversion or signal conditioning is required at the cable level.

Physical installation is equally straightforward. The CB2W100-125’s 125-inch length accommodates the typical separation between a machine’s bearing housing and the nearest 3500 rack enclosure in standard turbine control cabinets. For installations where the rack is mounted remotely — such as in a satellite instrument cabinet more than 10 meters from the machine — extension cables such as the 330130 series extension cable can be spliced upstream of the CB2W100-125 without affecting signal quality, provided total cable capacitance remains within the transducer driver’s specification.

Spare-parts planning for 3500 Series installations should include the CB2W100-125 alongside other high-turnover consumables: the 3500/05 system rack backplane connectors, the 330180 proximity transducer tip assemblies, and the 3500/20 keyphasor module for phase-reference measurements. Stocking a minimum of two CB2W100-125 cables per critical machine loop is a widely adopted practice in petrochemical and power generation facilities operating under API 670 machinery protection standards.

All CB2W100-125 units supplied by TOPNLMS are sourced from authorized distribution channels, individually inspected for connector integrity and cable continuity, and shipped with a 12-month warranty covering manufacturing defects and signal performance. Units are packaged in anti-static, moisture-resistant packaging suitable for long-term spare-parts storage in plant warehouses.

Compatibility Comparison Table

Seamless Upgrade Solutions

A successful migration to or within the Bently Nevada 3500 platform rarely involves a single cable. In practice, the CB2W100-125 is deployed alongside a coordinated set of components that together deliver a complete, validated monitoring loop. During rack commissioning or machine-by-machine retrofit, engineers typically install the 3500/40M position monitor module or 3500/42M velocity monitor module as the primary signal processor, with the CB2W100-125 serving as the final link between the field transducer and the module’s front-panel input. The 3300 XL 8mm proximity transducer and its associated 330130 extension cable remain in place at the machine, preserving the existing sensor mounting and conduit runs.

For installations requiring phase-reference data — essential for 1X/2X vector analysis on turbines and compressors — the 3500/20 keyphasor module is installed in the same rack, with its own dedicated interconnect cable routed from the keyphasor transducer. The 3500/05 system rack provides the backplane infrastructure that ties all modules together, while the 3500/15 power supply module delivers regulated DC power to the entire assembly, eliminating the individual power feeds required by older standalone monitors.

Data integration with the plant DCS or SCADA system is handled by the 3500/92 Ethernet communication module, which supports OPC-DA and Modbus TCP, or the 3500/93 Modbus communication module for legacy serial networks. In facilities where the historian or DCS uses a different protocol, a signal isolator or protocol converter may be inserted between the 3500 rack output and the plant network — a common requirement when migrating from older Bently Nevada systems that used proprietary TDXnet or System 1 communication architectures. Throughout this process, the CB2W100-125 remains the consistent, standardized signal interface at the transducer end, ensuring measurement accuracy is maintained regardless of the upstream communication changes.

Retrofit Guidance FAQ

Q: Can I reuse my existing field wiring when replacing the cable?
A: In most cases, yes. The CB2W100-125 is designed to connect to the existing proximity transducer extension cable at the field end. If the extension cable (e.g., 330130 series) is in good condition, only the interconnect cable needs replacement. Verify connector compatibility before installation.

Q: Will the CB2W100-125 work with my existing 3500 monitor modules without reprogramming?
A: Yes. The cable is a passive signal conductor and does not affect the monitor module’s configuration. No software changes, parameter adjustments, or System 1 database modifications are required when replacing a like-for-like cable.

Q: Is the cable compatible with both Modbus RTU and Modbus TCP communication setups?
A: The cable itself is protocol-agnostic — it carries the analog proximity signal to the monitor module. The communication protocol (Modbus RTU via 3500/93, Modbus TCP via 3500/92, or OPC-DA) is determined by the communication module installed in the rack, not by the interconnect cable.

Q: What is the maximum cable run I can achieve with the CB2W100-125?
A: The CB2W100-125 is 125 inches (≈ 3.175 m). For longer runs, use a 330130 series extension cable upstream of the CB2W100-125. Total cable capacitance must remain within the transducer driver’s specification (typically ≤ 1000 pF for standard 3300 XL drivers).

Q: Does the cable fit in a standard 3500 rack cabinet without modification?
A: Yes. The 125-inch length is sized for standard turbine control cabinet configurations where the rack is mounted within the same enclosure as the marshalling terminals. For remote rack installations, extension cables handle the additional distance.

Q: How do I verify the cable is functioning correctly after installation?
A: Check the gap voltage reading on the 3500 monitor module’s front-panel display or via System 1 software. A stable gap voltage within the transducer’s linear range (typically −10 to −18 VDC for 8mm probes) confirms correct cable installation and signal continuity.

Warranty Assurance

Every CB2W100-125 unit shipped by TOPNLMS is covered by a 12-month warranty from the date of delivery, covering manufacturing defects, connector failures, and signal performance deviations from specification. Prior to dispatch, each unit undergoes a continuity check, impedance verification, and visual inspection of connector terminations and cable jacket integrity.

In the event of a warranty claim, TOPNLMS provides a replacement unit or full refund within the warranty period. Our technical support team responds to warranty inquiries within 1 business day. Replacement units are dispatched from our Xiamen warehouse with priority shipping to minimize plant downtime.

For procurement teams requiring documentation, we can provide inspection reports, country-of-origin certificates, and product conformity declarations upon request. Bulk orders for spare-parts programs are supported with volume pricing and scheduled delivery agreements.

We understand that unplanned downtime on a critical rotating machine is a high-cost event. Our inventory, testing, and logistics processes are designed to support emergency replacement scenarios — including same-day dispatch for in-stock items — so your monitoring system is restored to full operation as quickly as possible.
