Bently Nevada 991-05-50-01-00 Replacement | 3500 Series: Smooth Transition from Legacy Axial Monitoring Systems

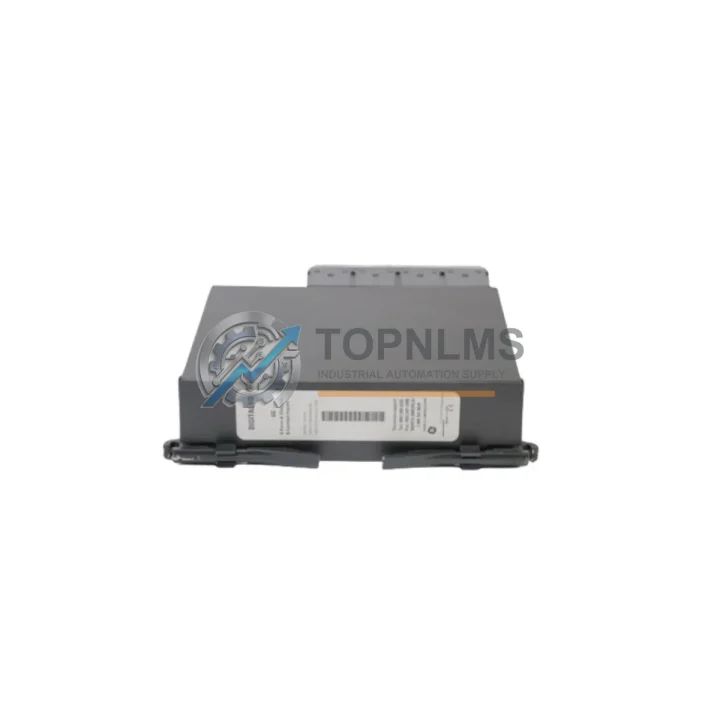

The Bently Nevada 991-05-50-01-00 is a precision Axial Position Transmitter designed for the 3500 Series machinery protection platform. As original equipment reaches end-of-life or becomes increasingly difficult to source, plant engineers and reliability teams face mounting pressure to maintain continuous vibration and position monitoring without triggering costly shutdowns. This replacement and upgrade solution is engineered to deliver a seamless migration path — preserving your existing wiring infrastructure, rack architecture, communication protocol compatibility, and control cabinet footprint while restoring full monitoring capability.

Whether you are replacing a failed unit, building a critical spare inventory, or executing a planned system modernization, the 991-05-50-01-00 replacement module integrates directly into your existing 3500 Series rack without requiring panel redesign or software reconfiguration. The transmitter maintains the same 4–20 mA output signal standard used across the 3500 platform, ensuring compatibility with your existing Bently Nevada 3500/22M Transient Data Interface or 3500/42M Proximitor/Seismic Monitor modules already installed in the rack.

Compatibility Comparison Table

Seamless Upgrade Solutions

A successful axial position monitoring migration rarely involves a single module swap. In practice, plant teams upgrading from discontinued or aging 3500 Series configurations typically address several interconnected components in the same maintenance window to minimize repeat downtime events.

When replacing the 991-05-50-01-00, engineers commonly audit the adjacent 3500/20 Rack Interface Module to confirm firmware compatibility with the replacement transmitter. If the rack backplane has accumulated years of service, the 3500/05 Rack Power Supply Module is often replaced simultaneously to eliminate power-related false trips that can mask genuine axial displacement events. For sites running older Proximitor sensor cabling, the 330180 Series Proximitor Extension Cable assemblies are inspected and replaced as part of the same outage to ensure signal integrity from probe tip to monitor input.

On the communication side, facilities integrating the 3500 platform into a DCS or SCADA environment via Modbus RTU or the proprietary System 1 software suite will want to verify that the 3500/92 Communication Gateway Module is correctly configured for the replacement transmitter’s register map. Sites using the 3500/22M Transient Data Interface for waveform capture should confirm that the new module’s buffered output is recognized by the gateway without requiring a full database rebuild.

For plants executing a broader machinery protection upgrade — moving from the legacy 3300 Series or 7200 Series monitors to the 3500 platform — the 991-05-50-01-00 replacement is typically paired with new 3300/16 Proximitor Monitors being decommissioned, with the 330730 Proximitor Sensor and 330101 Proximity Transducer System remaining in service as the field sensing elements. This approach preserves the capital investment in installed probe and extension cable infrastructure while modernizing the monitoring electronics in the control cabinet.

In control cabinet configurations where space is constrained, the compact form factor of the 3500 Series module eliminates the need for panel expansion. Facilities that previously operated standalone 7200 Series rack systems can consolidate monitoring into a single 3500 Series rack, reducing cabinet footprint and simplifying spare parts management. The 3500/15 Power Supply Module and 3500/32 4-Channel Relay Module are commonly included in the same procurement to complete the rack build-out.

Retrofit Guidance FAQ

Q: Can I install the 991-05-50-01-00 replacement without rewiring the terminal block?
A: Yes. The replacement module uses an identical terminal block pinout to the original OEM unit. No rewiring is required. Simply remove the existing module, insert the replacement into the same rack slot, and reconnect the existing field wiring harness.

Q: Will my existing Proximitor probe and extension cable work with this replacement?
A: Yes. The 991-05-50-01-00 is designed to accept standard eddy current probe inputs from the 330730 and 330101 Proximitor series. No probe replacement is required unless the existing probe is damaged or out of calibration.

Q: Does this replacement require a software reconfiguration in System 1 or the 3500 rack?
A: In most cases, no. The replacement module is recognized by the 3500 rack as the same channel type. However, we recommend verifying the rack configuration file and performing a channel check after installation to confirm all setpoints and alarm thresholds are correctly retained.

Q: Is the Modbus register map identical to the original module?
A: Yes. The replacement maintains the same Modbus RTU register structure, ensuring that existing DCS or SCADA integrations continue to read axial position data without requiring PLC program modifications.

Q: What physical space does the module require in the control cabinet?
A: The 991-05-50-01-00 occupies a standard single-slot position in the 3500 Series rack. No additional cabinet space or mounting hardware is required beyond the existing rack slot.

Q: How long does commissioning typically take after installation?
A: For a direct replacement in an existing rack, commissioning typically takes 30–60 minutes, including channel verification, gap voltage check, and alarm setpoint confirmation. No extended downtime is required.

Warranty Assurance

Every 991-05-50-01-00 replacement unit shipped by TOPNLMS is covered by a 12-Month Warranty from the date of delivery. Prior to shipment, each module undergoes functional testing to verify output signal accuracy, terminal block integrity, and rack interface compatibility. Units are shipped in anti-static protective packaging with full documentation.

In the event of a warranty claim, TOPNLMS provides direct replacement support with priority processing for critical plant applications. Our technical team is available to assist with installation verification, commissioning questions, and compatibility confirmation before and after delivery. We understand that machinery protection systems are mission-critical — our procurement and after-sales process is designed to minimize your exposure to unplanned downtime.

For volume procurement, spare parts programs, or expedited shipping requirements, contact our team directly. We maintain stock of the 991-05-50-01-00 and related 3500 Series modules to support both emergency replacement and planned maintenance schedules.
