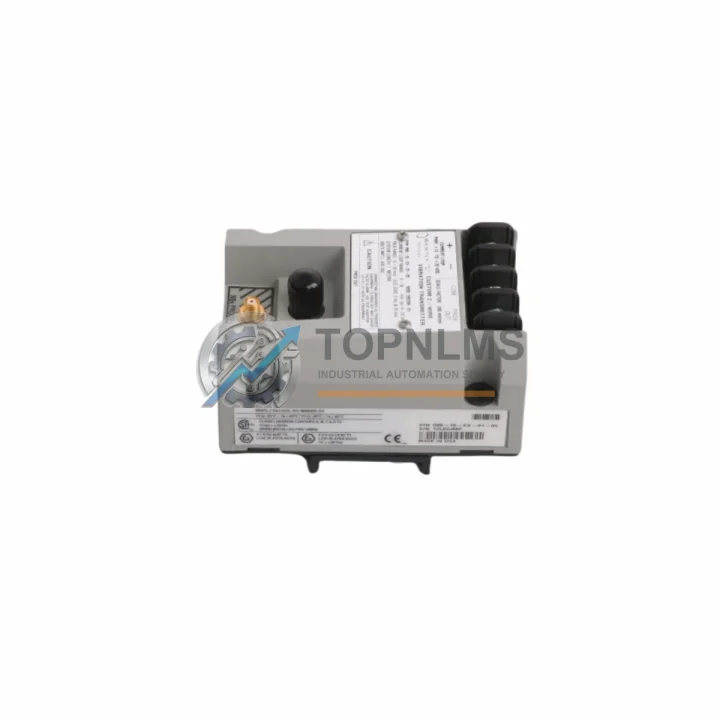

Bently Nevada 990-10-XX-01-05 285269-01 Vibration Transmitter

Product Overview

Bently Nevada 990-10-XX-01-05 285269-01: Industrial Resilience in the Harshest Environments

The Bently Nevada 990-10-XX-01-05 (Part No. 285269-01) is a precision-engineered vibration transmitter from the 990 Series, purpose-built to deliver continuous, accurate machinery health monitoring in the most demanding industrial environments. Whether deployed on rotating equipment in oil refineries, gas compression stations, power generation turbines, or heavy-duty mining conveyors, this transmitter is engineered to maintain signal integrity and measurement accuracy under conditions of extreme temperature, high humidity, pervasive dust, mechanical shock, and intense electromagnetic interference (EMI). Its industrial-grade construction and proven field reliability make it the preferred choice for reliability engineers and plant maintenance teams who cannot afford measurement failures in safety-critical applications.

As a core component of Bently Nevada’s condition monitoring ecosystem, the 990-10-XX-01-05 interfaces seamlessly with the 3500 Series Machinery Protection System rack — including the 3500/42M Proximitor/Seismic Monitor and 3500/22M Transient Data Interface — enabling real-time vibration data acquisition that feeds directly into plant-level DCS and SCADA platforms. Its 4–20 mA analog output is universally compatible with leading PLC and DCS controllers, including Siemens S7-300/S7-400 series, Rockwell Automation ControlLogix, and Honeywell Experion PKS, ensuring straightforward integration into existing control architectures without costly signal conditioning hardware.

Rugged Specifications Table

Comprehensive Protection Solutions

In a fully integrated machinery protection architecture, the 990-10-XX-01-05 285269-01 is the front-line sensing element that feeds critical vibration data into a layered protection and control system. Within the Bently Nevada 3500 Series rack, it works in concert with the 3500/15 Power Supply Module, which provides stable, conditioned DC power to all rack-mounted monitors, ensuring that voltage fluctuations on the plant bus never compromise measurement accuracy. The 3500/20 Rack Interface Module (RIM) manages communication between the rack and the plant’s DCS or historian, typically via Modbus RTU or Ethernet/IP protocols, while the 3500/42M Proximitor/Seismic Monitor processes the raw proximity probe signals before they reach the transmitter loop.

For facilities running Siemens-based control infrastructure, the transmitter’s 4–20 mA output integrates directly into Siemens ET 200SP or ET 200M distributed I/O modules, which relay vibration data to a Siemens S7-1500 PLC for logic processing and alarm management. In Rockwell environments, the signal feeds into Allen-Bradley 1756 ControlLogix I/O modules, enabling seamless tag mapping within Studio 5000. Where galvanic isolation is required between the field device and the control system — particularly in hazardous areas classified as Zone 1 or Zone 2 — an intrinsic safety barrier or Phoenix Contact MACX MCR-SL signal isolator is recommended upstream of the PLC analog input card.

On the power distribution side, a dedicated DIN-rail power supply ensures the 18–30 VDC loop supply remains within specification even during plant-wide load transients. For installations in control cabinets subject to high ambient temperatures, pairing the transmitter loop with a signal conditioner provides additional thermal compensation and signal buffering. Communication-intensive plants may also route vibration data through a serial device server to bridge legacy RS-485 Modbus signals onto Ethernet for integration with modern SCADA platforms such as Wonderware or Ignition. The Bently Nevada 3500/22M Transient Data Interface further extends the system’s diagnostic capability by capturing high-resolution transient waveforms during startup and shutdown events — data that is invaluable for root-cause analysis of recurring vibration anomalies.

Application in Critical Infrastructure

The Bently Nevada 990-10-XX-01-05 285269-01 is a trusted component across the world’s most safety-critical industrial sectors. In oil and gas upstream and midstream operations, it monitors shaft vibration on gas compressors, centrifugal pumps, and expanders — providing early warning of imbalance, misalignment, or bearing degradation before a failure event can trigger an unplanned shutdown or a safety incident. Offshore platforms and onshore gas processing facilities rely on this transmitter’s rugged construction to withstand salt-laden atmospheres, high humidity, and the constant mechanical vibration inherent to floating production units.

In thermal and hydroelectric power generation, the 990-10-XX-01-05 is mounted on turbine bearing housings and generator end-shields, where it continuously reports radial vibration levels to the plant’s machinery protection system. Any exceedance of alarm or danger setpoints triggers an automatic trip sequence, protecting multi-million-dollar rotating assets from catastrophic failure. Mining and mineral processing operations deploy this transmitter on ball mills, SAG mills, and crusher drives — environments characterized by extreme dust ingress, shock loading, and wide temperature swings — where its IP66-rated housing and robust signal conditioning circuitry maintain reliable operation shift after shift.

Water and wastewater treatment facilities use the device on large centrifugal pump trains and blower units, where early vibration detection prevents bearing failures that could interrupt treatment capacity. In metallurgical and steel production plants, it monitors rolling mill drives and continuous casting equipment, where the combination of high temperatures, electromagnetic noise from large drive systems, and mechanical shock demands a transmitter with proven EMI immunity and thermal stability. Across all these sectors — from petrochemical complexes to municipal infrastructure — the 990-10-XX-01-05 285269-01 delivers the measurement confidence that plant engineers and reliability teams depend on to make informed maintenance decisions and uphold the highest safety standards.

Security & Quality FAQ

Q1: What does the 12-month warranty cover, and how is it enforced?
Every Bently Nevada 990-10-XX-01-05 285269-01 unit shipped by TOPNLMS carries a 12-month warranty from the date of shipment. The warranty covers manufacturing defects, component failures under normal operating conditions, and any deviation from published specifications. If a unit fails within the warranty period, we arrange replacement or repair at no additional cost. Contact us with your order reference, describe the fault, and we will issue a return authorization and dispatch a replacement unit promptly.

Q2: How is each unit tested before shipment?
All units undergo a pre-shipment functional verification process, including output signal calibration check (4–20 mA linearity), power supply input range test, and visual inspection for physical integrity. Units are stored in ESD-safe, climate-controlled conditions to prevent electrostatic damage and humidity-related degradation. Test documentation is available upon request for customers with incoming inspection requirements.

Q3: Is the 990-10-XX-01-05 compatible with my existing Bently Nevada 3500 rack and probe system?
Yes. The 990-10-XX-01-05 285269-01 is designed to interface with Bently Nevada 3300 XL and 7200 Series proximity probe systems and is fully compatible with the 3500 Series Machinery Protection System rack. It is a direct drop-in replacement for worn or failed units in existing installations, requiring no rack reconfiguration or software changes. The standard 4–20 mA output also ensures compatibility with virtually any third-party PLC or DCS analog input module.

Q4: Can TOPNLMS support long-term or repeat procurement of this part?
Absolutely. TOPNLMS maintains stock of the 990-10-XX-01-05 285269-01 and related 990 Series components to support both emergency replacement and planned maintenance programs. Our team can provide lead-time commitments, volume pricing, and scheduled delivery arrangements to align with your plant’s maintenance calendar. Contact us at [email protected] or +86 18359293191 to discuss your procurement requirements.
