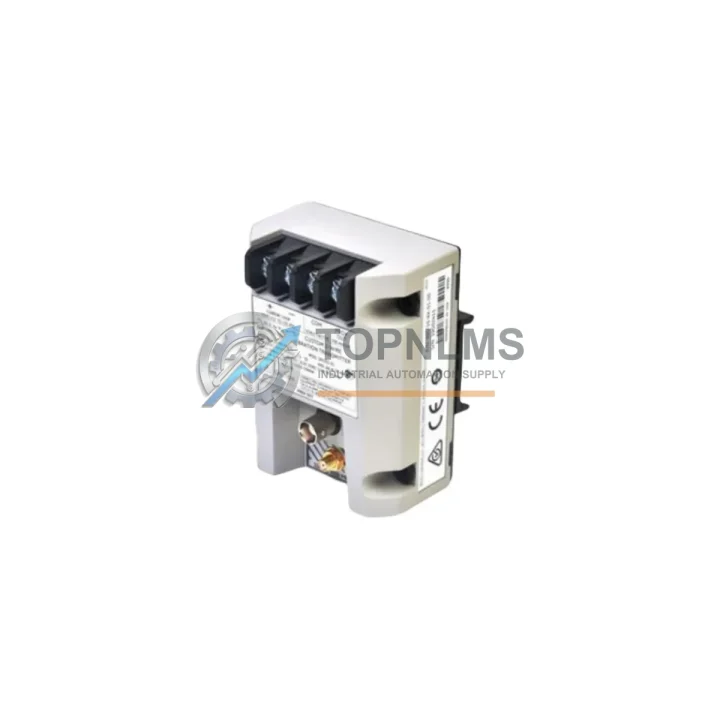

Bently Nevada 990-10-XX-01-00 Replacement for 3300 Series

Product Overview

Bently Nevada 990-10-XX-01-00 Replacement for 3300 Series: Smooth Migration from Legacy Vibration Monitoring Systems

When a Bently Nevada 990-10-XX-01-00 / 283278-01 vibration transmitter reaches end-of-life or becomes unavailable through standard OEM channels, the impact on rotating machinery protection systems can be immediate and severe. Unplanned downtime, loss of vibration data integrity, and the risk of running critical assets unmonitored are real operational concerns for plant engineers and reliability teams. This listing provides a verified, tested replacement unit for the Bently Nevada 990-10-XX-01-00 / 283278-01 proximity transmitter, engineered to restore full monitoring capability within the 3300 Series vibration monitoring architecture without requiring system-wide reconfiguration.

The 990-10-XX-01-00 is a key signal conditioning component within the Bently Nevada 3300 Series proximity system. It accepts the raw signal from a 3300 XL 8mm or 3300 5mm proximity probe and conditions it into a calibrated output suitable for the 3300 Series rack-mounted monitors, including the 3300/20 Dual Vibration Monitor and the 3300/25 Keyphasor Module. The 283278-01 is the associated assembly revision identifier, confirming the specific hardware configuration and firmware baseline. Replacement units supplied through TOPNLMS are sourced from verified industrial surplus channels and undergo functional testing prior to dispatch.

For facilities operating legacy Bently Nevada 3300 Series racks, this transmitter integrates directly into existing wiring infrastructure. The signal cable pinout, connector type, and impedance characteristics are preserved, meaning field technicians can complete a swap without modifying the junction box wiring or the monitor rack termination. The output signal range — typically –24 VDC bias with a sensitivity of 200 mV/mil — remains consistent with the original specification, ensuring that the 3300/20 monitor continues to display accurate gap, 1X, and 2X vibration amplitude data without recalibration of alarm setpoints.

In many retrofit scenarios, the 990-10-XX-01-00 transmitter is replaced as part of a broader upgrade from a 3300 Series rack to a System 1 Evolution or 3500 Series platform. During such migrations, the proximity probe itself — such as the 330101-00-06-10-02-00 or 330130-080-00-00 — is often retained, while the signal conditioning and monitoring electronics are modernized. In these cases, the 990-10-XX-01-00 serves as a bridging component, maintaining signal integrity during phased migration while the new 3500/42M Proximitor Monitor or 3500/22M Transient Data Interface is commissioned in parallel. This approach minimizes the window of unmonitored operation on critical assets such as steam turbines, compressors, and boiler feed pumps.

Physical installation is straightforward. The transmitter mounts in the standard 3300 Series rack slot and draws power from the existing rack power supply, typically a 3300/05 Power Supply Module operating at –24 VDC. No additional power conditioning is required. The unit dimensions and DIN rail or rack-mount footprint are identical to the original, ensuring no modification to the control cabinet layout or cable management tray is necessary. For installations where the control cabinet has limited clearance, this is a critical advantage over alternative third-party signal conditioners that may require adapter plates or additional terminal blocks.

Communication and data output compatibility is maintained at the hardware level. The 990-10-XX-01-00 does not use a digital fieldbus protocol — its output is an analog voltage signal consumed directly by the 3300 Series monitor. However, in systems where the monitor rack is connected upstream to a DCS via a 3300/93 Communication Gateway or a Modbus RTU interface card, the replacement transmitter will not disrupt the data chain. The DCS — whether a Honeywell Experion PKS, Emerson DeltaV, or ABB 800xA — continues to receive vibration trend data without any configuration change at the gateway or historian level.

For sites performing a full decommission of the 3300 Series and migrating to the Bently Nevada 3500 Series, the replacement 990-10-XX-01-00 can be used to maintain monitoring continuity on non-critical assets while priority machines are migrated first. The 3500 Series Proximitor Monitor accepts the same probe types and wiring conventions, and the transition from 3300 to 3500 rack architecture typically involves remapping I/O channels in the System 1 software rather than rewiring the field instrumentation. TOPNLMS can supply both the 990-10-XX-01-00 for legacy continuity and 3500 Series components for the migration target, supporting a phased approach that reduces capital expenditure and operational risk.

All units are dispatched from Xiamen, China, with standard export documentation including commercial invoice, packing list, and certificate of conformance. Lead time for in-stock units is 3–5 business days. Express courier options (DHL, FedEx, UPS) are available for urgent requirements. Each unit carries a 12-month warranty covering functional failure under normal operating conditions.

Compatibility Comparison Table

Seamless Upgrade Solutions

A successful migration away from a legacy 3300 Series vibration monitoring installation rarely involves a single component. In practice, field engineers replacing the 990-10-XX-01-00 transmitter will often simultaneously address adjacent components that have reached the same service age. The 3300/05 Power Supply Module, which provides the –24 VDC rail to the transmitter and associated monitors, is a common co-replacement item — particularly in installations where the power supply has been in continuous service for more than ten years. Similarly, the 3300/20 Dual Vibration Monitor itself may be flagged for replacement if the transmitter failure was caused by upstream signal anomalies rather than the transmitter alone.

For sites migrating to the 3500 Series platform, the 3500/42M Proximitor Monitor is the natural successor to the 3300/20, accepting the same probe wiring and providing enhanced diagnostics and System 1 software integration. The 3500/22M Transient Data Interface adds startup and coast-down capture capability that the 3300 Series did not natively support. During the transition period, the 990-10-XX-01-00 replacement unit can maintain monitoring on assets not yet migrated, while the 3500 rack is commissioned on priority machines.

Probe infrastructure is another area of focus. The 330101-00-06-10-02-00 proximity probe and its associated extension cable — typically a 330130-080-00-00 or similar — should be inspected and replaced if the cable jacket shows signs of thermal degradation or mechanical damage. A new transmitter paired with a degraded probe cable will not deliver the signal quality improvement the replacement is intended to achieve. TOPNLMS stocks a range of 3300 Series and 3500 Series proximity probes and extension cables to support complete sensor chain replacements.

For facilities that are also upgrading their HMI layer, the replacement of the 990-10-XX-01-00 is often coordinated with the commissioning of a new operator interface — whether a Bently Nevada System 1 workstation or a third-party SCADA terminal connected via the 3300/93 Communication Gateway. Ensuring the gateway firmware is current before introducing a replacement transmitter avoids compatibility issues at the data aggregation layer. Where the control cabinet also houses a 3300/25 Keyphasor Module for phase reference measurement, that module should be verified for signal integrity as part of the same maintenance event, since Keyphasor data quality directly affects 1X and 2X vector accuracy in the vibration monitor. TOPNLMS can advise on gateway firmware versions and supply compatible communication modules on request.

Retrofit Guidance FAQ

Q: Can I replace the 990-10-XX-01-00 without shutting down the monitored machine?
A: Hot-swap capability depends on your site safety procedures and the criticality of the monitored asset. In most installations, the 3300 Series rack will generate a “Not OK” alarm when the transmitter is removed. It is strongly recommended to coordinate the replacement with a planned maintenance window or to use a bypass relay if your safety system permits temporary alarm suppression during the swap.

Q: Will the replacement transmitter require recalibration of the 3300/20 monitor alarm setpoints?
A: No. The replacement unit maintains the same output sensitivity (200 mV/mil) and bias voltage as the original. Existing gap, direct vibration, and 1X amplitude alarm setpoints in the 3300/20 monitor remain valid without adjustment.

Q: Is the replacement compatible with both 3300 XL 8mm and 3300 5mm probe systems?
A: Yes. The 990-10-XX-01-00 is designed to condition signals from both probe diameters within the 3300 Series ecosystem. Verify the probe type installed in your application and confirm the transmitter configuration switch settings match the probe specification before installation.

Q: Will the replacement disrupt our DCS data feed?
A: No. The transmitter outputs an analog signal to the 3300 Series monitor. The monitor’s upstream communication — whether via the 3300/93 gateway using Modbus RTU or a hardwired 4–20 mA output to the DCS I/O card — is not affected by the transmitter swap. DCS trend data will resume immediately after the replacement unit is powered and the monitor returns to OK status.

Q: What if our 3300 Series rack is no longer supported by Bently Nevada?
A: The 3300 Series reached end-of-active-support status, but the hardware remains functional in many installations. TOPNLMS supplies replacement components to extend the operational life of 3300 Series racks while customers plan their migration to the 3500 Series or System 1 Evolution platform. We can supply the 990-10-XX-01-00 transmitter, 3300/05 power supply, 3300/20 monitor, and associated probe hardware to keep your existing rack operational during the transition period.

Q: What physical space is required for installation?
A: The replacement unit occupies the same single-slot footprint as the original 990-10-XX-01-00 in the 3300 Series rack. No additional panel space, adapter brackets, or cable management modifications are required.

Q: Can this transmitter be used during a phased migration to the 3500 Series?
A: Yes. This is one of the most common deployment scenarios. The 990-10-XX-01-00 replacement maintains full monitoring on assets remaining on the 3300 Series rack while the 3500/42M Proximitor Monitor is commissioned on priority machines. Once all assets are migrated, the 3300 Series rack can be decommissioned without any gap in protection coverage.

Warranty Assurance

Every 990-10-XX-01-00 / 283278-01 replacement unit supplied by TOPNLMS is covered by a 12-month warranty from the date of shipment. Prior to dispatch, each unit undergoes a functional verification process that includes power-on testing, output signal measurement, and connector integrity inspection. Units that do not meet the original specification are quarantined and not offered for sale.

In the event of a warranty claim, TOPNLMS will arrange for the return of the defective unit and dispatch a replacement within 5 business days of receiving the returned item and confirming the fault. Return shipping costs for warranty claims are covered by TOPNLMS for orders shipped to mainland China, Hong Kong, and Taiwan. For international orders, return shipping arrangements are agreed on a case-by-case basis.

Our after-sales team is reachable at [email protected] or +86 18359293191 for technical pre-sales questions, warranty claims, and urgent procurement support. We maintain stock of the most frequently requested 3300 Series and 3500 Series components to support rapid dispatch for emergency replacement scenarios.

For bulk procurement, long-term supply agreements, or project-based sourcing of Bently Nevada vibration monitoring components, please contact our sales team directly to discuss pricing, lead times, and quality documentation requirements.
