Bently Nevada 84661-35 Original Industrial Spare 3300 XL Compatible

Product Overview

Bently Nevada 84661-35 Original Industrial Spare 3300 XL Compatible: System Stability and Maintenance Value

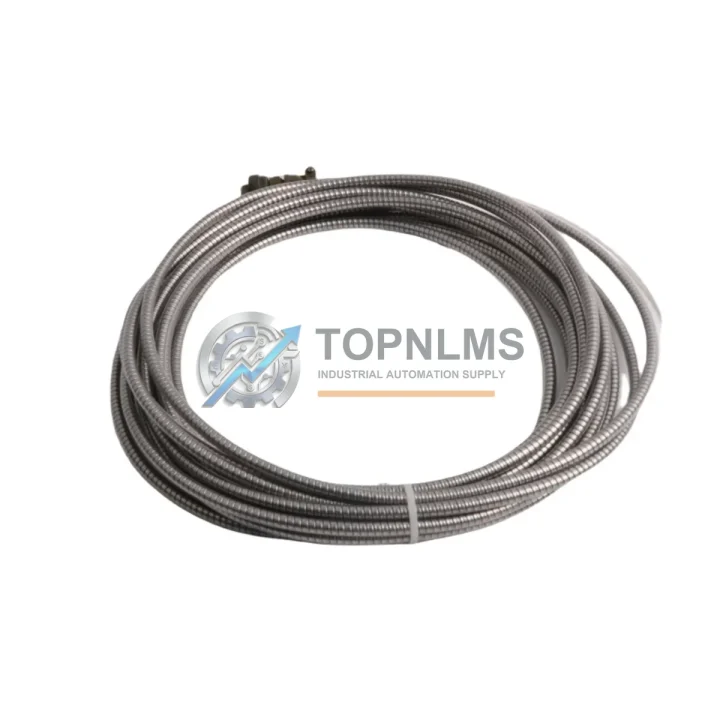

The Bently Nevada 84661-35 is an original armoured extension cable engineered for the 3300 XL Proximity System — one of the most widely deployed vibration and position monitoring platforms in rotating machinery applications worldwide. Whether you are managing a planned shutdown, responding to an unplanned trip, or building a strategic spare parts inventory for a turbine, compressor, or pump train, the 84661-35 is a mission-critical component that directly affects the reliability and uptime of your condition monitoring system.

In industrial facilities where continuous operation is paramount — power generation, petrochemical, oil & gas, pulp and paper, and heavy manufacturing — the integrity of the proximity probe signal chain is non-negotiable. The 84661-35 armoured extension cable connects the proximity probe to the Bently Nevada 3300 XL proximitor/oscillator, forming the middle segment of the eddy-current sensing loop. Any degradation in this cable — whether from mechanical abrasion, thermal cycling, chemical exposure, or connector corrosion — directly compromises vibration amplitude accuracy, phase reference integrity, and gap voltage stability. Keeping a verified original spare on hand eliminates the risk of extended downtime caused by cable sourcing delays.

Critical Technical Specs Table

Preventive Maintenance Strategy

A structured preventive maintenance programme for the 3300 XL proximity system goes well beyond replacing a single cable. During any planned outage or condition-based maintenance window, maintenance engineers should treat the entire signal chain as a system — not a collection of isolated components. When replacing the 84661-35 extension cable, it is best practice to simultaneously inspect and, where service life warrants, replace the associated Bently Nevada 3300 XL proximity probe (such as the 330130-080-00-00 8mm probe or the 330780-50-00 11mm variant) to ensure the cable and probe are matched and within calibration tolerance.

The 3300 XL Proximitor/Oscillator module (e.g., 330180-X1-05) should be bench-tested for output voltage linearity and gap sensitivity during the same maintenance window. If the proximitor is approaching its recommended service interval or shows any drift in the -24 VDC gap voltage output, proactive replacement alongside the extension cable eliminates a second shutdown event. Similarly, the junction box or field wiring termination block connecting the proximitor to the monitor rack should be inspected for terminal corrosion, loose connections, and moisture ingress — conditions that are frequently misdiagnosed as cable faults.

At the monitor rack level, the Bently Nevada 3500/42M Proximitor Monitor or 3500/40M Proximitor/Seismic Monitor cards should be verified for alarm setpoint integrity and I/O module health. Rack-level components including the 3500/20 Power Supply module, 3500/22M Transient Data Interface, and 3500/92 Communication Gateway are often overlooked during cable-focused maintenance but are equally critical to system availability. A failed power supply or communication module can render an otherwise healthy proximity system blind to developing machinery faults.

For facilities running legacy Bently Nevada 7200 Series or 3300 (non-XL) systems alongside newer 3300 XL installations, maintaining a cross-referenced spare parts matrix that includes both 7200 series extension cables and 3300 XL cables prevents cross-installation errors during emergency replacements. Additionally, signal conditioner modules, barrier isolators (particularly in ATEX/IECEx classified zones), and coaxial cable adapters should be stocked as part of a comprehensive proximity system spare parts kit.

Strategic Replacement Solutions

The 84661-35 is a direct original replacement for ageing or damaged extension cables in existing 3300 XL installations. Unlike generic aftermarket cables, the original Bently Nevada armoured extension cable is manufactured to the precise impedance, capacitance-per-metre, and shielding specifications required by the 3300 XL eddy-current sensing circuit. Substituting a non-specified cable — even one that appears physically compatible — can introduce measurement errors of several mils (thousandths of an inch) in vibration amplitude readings, potentially masking real machinery faults or triggering nuisance trips.

For facilities transitioning from older Bently Nevada 3300 (5mm or 8mm non-XL) probe systems, the 3300 XL platform offers improved temperature compensation and a wider gap range, and the 84661-35 is the correct extension cable for this upgraded system. Replacing the full probe-cable-proximitor assembly as a matched set during a major overhaul — rather than mixing old and new components — is the recommended approach to ensure system accuracy and avoid recalibration issues.

Stocking the 84661-35 as a designated critical spare reduces mean time to repair (MTTR) for proximity system faults from days (sourcing lead time) to hours (shelf-to-installation). For multi-train facilities with four or more monitored machines, maintaining a minimum of two spare cables per cable length variant in use is a widely adopted industry practice that balances inventory cost against downtime risk.

Support FAQ

Q1: Is the 84661-35 compatible with both new and legacy 3300 XL proximitor modules?
Yes. The 84661-35 is designed for the full 3300 XL Proximity System family. It is compatible with all standard 3300 XL Proximitor/Oscillator modules. Always verify the cable length and connector type match your existing installation before ordering.

Q2: What is included in the 12-month warranty?
All units supplied by TOPNLMS carry a 12-month warranty covering manufacturing defects and electrical performance failures under normal operating conditions. Each cable is inspected and tested prior to shipment. Warranty claims are supported with replacement or refund at our discretion.

Q3: Can I replace the 84661-35 in the field without recalibrating the proximity system?
In most cases, yes — provided the replacement cable is an original Bently Nevada 84661-35 of the same length and connector specification as the cable being replaced. Like-for-like replacement of the extension cable does not alter the system’s calibrated gap voltage or sensitivity. However, if the probe or proximitor is also being replaced, a full system calibration check per Bently Nevada installation procedures is recommended.

Q4: How should I manage spare cable inventory for a multi-machine facility?
For facilities with multiple 3300 XL-monitored machines, we recommend maintaining at least one spare cable per cable length variant in active use, with a minimum of two spares for critical or continuously running machinery (e.g., main steam turbines, process compressors). Cables should be stored in their original packaging in a dry, temperature-controlled environment and inspected annually for connector integrity even when not in service.
