Bently Nevada 84661-25 Velomitor Cable Replacement

Product Overview

Bently Nevada 84661-25 Velomitor Cable Replacement: Seamless Transition & Legacy System Compatibility

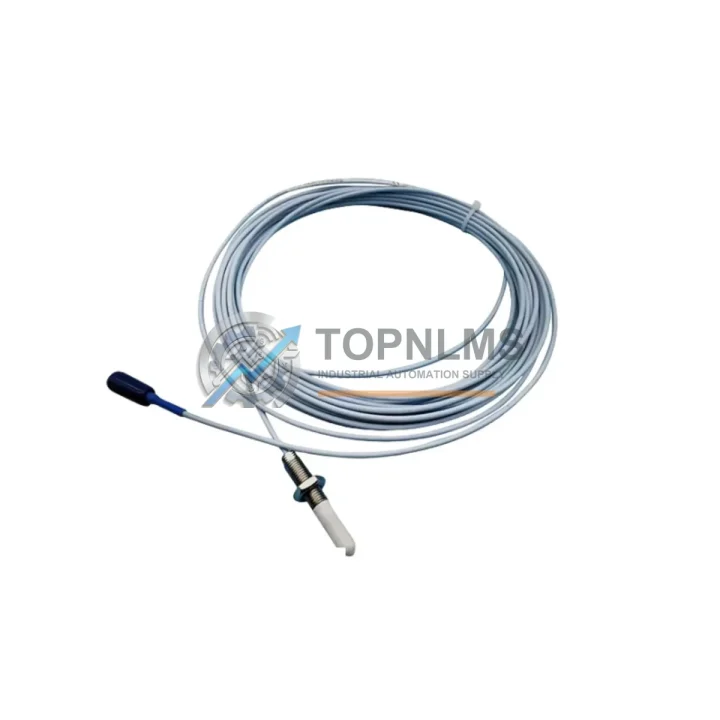

The Bently Nevada 84661-25 is a 25-foot Velomitor Interconnect Cable engineered for use with Bently Nevada’s Velomitor piezo-velocity sensors and the 3300 Series vibration monitoring systems. As legacy installations age and original cables reach end-of-service life, facilities engineers and reliability teams face the challenge of sourcing a drop-in replacement that preserves signal integrity, maintains connector compatibility, and avoids costly reconfiguration of existing monitoring loops. This replacement cable is stocked and tested to meet those requirements, enabling a smooth upgrade path with minimal downtime.

Whether you are maintaining a turbine protection system, a compressor train monitoring loop, or a pump bearing surveillance network, the 84661-25 cable serves as the critical link between the Velomitor sensor and the signal conditioning input of your monitoring rack. Its shielded construction and precision-terminated connectors ensure that velocity signals are transmitted without noise interference, preserving the accuracy of your vibration data and the reliability of your trip and alarm setpoints.

Compatibility Comparison Table

Seamless Upgrade Solutions

A successful migration from an aging Bently Nevada monitoring installation involves more than swapping a single cable. When replacing the 84661-25 interconnect cable, reliability engineers typically audit the full signal chain to ensure every component meets the same performance standard. In practice, this means verifying the condition of the Velomitor sensor itself — models such as the 330500-02-00 or 330525-00-00-05-02 — since a degraded sensor will compromise signal quality regardless of cable condition. If the sensor is also approaching end-of-life, replacing both the sensor and the 84661-25 cable simultaneously eliminates a second planned outage.

At the rack end of the signal chain, the 3300/16-channel Velocity Monitor or the 3500/42M Velocity Monitor card receives the cable’s output. If your facility is migrating from a 3300 Series rack to a 3500 Series rack as part of a broader system modernization, the 84661-25 cable remains compatible with both platforms, protecting your cable investment during a phased rack upgrade. The 3500 rack’s modular architecture also accommodates the 3500/20 Rack Interface Module and the 3500/22M Transient Data Interface, which are commonly installed alongside velocity monitoring channels during system expansions.

For installations where the cable runs through a junction box before reaching the monitor rack, the TM0180-A140-B000 field junction box or equivalent terminal barrier assemblies are used to transition from the field cable to the rack cable. Inspecting and replacing terminal blocks and barrier strips at the junction point during a cable replacement is a recognized best practice that prevents intermittent faults caused by corroded or loose terminations. Similarly, if your installation uses a Proximitor extension cable such as the 330130-045-00-00 on adjacent proximity probe channels in the same conduit bundle, this is an efficient time to inspect those cables as well.

Power supply integrity is another consideration during any monitoring system retrofit. The 3500 rack’s internal power supply modules — including the 3500/15 Power Supply — should be verified for output stability before commissioning a newly replaced cable, since power fluctuations can introduce noise artifacts that mimic genuine vibration events. If your facility operates a standalone Velomitor with an external signal conditioner rather than a full rack system, confirming the conditioner’s bias voltage output is within the sensor’s specified range ensures the replacement cable will perform correctly from first power-on.

Retrofit Guidance FAQ

Q: Does replacing the 84661-25 cable require any wiring changes at the monitor rack?
A: No. The 84661-25 is a direct replacement. The connector pinout and cable impedance are identical to the original, so no rewiring, jumper changes, or rack reconfiguration is required. Technicians can complete the swap during a short planned outage window.

Q: Is the replacement cable compatible with both 3300 Series and 3500 Series monitor racks?
A: Yes. The cable’s analog voltage output is compatible with all Bently Nevada velocity monitor input cards in both the 3300 and 3500 Series platforms. No firmware or configuration changes are needed at the monitor.

Q: Will the cable fit in the existing conduit without modification?
A: The replacement 84661-25 matches the original cable’s outer diameter and bend radius specifications, so it will route through existing conduit, cable trays, and gland fittings without modification.

Q: Can this cable be used with a Velomitor sensor that has an integral cable rather than a connector?
A: The 84661-25 is designed for use with Velomitor sensors that terminate in a standard connector. For sensors with integral cables, a different extension cable or junction assembly is required. Contact our technical team to confirm compatibility with your specific sensor model.

Q: What is the lead time for this replacement cable?
A: The 84661-25 is in stock and ships within 1–3 business days from Xiamen. Express shipping options are available for urgent maintenance situations.

Q: How do I verify the replacement cable is functioning correctly after installation?
A: After installation, confirm the monitor’s OK relay is energized and the bias voltage at the monitor input is within the Velomitor’s specified range (typically –8 to –12 VDC). A baseline vibration spectrum taken immediately after commissioning provides a reference for future trend analysis.

Warranty Assurance

Every 84661-25 Velomitor Interconnect Cable shipped by TOPNLMS is covered by a 12-Month Warranty from the date of delivery. Prior to shipment, each cable undergoes continuity testing, shield integrity verification, and connector inspection to confirm it meets the electrical and mechanical specifications required for reliable operation in industrial vibration monitoring applications.

In the event of a verified defect within the warranty period, TOPNLMS will arrange a replacement shipment or issue a refund, depending on your preference and the urgency of your maintenance schedule. Our after-sales response target is within 24 hours on business days. We understand that unplanned downtime in rotating machinery protection systems carries significant operational and safety consequences, and our procurement support is structured to minimize that risk.

For bulk orders, long-term supply agreements, or urgent emergency procurement, please contact our team directly. We maintain buffer stock of high-demand Bently Nevada cables and accessories to support planned maintenance outages and emergency call-outs.
