Bently Nevada 84152-01 Original Industrial Spare 3500 Compatible: System Stability & Industrial Spare Maintenance Value

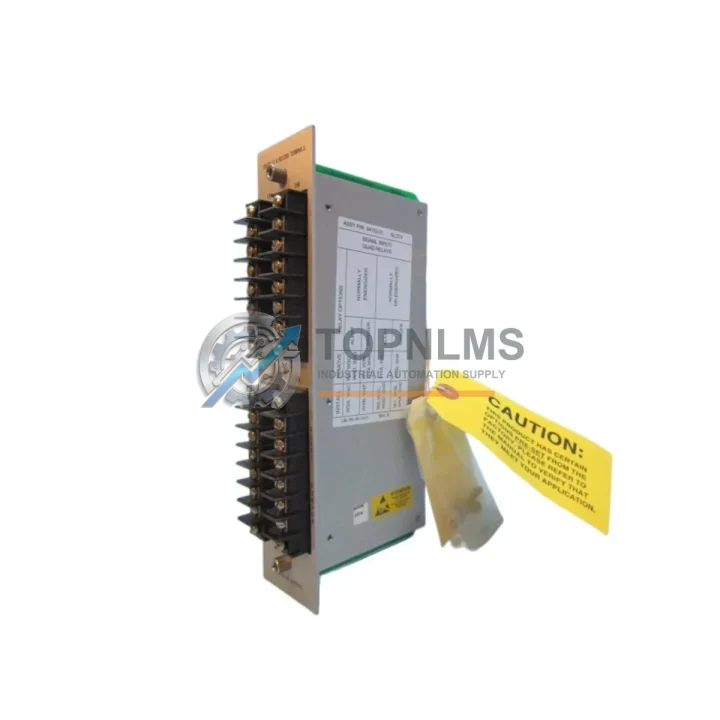

The Bently Nevada 84152-01 Quad SIRM (Setpoint Independent Relay Module) Alarm Relay Output Module is a mission-critical spare component within the Bently Nevada 3500 Series machinery protection system — one of the most widely deployed vibration monitoring and machinery protection platforms in rotating equipment environments worldwide. Whether you are managing a planned shutdown, responding to an unplanned trip, or building a strategic spare parts inventory for long-term plant reliability, the 84152-01 represents a high-priority line item in any maintenance program that depends on the 3500 rack architecture.

Sourced as an original spare, the 84152-01 is designed to slot directly into the 3500 Series rack without firmware reconfiguration or hardware modification, enabling rapid field replacement and minimizing mean time to repair (MTTR) during critical machinery protection events.

Critical Technical Specs Table

Preventive Maintenance Strategy

In any rotating machinery protection environment, the 84152-01 Alarm Relay Output Module does not operate in isolation. It is the final output stage of a protection chain that begins at the transducer and ends at the relay contact driving a shutdown or alarm circuit. A comprehensive preventive maintenance strategy for a 3500 Series rack should therefore treat the 84152-01 as part of a broader inspection and spare-holding program.

During scheduled outages or annual machinery inspections, maintenance teams should simultaneously audit the 3500/20 Rack Interface Module and 3500/22 Transient Data Interface, as these modules govern rack-level communication and data acquisition. A degraded rack interface can produce false alarm relay activations that are incorrectly attributed to the relay output module itself. Replacing or bench-testing the 84152-01 without verifying the upstream signal chain is a common source of repeat failures.

The 3500/32 4-Channel Relay Module and 3500/33 16-Channel Relay Module are functionally adjacent to the 84152-01 and are frequently stocked alongside it in facilities running mixed relay output configurations. If your rack uses both SIRM and standard relay outputs, holding one spare of each relay module type eliminates the risk of a single-point-of-failure during a trip event.

Transducer signal integrity is equally important. The 3500/40 Proximitor/Seismic Monitor and 3500/42 Proximitor/Seismic Monitor feed vibration and position data directly to the relay logic. Inspecting Proximitor probe cables, extension cables, and driver electronics during the same maintenance window as relay module checks ensures that alarm setpoints are being evaluated against clean, calibrated signals. Faulty Proximitor drivers are a leading cause of nuisance trips that stress relay contacts and accelerate wear on the 84152-01.

Power supply integrity is another critical factor. The 3500/15 Power Supply Module provides regulated DC power to the entire 3500 rack. A power supply operating near end-of-life can introduce voltage ripple that affects relay coil hold-in voltage, leading to intermittent relay chatter. Stocking a spare 3500/15 alongside the 84152-01 is standard practice in high-availability plant environments.

For facilities managing older 3500 installations, the 3500/92 Communication Gateway Module and 3500/94 Ethernet Communication Module are worth inspecting during the same outage window. Communication module failures can prevent alarm relay status from being reported to the DCS or SCADA layer, creating a blind spot in the plant’s protection architecture even when the relay hardware itself is functioning correctly.

Finally, terminal blocks, field wiring connectors, and relay output wiring should be inspected for insulation degradation, loose terminations, and corrosion — particularly in high-humidity or chemically aggressive environments. These passive components are often overlooked but are a frequent root cause of relay output circuit failures that are misdiagnosed as module faults.

Strategic Replacement Solutions

The Bently Nevada 84152-01 addresses one of the most persistent challenges in industrial maintenance: keeping aging 3500 Series racks operational without committing to a full system migration. As the 3500 platform has been in service for decades, many facilities are managing racks where original modules are approaching or have exceeded their design service life. The 84152-01 as an original spare — not a third-party clone — ensures full compatibility with existing rack firmware, setpoint configurations, and relay logic without requiring re-commissioning or re-certification of the protection system.

Replacing a failed or degraded 84152-01 with an original module preserves the integrity of the machinery protection system’s safety instrumented function. In SIL-rated applications, substituting non-original components can invalidate the SIL certification and create compliance exposure. Original spares eliminate this risk entirely.

For facilities transitioning from older Bently Nevada rack generations, the 84152-01 also provides a bridge strategy: maintaining the existing 3500 rack in service while capital planning for a next-generation system proceeds. This approach reduces unplanned capital expenditure, extends the useful life of the existing protection infrastructure, and allows maintenance teams to schedule system upgrades during planned outages rather than emergency shutdowns.

Each 84152-01 unit shipped from TOPNLMS is functionally tested prior to dispatch, documented with a test record, and covered by a 12-month quality warranty. This provides procurement teams with the confidence needed to approve spare parts purchases without requiring on-site vendor inspection.
