Bently Nevada 84145-01 Replacement for 3500 Series

Product Overview

Bently Nevada 84145-01 Replacement for 3500 Series: Seamless Transition from Legacy Vibration Monitoring Systems

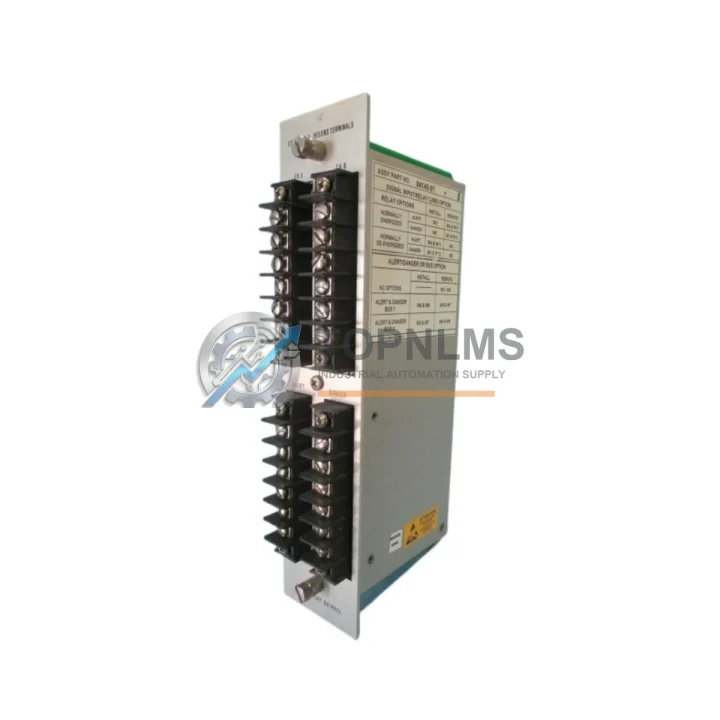

The Bently Nevada 84145-01 Seismic Dual Epoxy Relay is a critical output relay module within the 3500 Series Machinery Protection System platform. As industrial facilities worldwide face the challenge of maintaining aging condition monitoring infrastructure, the 84145-01 has become one of the most sought-after replacement and upgrade components for engineers managing turbine, compressor, pump, and generator protection systems. Whether your existing relay module has failed, is approaching end-of-life, or your plant is executing a broader 3500 Series rack modernization, this replacement unit delivers a verified drop-in solution with full backward compatibility.

The 3500 Series platform is widely deployed across oil & gas, petrochemical, power generation, and heavy manufacturing facilities. Its modular rack architecture means that replacing a single module—such as the 84145-01 relay output card—does not require a full system overhaul. Engineers familiar with the 3500/20 Rack Interface Module, the 3500/22M Transient Data Interface, or the 3500/42M Proximitor/Seismic Monitor will immediately recognize the form factor and terminal block wiring conventions of the 84145-01. The relay outputs are fully compatible with existing field wiring, eliminating the need for panel rewiring or cable rerouting during the swap.

Compatibility Comparison Table

Seamless Upgrade Solutions: Migration-Ready Components for 3500 Series Modernization

A successful 84145-01 relay module replacement rarely occurs in isolation. In most plant retrofit scenarios, the relay output card is one element within a broader 3500 Series rack that may also require attention to adjacent modules. During the migration process, engineers commonly address the 3500/42M Proximitor/Seismic Monitor, which provides the conditioned vibration signal that drives the relay outputs. If the 3500/42M is also aging or showing calibration drift, replacing it alongside the 84145-01 ensures the entire signal chain—from transducer to relay trip output—is restored to factory specification.

Power integrity is equally critical. The 3500/15 Power Supply Module or the redundant 3500/05 Power Supply must be verified as stable before commissioning the replacement relay card. A marginal power supply can cause intermittent relay chatter or false trips, masking the root cause of the original failure. Similarly, the 3500/20 Rack Interface Module governs communication between the rack and the host DCS or SCADA system via Modbus TCP or OPC-DA; confirming its firmware version and communication health before and after the relay swap prevents unexpected alarm floods at the control room level.

For facilities running Ethernet-based condition monitoring networks, the 3500/92 Communication Gateway Module bridges the 3500 rack to plant-level Ethernet infrastructure. If the migration plan includes upgrading from serial Modbus RTU to Modbus TCP or EtherNet/IP, the 3500/92 is the logical companion upgrade to the 84145-01 relay replacement. This combination allows the plant to retain the existing 3500 rack hardware investment while modernizing the data acquisition and alarm management layer.

In applications where the seismic relay output feeds a safety instrumented system (SIS), the field wiring between the 84145-01 terminal block and the SIS input card must be verified for continuity and insulation resistance before re-energizing. Terminal blocks, cable shields, and grounding connections within the control cabinet should be inspected as part of the standard commissioning checklist. If the existing I/O marshalling panel uses WAGO or Phoenix Contact terminal blocks, these are fully compatible with the 84145-01 wiring scheme and require no modification.

Plants executing a phased migration from older Bently Nevada 7200 Series or 3300 Series monitors to the 3500 platform will find the 84145-01 relay module a natural entry point. The 3500 Series rack accepts a mix of monitor and relay modules, allowing engineers to migrate one measurement channel at a time without taking the entire protection system offline. This incremental approach minimizes production risk and allows maintenance teams to validate each channel before proceeding to the next, significantly reducing total planned downtime.

Retrofit Guidance FAQ

Q: Can I replace the 84145-01 without rewiring the field terminals?
A: Yes. The 84145-01 uses a standard 3500 Series terminal block interface. The replacement module accepts the same field wiring connector. Remove the existing module, insert the replacement, and reconnect the terminal block. No field cable modification is required.

Q: Do I need to reprogram the rack after installing the replacement module?
A: In a direct like-for-like swap, the rack configuration stored in the 3500/20 Rack Interface Module is retained. The replacement 84145-01 will inherit the existing relay setpoints and logic. However, it is best practice to verify the configuration using Rack Configuration Software (RCS) after installation to confirm all parameters are correctly applied.

Q: Is the 84145-01 compatible with both the standard and enhanced 3500 rack?
A: The 84145-01 is designed for the standard 3500 Series rack. Compatibility with enhanced or upgraded rack variants should be confirmed against the rack’s hardware revision. Contact our technical team with your rack serial number for confirmation prior to ordering.

Q: What communication protocols does the 3500 rack support after this relay replacement?
A: The relay module itself does not handle communication—it is a hardwired output device. The rack’s communication capability is determined by the 3500/92 or 3500/20 modules. Supported protocols include Modbus RTU, Modbus TCP, OPC-DA, and EtherNet/IP depending on the communication module installed.

Q: Can this module be installed in a live rack without a full system shutdown?
A: Hot-swap capability depends on the specific rack configuration and whether the slot is isolated. In most 3500 installations, individual module replacement can be performed with the rack powered, but the associated measurement channel will be offline during the swap. Consult your plant safety procedures and the 3500 Series installation manual before performing live maintenance.

Q: What is the physical installation space requirement?
A: The 84145-01 occupies a standard 2-slot position in the 3500 Series rack. No panel modification, DIN rail adaptation, or additional mounting hardware is required.

Q: How do I verify the replacement module is functioning correctly after installation?
A: After installation, use RCS to perform a relay output test. Verify that the relay contacts operate correctly at the configured setpoints. Check the front-panel LED indicators for normal status. Confirm that the DCS or SIS receives the expected relay state via the field wiring.

Warranty Assurance

Every 84145-01 Seismic Dual Epoxy Relay shipped by TOPNLMS is covered by a 12-month warranty from the date of shipment. Prior to dispatch, each unit undergoes functional verification including relay contact continuity testing, insulation resistance check, and visual inspection for physical damage. Units that do not meet our outgoing quality standard are quarantined and not shipped.

In the event of a warranty claim, TOPNLMS provides a replacement unit or full refund based on the nature of the defect and the customer’s preference. Our after-sales response target is within 24 business hours of claim submission. Warranty coverage applies to manufacturing defects and verified functional failures under normal operating conditions. It does not cover damage resulting from incorrect installation, overvoltage, or physical mishandling.

For urgent plant breakdown situations, TOPNLMS maintains ready stock of high-demand 3500 Series modules including the 84145-01 to support expedited shipment. Standard lead time from order confirmation to dispatch is 1–3 business days. Express shipping options are available for critical plant downtime scenarios. All units are shipped with appropriate ESD protection packaging and export documentation.

For procurement inquiries, technical pre-sales questions, or warranty claims, contact our industrial automation team directly.
