Bently Nevada 81546-01 Original Industrial Spare 3500 Compatible

Product Overview

Bently Nevada 81546-01 Original Industrial Spare 3500 Compatible: System Stability & Industrial Spare Parts Maintenance Value

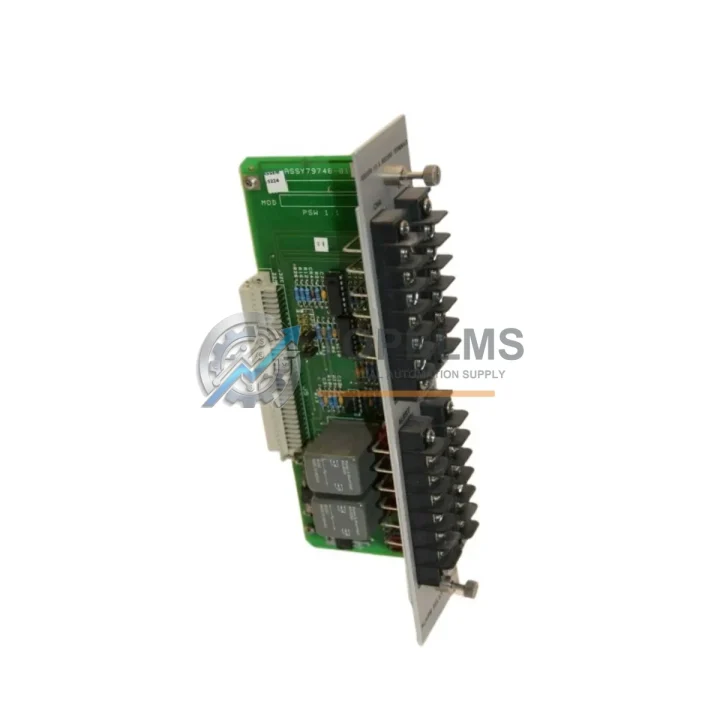

The Bently Nevada 81546-01 Relay Output Module is a critical spare component within the 3500 Series Machinery Protection System — one of the most widely deployed continuous vibration monitoring platforms in rotating machinery applications worldwide. Whether you are managing a planned shutdown, responding to an unplanned trip, or building a strategic spare parts inventory for long-running industrial assets, the 81546-01 is a high-priority line item that directly governs system uptime and alarm relay integrity.

In process industries including oil & gas, petrochemical, power generation, pulp & paper, and heavy manufacturing, the 3500 rack-based monitoring system is often the last line of defense before catastrophic machinery failure. The relay output module translates vibration, position, and process variable alarm states into discrete relay contacts that drive shutdown logic, annunciator panels, and DCS interlock inputs. A failed or degraded 81546-01 can silently compromise your entire protection loop — making verified original spares and proactive replacement cycles essential to any responsible maintenance program.

Critical Technical Specs Table

Preventive Maintenance Strategy

Relay output modules are among the most mechanically active components in a protection rack — relay coils cycle with every alarm event, contact surfaces accumulate micro-arcing deposits over time, and vibration in plant environments accelerates connector wear. A disciplined preventive maintenance strategy for any 3500 Series installation should treat the 81546-01 as a scheduled replacement item rather than a run-to-failure component.

During a planned outage or annual machinery inspection, technicians should simultaneously audit the full protection rack. The 3500/20 Rack Interface Module governs backplane power distribution and should be inspected for capacitor aging and connector oxidation — a degraded rack interface can cause intermittent relay chatter that is often misdiagnosed as a field wiring fault. Alongside the relay module, the 3500/15 Power Supply Module (or its redundant pair) should be load-tested; an under-voltage power supply is the single most common root cause of spurious relay trips in 3500 systems.

For installations monitoring radial vibration on rotating shafts, the 3500/40M Proximitor/Seismic Monitor and its paired 3300 XL 8mm Proximity Transducer assemblies should be inspected for cable jacket integrity, connector seating, and gap voltage drift. Transducer gap voltage that has shifted more than ±0.5 VDC from the original commissioned value indicates mechanical wear or mounting looseness that will eventually produce nuisance trips through the relay output module. Replacing the 81546-01 without correcting an upstream transducer fault will not resolve the root cause.

In control cabinets housing 3500 racks, it is good practice to simultaneously inspect the terminal blocks and field wiring marshalling panels connected to the relay output contacts. Loose terminations on relay output wiring are a leading cause of intermittent DCS interlock failures. If the installation uses a 3500/92 Communication Gateway Module for Modbus or OPC integration, firmware version compatibility with the current rack configuration should be verified during the same maintenance window.

For facilities managing multiple 3500 racks across a plant, a consolidated spare parts kit should include: the 81546-01 Relay Output Module, a 3500/15 Power Supply, at least one 3500/20 Rack Interface Module, a set of 3300 XL Proximity Transducers in the most common gap range, and a 3500/22M Transient Data Interface if transient capture is enabled. This kit covers the statistically highest-failure components and enables same-shift restoration of a tripped protection channel without waiting for expedited freight.

Where the 3500 system interfaces with a DCS I/O card (such as Emerson DeltaV or Honeywell Experion discrete input modules), the DCS-side input card should also be included in the inspection scope. A failed DCS input card can mask a healthy relay output, creating a false sense of protection loop integrity during functional testing.

Strategic Replacement Solutions

The Bently Nevada 3500 platform has been in continuous production and field deployment for over three decades. Many installations running 3500/40M, 3500/42M, or 3500/44M monitor modules were commissioned in the 1990s and early 2000s and are now operating well beyond their original design lifecycle. OEM new production of certain 3500 Series modules has been discontinued or placed on extended lead times as Baker Hughes rationalizes the product line toward the newer System 1 and 3701 platforms.

For maintenance teams responsible for these legacy installations, sourcing verified original spare modules — rather than attempting field repair of failed units — is the most reliable path to restoring protection loop integrity. The 81546-01 remains available as an original spare and is fully backward-compatible with all 3500 rack generations. It does not require firmware updates or re-commissioning when installed in a rack that has been previously configured — the relay output assignments and setpoint-driven trip logic are stored in the monitor modules, not in the relay output module itself.

For sites considering a phased migration from 3500 to a newer platform, maintaining a buffer stock of 81546-01 modules provides operational insurance during the transition period. A single unplanned relay module failure during a migration project can force an unscheduled production outage that costs far more than a full spare parts inventory. Stocking two to four units per plant site is a widely adopted practice among reliability engineers managing critical rotating machinery fleets.

All units supplied by TOPNLMS are tested prior to shipment, shipped with protective packaging appropriate for sensitive electronics, and covered by a 12-month warranty from the date of shipment. Expedited shipping options are available for emergency maintenance situations.

Support FAQ

Q1: Is the 81546-01 compatible with all 3500 Series rack configurations?
Yes. The 81546-01 Relay Output Module is designed for use across the full 3500 Series rack family, including the 3500/20, 3500/22M, and all standard monitor module configurations. It occupies a dedicated relay output slot and does not require rack-specific firmware or configuration changes upon installation.

Q2: How is the module tested before shipment?
Each 81546-01 unit undergoes functional verification prior to shipment, including relay coil actuation testing, contact continuity verification across all four output channels, and visual inspection for connector and PCB integrity. A test report is available upon request for quality-critical procurement processes.

Q3: What is the warranty coverage and what does it include?
All units carry a 12-month warranty from the date of shipment. The warranty covers manufacturing defects and functional failures under normal operating conditions. It does not cover damage resulting from incorrect installation, overvoltage events, or physical mishandling. Warranty claims are processed with priority turnaround to minimize maintenance downtime.

Q4: Can I use the 81546-01 as a direct replacement for a failed unit without re-commissioning the rack?
In most cases, yes. The relay output module is a passive output device — alarm setpoints, relay assignments, and trip logic are configured in the upstream monitor modules and stored in non-volatile memory. Replacing the 81546-01 with a verified original spare typically restores full relay output functionality without requiring rack re-configuration. It is recommended to perform a functional trip test after installation to confirm relay contact operation before returning the protection loop to service.
