Bently Nevada 81545-01 Ruggedized Signal Input Alarm Output Module

Product Overview

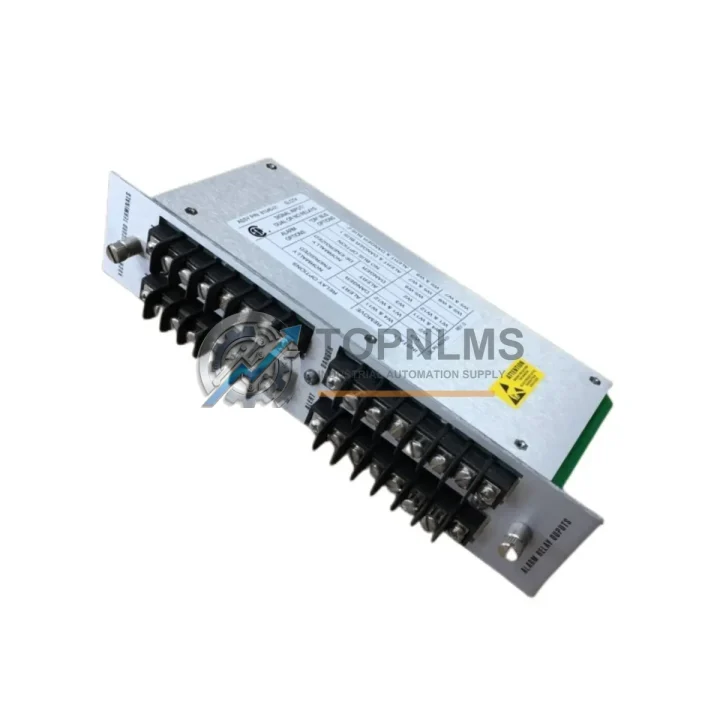

Bently Nevada 81545-01 Ruggedized Signal Input Alarm Output Module for Harsh Environments

The Bently Nevada 81545-01 is a precision-engineered Signal Input/Alarm Output Module designed for the Bently Nevada 3500 Series machinery protection system — one of the most trusted continuous vibration monitoring platforms deployed across critical industrial infrastructure worldwide. Built to operate reliably in the most demanding environments, this module delivers stable signal acquisition and deterministic alarm output even under conditions of extreme temperature variation, high humidity, airborne particulate contamination, mechanical vibration, and intense electromagnetic interference.

In continuous production environments — from offshore oil platforms and underground mining operations to high-temperature steel mills and chemical processing plants — unplanned machinery downtime is not an option. The 81545-01 is engineered to eliminate that risk. It integrates seamlessly into the 3500 rack-based architecture, accepting transducer signals from proximity probes, velocity sensors, and accelerometers, then processing and routing alarm outputs to the plant’s safety and control layer with sub-millisecond response latency. This makes it a critical front-line component in any machinery health monitoring strategy.

When deployed alongside the Bently Nevada 3500/22M Transient Data Interface and the 3500/42M Proximitor/Seismic Monitor, the 81545-01 forms a tightly integrated signal chain that captures shaft displacement, bearing vibration, and casing acceleration data in real time. The alarm outputs interface directly with plant-level safety PLCs — including Rockwell Automation ControlLogix and Siemens S7-400H redundant controllers — enabling automated protective shutdown sequences before catastrophic mechanical failure occurs.

In high-voltage switchgear rooms and motor control centers where electromagnetic interference is a persistent challenge, the 81545-01’s shielded signal input circuitry maintains measurement integrity without signal drift or false alarms. This is particularly valuable in facilities where large variable frequency drives (VFDs), high-capacity power transformers, and arc flash-rated switchgear operate in close proximity to the monitoring system. The module’s galvanic isolation architecture prevents ground loops that would otherwise corrupt vibration readings and trigger nuisance trips.

For facilities managing rotating equipment such as centrifugal compressors, steam turbines, boiler feed pumps, and cooling tower fans, the 81545-01 provides the alarm relay outputs needed to interface with the plant’s distributed control system (DCS) — whether that is a Honeywell Experion PKS, Emerson DeltaV, or ABB System 800xA. The module’s dry-contact relay outputs are compatible with standard 24 VDC and 120/240 VAC control circuits, making integration into existing control cabinet wiring straightforward without additional signal conditioning hardware.

Procurement engineers and maintenance planners will find the 81545-01 to be a direct, pin-compatible replacement for aging modules within existing 3500 Series racks, eliminating the need for rack reconfiguration or firmware re-commissioning. TOPNLMS maintains verified stock of this module, with each unit undergoing functional verification prior to shipment. All units are supplied with a 12-month warranty covering manufacturing defects and functional performance, supported by pre-shipment inspection documentation available upon request.

Whether you are building out a new machinery protection system, replacing a failed module on an emergency basis, or stocking critical spares for a planned turnaround, the Bently Nevada 81545-01 is available for prompt dispatch. Our technical team can assist with compatibility verification against your existing 3500 rack configuration, including slot assignment, I/O mapping, and System 1 software integration guidance.

Rugged Specifications Table

Comprehensive Protection Solutions

The 81545-01 does not operate in isolation — it is one node in a layered machinery protection architecture. In a typical turbomachinery protection panel, it works in concert with the Bently Nevada 3500/15 Power Supply Module, which provides regulated, isolated DC power to the entire rack, ensuring that voltage transients on the plant bus do not propagate into the monitoring system. The 3500/20 Rack Interface Module (RIM) manages communication between the rack and the host System 1 software, while the 3500/32 4-Channel Relay Module provides additional alarm relay capacity for multi-channel protection schemes on large rotating machines.

For shaft position and radial vibration monitoring on compressors and turbines, the 81545-01 is typically paired with Bently Nevada 3300 XL 8mm Proximity Transducer Systems and the 3500/40M Proximitor/Seismic Monitor. In applications requiring axial position monitoring — critical for thrust bearing protection on centrifugal compressors — the 3500/45 Position Monitor complements the signal input capabilities of the 81545-01 by providing dedicated thrust position alarm channels.

At the control cabinet level, the alarm relay outputs from the 81545-01 connect to safety relay modules such as the Phoenix Contact PSR-SCP series or Pilz PNOZ X safety relays, which provide IEC 62061-compliant safety function execution for emergency shutdown (ESD) circuits. Terminal blocks from the Weidmüller KLIPPON series or Phoenix Contact PTFIX distribution blocks are commonly used to fan out the relay signals to multiple downstream consumers — including the plant DCS, the local annunciator panel, and the fire and gas system.

For facilities integrating the 3500 system into a Profibus DP or Modbus RTU network, the Bently Nevada 3500/92 Communication Gateway Module bridges the proprietary rack backplane to standard industrial fieldbus protocols, enabling the 81545-01’s alarm states to be read directly by the plant SCADA system without additional protocol converters.

Application in Critical Infrastructure

The Bently Nevada 81545-01 is deployed across the full spectrum of heavy industry and critical infrastructure sectors where rotating machinery reliability is non-negotiable.

In oil and gas upstream and midstream facilities — including gas compression stations, LNG liquefaction trains, and offshore production platforms — the 81545-01 monitors the vibration signatures of high-speed centrifugal compressors and gas turbine drivers. Its alarm outputs feed directly into the facility’s Safety Instrumented System (SIS), triggering automatic shutdown before bearing failure or rotor rub events escalate to catastrophic equipment loss or personnel injury.

In coal-fired and combined-cycle power generation plants, the module provides continuous protection for steam turbine-generator sets, boiler feed pumps, and induced draft fans. Utilities operating under NERC CIP and IEC 61511 functional safety requirements rely on the 3500 Series — and the 81545-01 specifically — to demonstrate compliance with machinery protection requirements during regulatory audits.

In mining and mineral processing operations, where crusher drives, ball mill pinion bearings, and slurry pump shafts operate under extreme radial loads in dusty, wet environments, the 81545-01’s robust signal conditioning maintains measurement accuracy even when proximity probe cables are routed through cable trays exposed to water ingress and abrasive dust. The module’s alarm outputs interface with the mine’s PLC-based conveyor interlock system, halting material flow automatically when a monitored bearing approaches its vibration alarm threshold.

In water and wastewater treatment facilities, the 81545-01 protects the large vertical turbine pumps and centrifugal blowers that are the backbone of continuous treatment operations. Municipal utilities operating under 24/7 service obligations cannot afford unplanned pump outages; the 81545-01 provides the early warning margin needed to schedule predictive maintenance during planned downtime windows rather than reacting to emergency failures.

In steel and aluminum smelting operations, where ambient temperatures routinely exceed 50°C and electromagnetic noise from arc furnaces and rectifier banks is severe, the 81545-01’s thermal tolerance and EMI immunity make it one of the few monitoring modules capable of delivering reliable alarm performance without frequent recalibration or nuisance trips.

Security & Quality FAQ

Q1: What does the 12-month warranty cover, and how is a claim processed?
The 12-month warranty covers all manufacturing defects and functional performance failures under normal operating conditions. If a unit fails within the warranty period, TOPNLMS will arrange replacement or repair at no additional cost. Claims are initiated by contacting [email protected] with the order reference and a description of the fault. Return shipping instructions and a replacement dispatch are typically coordinated within 3 business days of claim receipt.

Q2: How is each unit tested before shipment?
Every Bently Nevada 81545-01 unit in our inventory undergoes functional verification prior to dispatch. This includes power-on testing, signal input continuity verification, and alarm relay output confirmation. Units that do not pass functional verification are quarantined and not offered for sale. Pre-shipment inspection reports are available upon request for customers with quality management system (QMS) documentation requirements.

Q3: Is the 81545-01 compatible with my existing 3500 rack and System 1 software version?
The 81545-01 is designed for the Bently Nevada 3500 Series rack architecture and is compatible with all standard 3500 rack configurations. Compatibility with specific System 1 software versions depends on your installed firmware revision. Our technical team can assist with compatibility verification — please provide your rack model, existing module list, and System 1 software version when inquiring. We do not recommend slot substitution without prior compatibility confirmation.

Q4: Can TOPNLMS support long-term supply and emergency replacement needs?
Yes. TOPNLMS maintains ongoing stock of the Bently Nevada 81545-01 and other 3500 Series modules to support both planned spare parts programs and emergency breakdown replacement scenarios. For customers managing multi-site operations or long-term maintenance contracts, we can discuss reserved stock arrangements and priority dispatch agreements. Contact our team at [email protected] or call +86 18359293191 to discuss your supply continuity requirements.
