Bently Nevada 3500/93 135799-01 Original Industrial Spare — System Stability for 3500 Series MPS

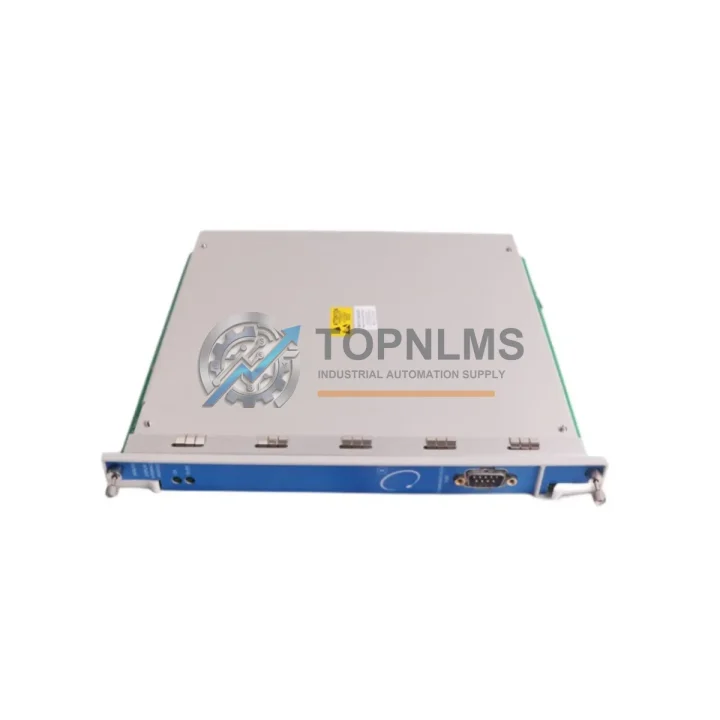

The Bently Nevada 3500/93 135799-01 is an original System Display Module (SDM) engineered for the Bently Nevada 3500 Series Machinery Protection System (MPS). As a front-panel display and operator interface component within the 3500 rack architecture, this module plays a critical role in real-time vibration monitoring, system status indication, and alarm annunciation for rotating machinery protection in heavy industrial environments.

In facilities operating turbines, compressors, pumps, and generators, the 3500 Series MPS is the backbone of continuous condition monitoring. When the System Display Module fails or degrades, operators lose visibility into critical machinery health data — a situation that can escalate rapidly from a nuisance alarm to an unplanned shutdown. Stocking the 3500/93 135799-01 as a verified spare ensures your maintenance team can restore full system visibility within minutes, not days.

This unit is sourced as an original Bently Nevada component, fully tested prior to shipment, and backed by a 12-month warranty. It is compatible with standard 3500 Series rack configurations and requires no firmware modification for drop-in replacement in most installations.

Critical Technical Specs

Preventive Maintenance Strategy

A scheduled inspection of your 3500 Series rack should never be limited to a single module. The 3500/93 135799-01 System Display Module interfaces directly with the rack’s communication bus and power distribution network, meaning its performance is interdependent with several adjacent components. During any planned maintenance window or corrective replacement, experienced maintenance engineers recommend a concurrent audit of the following systems:

The Bently Nevada 3500/15 Power Supply Module is the first component to verify. A degraded or aging power supply introduces voltage ripple that can cause erratic display behavior or false alarms on the SDM — symptoms often misdiagnosed as a display module fault. Replacing or bench-testing the power supply alongside the SDM eliminates this ambiguity.

Next, inspect the 3500/22M Transient Data Interface (TDI) and any installed 3500/40M Proximitor/Seismic Monitor Modules. These modules feed real-time vibration and position data to the display system. If transducer signal integrity is compromised — due to worn 3300 XL 8mm Proximitor sensor cables or corroded field wiring — the SDM will display inaccurate readings even after replacement. Verifying cable continuity and connector seating at the I/O terminal blocks is a mandatory step.

The 3500/20 Rack Interface Module (RIM) governs communication between the rack and the host DCS or SCADA system. A failing RIM can prevent the replacement SDM from registering correctly on the network. Confirm RIM firmware compatibility and communication link status before closing out the work order.

For facilities running extended maintenance cycles, it is also advisable to inspect the 3500/32 4-Channel Relay Module and associated relay output wiring. Relay contacts that have experienced repeated trip events may exhibit increased contact resistance, reducing the reliability of shutdown signals. Pairing a relay module inspection with an SDM replacement is a cost-effective use of an open maintenance window.

Finally, review the condition of the 3500 Series rack backplane connectors and any installed 3500/05 Rack Configuration Module. Oxidized backplane pins are a common root cause of intermittent module communication faults in high-humidity or coastal industrial environments. A contact cleaning protocol using approved electrical contact cleaner, combined with torque verification on all terminal screws, significantly extends the service life of the entire rack assembly.

Proactive spare stocking of the above components — particularly the power supply, relay module, and proximitor cables — reduces mean time to repair (MTTR) and supports a robust predictive maintenance program aligned with ISO 13373 vibration monitoring standards.

Strategic Replacement Solutions

The 3500/93 135799-01 is a direct replacement for aging or failed System Display Modules within existing 3500 Series rack installations. Because Bently Nevada’s 3500 platform has been deployed globally for decades, many facilities are operating racks that are no longer supported under active OEM service contracts. In these environments, sourcing original spare parts from qualified industrial distributors is the most practical strategy for extending system life without the capital expenditure of a full platform migration.

This module maintains full backward compatibility with all standard 3500 rack configurations. No rack reconfiguration, firmware update, or recalibration of connected monitor modules is required for a standard swap. Maintenance technicians can complete the replacement during a planned outage window with minimal documentation overhead, provided the replacement unit has been pre-tested and verified against the original part number.

For facilities managing multiple 3500 racks across a plant — common in refineries, LNG terminals, and power generation facilities — maintaining a minimum of one verified spare SDM per rack cluster is a recognized best practice. This approach eliminates single-point-of-failure risk at the display and operator interface layer, ensuring that a module fault never becomes the limiting factor in a machinery protection decision.

TOPNLMS supplies the 3500/93 135799-01 with full pre-shipment electrical testing, original packaging where available, and a 12-month warranty covering manufacturing defects and functional failures. Express international shipping is available to support urgent maintenance requirements.

Support FAQ

Q1: Is the 3500/93 135799-01 compatible with all 3500 Series rack configurations?
The 3500/93 135799-01 is designed for use within the standard Bently Nevada 3500 Series rack architecture. It is compatible with the majority of 3500 rack configurations. For installations with non-standard rack configurations or custom firmware, we recommend confirming the rack slot assignment and software revision with your maintenance documentation before installation.

Q2: What testing is performed before shipment?
Each unit undergoes functional electrical testing prior to shipment to verify display operation, communication bus integrity, and power input performance. A test report is available upon request. Units are shipped in anti-static packaging to prevent ESD damage during transit.

Q3: What does the 12-month warranty cover?
The warranty covers manufacturing defects and functional failures under normal operating conditions for 12 months from the date of shipment. It does not cover damage resulting from incorrect installation, overvoltage events, or physical mishandling. Warranty claims are processed with return shipment coordination through TOPNLMS.

Q4: How should I manage spare inventory for a multi-rack 3500 installation?
For facilities with three or more 3500 racks, a recommended minimum spare inventory includes one SDM (3500/93), one power supply module (3500/15), and one rack interface module (3500/20) per rack cluster. This configuration covers the three most common single-module failure scenarios and supports a target MTTR of under two hours for display and communication faults.
