Bently Nevada 3500/92-3500/93 Ruggedized Proximitor Sensor Module

Product Overview

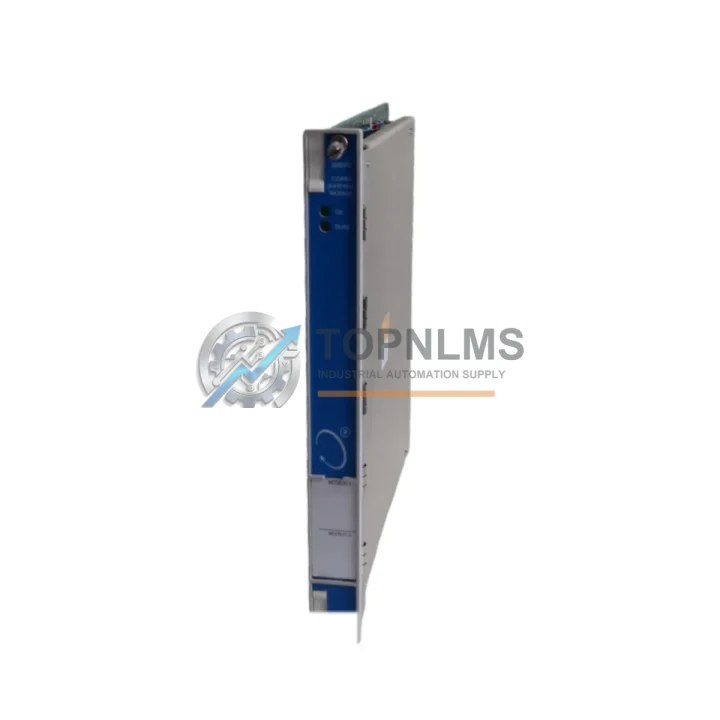

Bently Nevada 3500/92-3500/93 Ruggedized Proximitor Sensor Module: Industrial Resilience for Harsh Environments

The Bently Nevada 3500/92 and 3500/93 Proximitor Sensor Modules are precision eddy-current signal conditioners engineered for continuous, reliable operation in the most demanding industrial environments. Designed as core components of the Bently Nevada 3500 Series Machinery Protection System, these modules deliver real-time vibration, position, and speed measurements critical to rotating machinery health monitoring in oil & gas, power generation, mining, metallurgy, and heavy process industries.

Built to withstand high temperatures, high humidity, airborne particulates, mechanical vibration, and intense electromagnetic interference, the 3500/92 and 3500/93 modules maintain signal integrity where conventional instrumentation fails. Their ruggedized housing and conformal-coated PCB assemblies resist corrosive atmospheres and condensation ingress, making them the preferred choice for offshore platforms, compressor stations, turbine halls, and continuous production lines where unplanned downtime carries catastrophic operational and safety consequences.

Rugged Specifications Table

Comprehensive Protection Solutions

The 3500/92 and 3500/93 Proximitor modules are rarely deployed in isolation — they form the sensing backbone of a fully integrated machinery protection architecture. Within the same 3500 rack, the Bently Nevada 3500/40M Proximitor/Seismic Monitor handles dual-channel radial vibration and position monitoring, while the 3500/50 Tachometer Module provides precise shaft speed and phase reference signals essential for balancing and diagnostic analysis. For temperature-critical applications such as bearing monitoring on large compressors or steam turbines, the 3500/60 Temperature Monitor complements the proximity data with thermocouple and RTD inputs.

On the power and communications side, the 3500/15 Power Supply Module delivers clean, regulated –24 VDC to the entire rack, ensuring that signal conditioners like the 3500/92 and 3500/93 receive stable excitation voltage even during grid fluctuations common in heavy industrial facilities. The 3500/22M Transient Data Interface (TDI) captures high-speed waveform data for advanced diagnostics, while the 3500/92 System 1 Evolution software integration enables remote condition monitoring and predictive maintenance workflows across distributed plant assets.

In control cabinet environments, these Proximitor modules interface seamlessly with Rockwell Automation ControlLogix PLCs and Emerson DeltaV DCS systems via hardwired 4–20 mA outputs or through the rack’s Modbus TCP gateway, enabling centralized SCADA visibility. Complementary safety instrumentation — including Pilz PNOZ safety relays and Phoenix Contact safety I/O modules — can be wired in parallel to enforce SIL-rated shutdown logic when vibration thresholds are exceeded. For installations requiring intrinsic safety barriers in Zone 1 or Zone 2 hazardous areas, MTL Instruments Zener barriers and Pepperl+Fuchs galvanic isolators are commonly paired with the 3500-series field probes to maintain ATEX and IECEx compliance throughout the signal loop.

Application in Critical Infrastructure

In oil and gas upstream and midstream operations, the Bently Nevada 3500/92 and 3500/93 modules protect gas compressors, centrifugal pumps, and pipeline booster stations from catastrophic bearing failures. Offshore platforms operating in salt-laden, high-humidity atmospheres rely on the 3500 Series’ proven EMI immunity and corrosion-resistant construction to maintain continuous vibration surveillance without false trips that could halt production.

In coal-fired and combined-cycle power plants, these Proximitor modules monitor steam turbine shaft eccentricity, rotor position, and differential expansion — parameters that directly govern safe startup and shutdown sequences. A single undetected shaft rub event can cause multi-million-dollar rotor damage; the 3500/92 and 3500/93 provide the microsecond-level response times needed to trigger protective relay action before mechanical contact escalates.

In mining and mineral processing, where ball mills, SAG mills, and large slurry pumps operate under extreme mechanical loading and pervasive silica dust, the ruggedized probe-and-conditioner architecture of the 3500 Series withstands vibration levels and contamination that would compromise lesser instrumentation. Similarly, in metallurgical and steel-making facilities, the modules endure radiated heat from furnaces and induction equipment while maintaining calibration accuracy critical to continuous casting line protection.

Water and wastewater treatment plants operating large centrifugal blowers and high-speed pumps benefit from the 3500/92’s ability to detect early-stage imbalance and misalignment, enabling condition-based maintenance scheduling that reduces unplanned outages and extends asset life in facilities where redundancy is limited.

Security & Quality FAQ

Q1: What warranty coverage is provided with the Bently Nevada 3500/92 and 3500/93 modules?
All units supplied by TOPNLMS carry a 12-month warranty from the date of shipment. This covers functional defects under normal operating conditions. Each module undergoes pre-shipment functional testing and visual inspection to verify output signal integrity, connector condition, and firmware version compatibility before dispatch.

Q2: How are modules tested before shipment, and what documentation is provided?
Every 3500/92 and 3500/93 unit is bench-tested against Bently Nevada’s published output specifications prior to packaging. Test records confirming signal output, power consumption, and channel response are available upon request. Units are shipped in anti-static packaging with appropriate cushioning to prevent transit damage. Certificate of conformance documentation can be provided for quality-system requirements.

Q3: Are these modules compatible with existing 3500 Series racks and legacy Bently Nevada systems?
Yes. The 3500/92 and 3500/93 are designed for direct installation into any standard Bently Nevada 3500 rack (including the 3500/05, 3500/15, and 3500/20 rack variants) without hardware modification. They are backward-compatible with existing field probes, extension cables, and System 1 software configurations. For mixed-generation installations, compatibility with specific firmware revisions should be confirmed against your rack’s configuration record.

Q4: Can long-term supply and replacement support be guaranteed for critical plant spares programs?
TOPNLMS maintains dedicated inventory of Bently Nevada 3500 Series modules to support planned maintenance shutdowns, emergency replacements, and multi-year spares agreements. We serve industrial buyers requiring reliable, repeatable sourcing for critical rotating machinery protection components. For volume procurement, scheduled delivery programs, or site-specific compatibility verification, contact our technical sales team directly.
