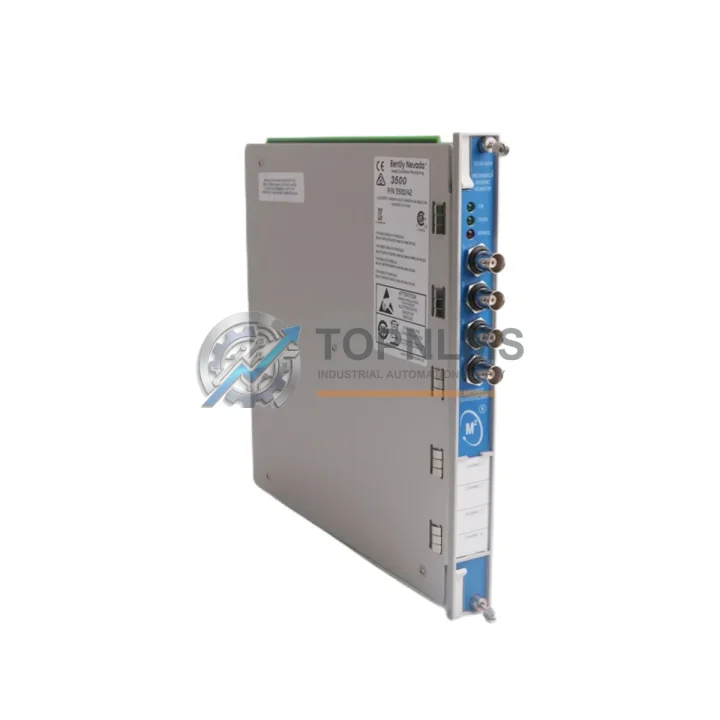

Bently Nevada 3500/42M Ruggedized Vibration Monitor Module: Industrial Resilience for the Harshest Environments

The Bently Nevada 3500/42M is a high-precision proximity and seismic vibration monitor module engineered for continuous, uninterrupted operation in the most demanding industrial environments. As a core component of the Bently Nevada 3500 Series Machinery Protection System, the 3500/42M delivers real-time vibration measurement, shaft displacement monitoring, and seismic velocity detection — all within a ruggedized, rack-mounted form factor designed to withstand high temperatures, humidity, mechanical shock, and electromagnetic interference (EMI) common in heavy industry and critical infrastructure facilities.

Whether deployed in a rotating machinery protection rack on an offshore oil platform, a gas compression station, a coal-fired power plant, or a high-vibration mining environment, the 3500/42M maintains measurement accuracy and system integrity where lesser instrumentation fails. Its dual-channel architecture supports both radial and axial vibration inputs from Bently Nevada proximity probes (such as the 3300 XL 8mm series), enabling comprehensive shaft monitoring without additional signal conditioning hardware.

Rugged Specifications Table

Comprehensive Protection Solutions

The 3500/42M does not operate in isolation — it is the sensing and decision-making heart of a broader machinery protection architecture. In a typical turbomachinery protection rack, the 3500/42M works in concert with the Bently Nevada 3500/22M Transient Data Interface (TDI) module, which captures high-resolution transient waveform data during startup and shutdown events, providing engineers with the diagnostic depth needed to distinguish mechanical looseness from rotor imbalance or misalignment.

Upstream signal integrity is maintained by the Bently Nevada 3500/05 Rack Power Supply and the 3500/15 Power Supply Input Module, which deliver clean, regulated DC power to all modules in the chassis — a critical requirement in environments where utility power quality is compromised by heavy motor loads, arc furnaces, or variable-frequency drives (VFDs). The 3500/20 Rack Interface Module (RIM) manages communication between the rack and the plant DCS or SCADA system, supporting Modbus RTU, Modbus TCP/IP, and other industrial protocols to ensure that vibration alarm states are visible to operators in the central control room in real time.

For facilities running Emerson DeltaV or Honeywell Experion DCS platforms, the 3500/42M integrates seamlessly via the RIM’s serial and Ethernet communication ports, feeding live vibration data into process historian databases and enabling condition-based maintenance (CBM) strategies. In Siemens S7-300 or S7-400 PLC-based control architectures, the 4–20 mA analog outputs from the 3500/42M can be wired directly into Siemens SM 331 analog input modules, preserving full measurement resolution without protocol conversion overhead.

Complementing the vibration monitoring layer, the Bently Nevada 3500/40M Proximitor I/O Module provides the physical interface between the field-mounted proximity probes and the monitor module, offering galvanic isolation and signal buffering that protects the 3500/42M from transient overvoltages caused by nearby welding operations or lightning-induced surges on cable runs. For temperature-critical applications such as steam turbine bearing housings, the Bently Nevada 3500/60 Temperature Monitor Module can be installed in the same rack to provide simultaneous vibration and temperature alarming — a combination mandated by API 670 for Category I and Category II machinery.

In safety-instrumented system (SIS) architectures governed by IEC 61511, the 3500/42M’s relay outputs can be wired into a Pilz PNOZ or Rockwell Allen-Bradley GuardLogix safety PLC to trigger emergency shutdown (ESD) sequences when vibration levels exceed danger setpoints, ensuring that the protection layer remains independent of the basic process control system (BPCS) as required by functional safety standards.

Application in Critical Infrastructure

The Bently Nevada 3500/42M has earned its place as the de facto standard for machinery protection in critical infrastructure worldwide. In oil and gas upstream and midstream operations — including gas compressor stations, LNG liquefaction trains, and offshore platform turbogenerators — the 3500/42M monitors shaft vibration and seismic activity continuously, providing the early warning necessary to prevent catastrophic bearing failures that could result in unplanned shutdowns, hydrocarbon releases, or personnel injury.

In coal-fired and combined-cycle power plants, the module is installed on steam turbines, gas turbines, boiler feed pumps, and induced-draft fans — all rotating assets where vibration excursions are the primary leading indicator of mechanical degradation. The 3500/42M’s API 670-compliant design ensures that it meets the machinery protection requirements specified by plant insurers and regulatory bodies, reducing liability exposure and supporting compliance with OSHA PSM (Process Safety Management) regulations in the United States and equivalent frameworks internationally.

In mining and mineral processing environments, where dust ingress, mechanical shock from blasting, and wide ambient temperature swings are daily realities, the 3500/42M’s robust signal conditioning and EMI-hardened design maintain measurement accuracy on SAG mills, ball mills, conveyor drive motors, and slurry pumps. Its ability to detect sub-millimeter shaft displacement changes allows maintenance teams to schedule bearing replacements during planned shutdowns rather than reacting to catastrophic failures mid-shift.

For water and wastewater treatment facilities, the 3500/42M protects large centrifugal pumps and blower trains that must operate continuously to meet regulatory discharge standards. In metallurgical and steel production plants, it monitors rolling mill drives, continuous casting machine drives, and blast furnace blowers in environments where ambient temperatures can exceed 50°C and electromagnetic noise from high-current bus bars is severe.
