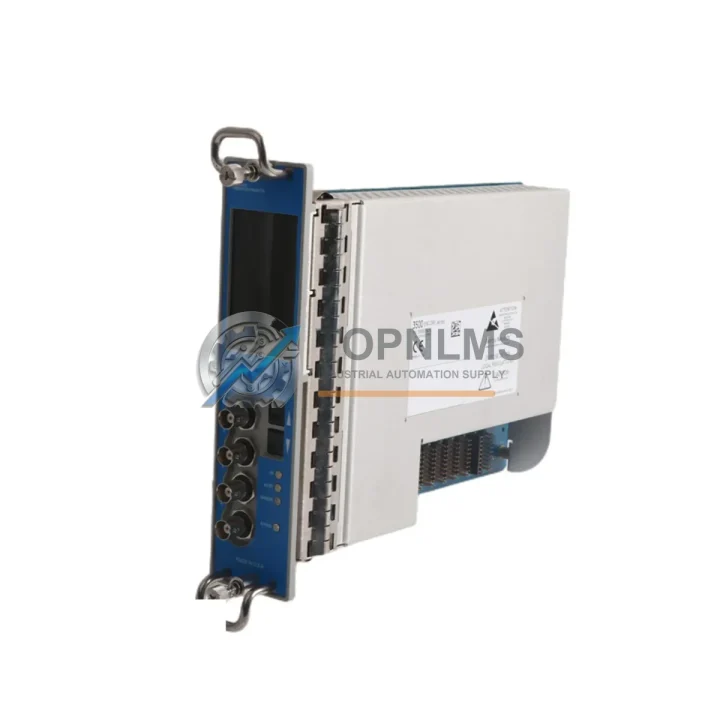

Bently Nevada 3500/42E Ruggedized Vibration Monitor Module

Product Overview

Bently Nevada 3500/42E Ruggedized Vibration Monitor Module: Industrial Resilience for Harsh Environments

The Bently Nevada 3500/42E is a dual-channel vibration monitor module engineered for continuous, uninterrupted operation in the most demanding industrial environments. As a core component of the Bently Nevada 3500 Series machinery protection system, the 3500/42E delivers precision vibration measurement and real-time machinery health monitoring across rotating equipment in oil & gas, power generation, mining, metallurgy, water treatment, and heavy manufacturing facilities.

Designed to withstand high ambient temperatures, elevated humidity, airborne particulate contamination, mechanical shock, and intense electromagnetic interference, the 3500/42E maintains measurement accuracy and signal integrity where lesser instrumentation fails. Its ruggedized architecture ensures that critical machinery protection data reaches the control system without interruption — even in the presence of variable-frequency drive (VFD) noise, high-voltage switching transients, and ground loop interference common in industrial switchgear rooms and control cabinets.

Rugged Specifications Table

Comprehensive Protection Solutions

The 3500/42E does not operate in isolation — it is the sensing and decision-making core of a broader machinery protection architecture. Within the same 3500 Series rack, it works in concert with the Bently Nevada 3500/20 Rack Interface Module, which manages system-level communication and provides the gateway to plant DCS and SCADA platforms. The 3500/15 Power Supply Module delivers clean, regulated power to the entire rack, ensuring that voltage fluctuations on the plant bus do not compromise measurement integrity.

For facilities monitoring steam turbines, compressors, or large pumps, the 3500/42E is frequently paired with the Bently Nevada 3500/45 Position Monitor Module for axial thrust measurement and the 3500/40M Proximitor I/O Module for signal conditioning of eddy-current probe arrays. Together, these modules form a complete rotating machinery protection suite capable of detecting imbalance, misalignment, bearing wear, and rotor instability before catastrophic failure occurs.

In control cabinet installations where the 3500 Series rack shares enclosure space with Siemens S7-300 or S7-400 PLC racks, Allen-Bradley ControlLogix I/O modules, or ABB AC800M DCS controllers, the 3500/42E’s isolated signal architecture prevents cross-contamination of measurement signals. Industrial power supplies such as the Phoenix Contact QUINT series or Siemens SITOP PSU300S are commonly deployed in the same cabinet to provide stable 24 VDC rail power, while Weidmüller or Phoenix Contact terminal blocks serve as the field wiring interface between the 3500/42E’s I/O connectors and the plant cable trays.

Where communication to a plant historian or safety instrumented system (SIS) is required, the Bently Nevada 3500/92 Communication Gateway Module bridges the 3500 rack to Modbus RTU, Modbus TCP/IP, or OPC DA/UA networks — enabling real-time vibration data to flow into Emerson DeltaV, Honeywell Experion, or Yokogawa CENTUM VP distributed control systems. For SIL-rated applications, the 3500/42E’s relay outputs can be wired into a Pilz PNOZ or Siemens SIRIUS safety relay to trigger emergency shutdown sequences when vibration thresholds are exceeded.

Application in Critical Infrastructure

In oil and gas upstream and midstream facilities — including offshore platforms, gas compression stations, and LNG terminals — the 3500/42E protects high-speed centrifugal compressors and gas turbines operating continuously at elevated temperatures and in classified hazardous areas. Its ability to deliver sub-millisecond alarm response ensures that a developing bearing fault or rotor rub triggers protective shutdown before secondary damage propagates to adjacent machinery trains.

In coal-fired and combined-cycle power plants, the module monitors steam turbine shaft vibration and differential expansion, providing operators with early warning of thermal distortion events during load cycling. Metallurgical plants rely on the 3500/42E to protect large rolling mill drive motors and gearboxes, where shock loads and airborne metal dust create an exceptionally hostile measurement environment. Water treatment facilities deploy it on high-capacity pump trains where undetected cavitation or impeller imbalance could result in extended service outages.

Mining operations — particularly hard-rock underground mines and open-pit copper or iron ore processing facilities — depend on the 3500/42E to monitor crusher drives, conveyor head pulleys, and slurry pump motors in environments characterized by extreme vibration, water ingress, and corrosive chemical exposure. In each of these sectors, the module’s proven field reliability translates directly into reduced unplanned downtime, lower maintenance costs, and improved personnel safety.

Security & Quality FAQ

Q1: What warranty coverage does TOPNLMS provide for the Bently Nevada 3500/42E?
Every 3500/42E unit shipped by TOPNLMS carries a 12-month warranty covering manufacturing defects and functional failures under normal operating conditions. Warranty claims are processed promptly, with replacement or repair options available to minimize your downtime exposure.

Q2: How is each unit tested before shipment?
All 3500/42E modules undergo pre-shipment functional verification, including power-on self-test confirmation, channel output signal checks, and visual inspection for connector integrity and board condition. Units that do not meet our acceptance criteria are quarantined and not offered for sale.

Q3: Is the 3500/42E compatible with my existing 3500 Series rack and System 1 software?
Yes. The 3500/42E is a standard slot-compatible module within any Bently Nevada 3500 Series rack chassis. It is fully supported by Bently Nevada System 1 condition monitoring software and is backward-compatible with existing rack configurations using 3500/20 Rack Interface Modules. Always verify firmware revision compatibility with your System 1 version before installation.

Q4: Can TOPNLMS support long-term or repeat supply of the 3500/42E?
Yes. TOPNLMS maintains ongoing inventory of Bently Nevada 3500 Series modules, including the 3500/42E, to support both emergency replacement and planned maintenance programs. We provide consistent lead times, documented traceability, and dedicated account support for industrial buyers managing multi-site spare parts programs. Contact us at [email protected] or +86 18359293191 to discuss volume pricing and stocking agreements.
