Bently Nevada 3500/25 Ruggedized Keyphasor Module for Harsh Environments

Product Overview

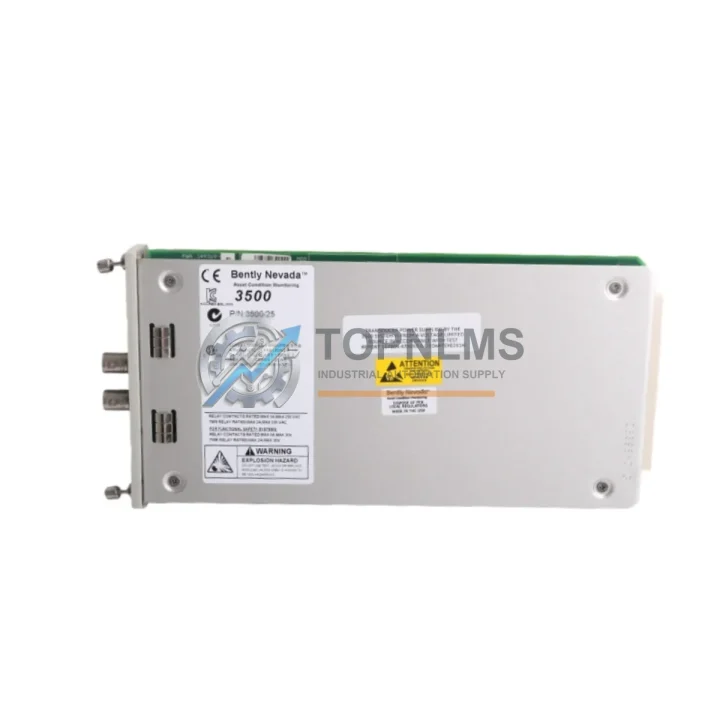

Bently Nevada 3500/25 Ruggedized Keyphasor Module: Industrial Resilience for Harsh Environments

The Bently Nevada 3500/25 Keyphasor Module is a dual-channel phase reference unit engineered for continuous, mission-critical operation within the Bently Nevada 3500 Series machinery protection rack system. Designed to withstand the extreme demands of heavy industry — including high ambient temperatures, persistent vibration, electromagnetic interference (EMI), airborne particulates, and corrosive atmospheres — the 3500/25 delivers unwavering phase reference accuracy that underpins the integrity of your entire rotating machinery monitoring infrastructure.

In oil refineries, gas compression stations, power generation turbines, mining hoists, and metallurgical processing lines, even a momentary lapse in phase reference data can cascade into unplanned downtime, equipment damage, or safety incidents. The 3500/25 eliminates that risk by providing a stable, noise-immune Keyphasor signal that synchronizes vibration, speed, and dynamic pressure measurements across the full 3500 rack — enabling accurate once-per-revolution event tracking under the most punishing field conditions.

Rugged Specifications Table

Comprehensive Protection Solutions

The 3500/25 Keyphasor Module does not operate in isolation — it is the timing backbone of a coordinated machinery protection architecture. Within the same 3500 rack, it works in concert with the Bently Nevada 3500/40M Proximitor I/O Module, which conditions raw proximity probe signals into calibrated vibration data, and the 3500/42M Proximitor/Seismic Monitor, which performs real-time vibration analysis against configurable alarm thresholds. The Keyphasor signal from the 3500/25 is essential for these monitors to resolve 1X and 2X vibration vectors, enabling precise imbalance and misalignment diagnostics.

For turbine and compressor protection, the 3500/25 integrates seamlessly with the Bently Nevada 3500/50 Tachometer Module, providing synchronized speed measurement that feeds overspeed trip logic. In installations requiring axial position monitoring, the 3500/45 Position Monitor relies on the Keyphasor reference to correlate thrust bearing displacement with shaft rotational events. Communication between the 3500 rack and plant-level DCS or SCADA systems is handled by the 3500/92 Communication Gateway Module, which transmits real-time machinery health data over Modbus TCP or OPC-DA protocols — keeping your control room informed without manual intervention.

Beyond the 3500 ecosystem, the 3500/25 is commonly deployed alongside Emerson Ovation DCS I/O modules and Rockwell Automation ControlLogix safety PLCs in integrated plant protection schemes, where the Keyphasor data informs high-integrity shutdown logic. Industrial power quality is maintained by Phoenix Contact QUINT-series 24 VDC power supplies feeding the rack infrastructure, while Weidmüller terminal blocks and marshalling panels provide the field wiring interface between proximity probes and the 3500 rack inputs. For hazardous area installations, MTL Instruments Zener barriers and galvanic isolators are used to maintain intrinsic safety compliance between the field sensors and the 3500/25 inputs, ensuring the module operates safely in Zone 1 and Zone 2 classified environments.

Application in Critical Infrastructure

In oil and gas upstream and midstream facilities — including gas turbine-driven compressor trains, centrifugal pumps, and pipeline booster stations — the 3500/25 provides the phase reference that makes continuous vibration trending possible without process interruption. Operators rely on its Keyphasor output to detect developing rotor imbalance weeks before it reaches alarm levels, enabling planned maintenance rather than emergency shutdowns.

At coal-fired and combined-cycle power plants, the module is installed on steam turbine generator sets where shaft speed can exceed 3,600 RPM and bearing temperatures routinely approach operational limits. The 3500/25’s dual-channel architecture provides redundancy: if one Keyphasor probe circuit degrades due to contamination or cable damage, the second channel maintains uninterrupted phase reference, preserving the integrity of the entire protection system.

In mining and mineral processing environments — where crusher drives, ball mill pinion shafts, and conveyor head pulleys operate in high-dust, high-vibration conditions — the 3500/25 is valued for its robust signal conditioning that rejects mechanical noise and electrical interference from variable frequency drives (VFDs). Similarly, in water and wastewater treatment plants, the module monitors large vertical turbine pumps and blower trains that must run continuously to meet regulatory discharge standards, where unplanned downtime carries both operational and compliance consequences.

Metallurgical and steel production facilities deploy the 3500/25 on rolling mill main drives and continuous casting machine drives, where the combination of heavy electromagnetic interference from arc furnaces and extreme ambient temperatures demands a phase reference module with proven industrial hardening — exactly what the Bently Nevada 3500/25 delivers.

Security & Quality FAQ

Q1: What does the 12-month warranty cover?
The 12-month warranty covers all manufacturing defects and functional failures under normal operating conditions. If the module fails to perform to Bently Nevada 3500/25 specifications within the warranty period, TOPNLMS will provide a replacement unit or full refund. The warranty period begins from the date of confirmed delivery.

Q2: How is each unit tested before shipment?
Every 3500/25 unit undergoes pre-shipment functional verification, including power-on self-test, channel signal integrity check, and communication handshake with a 3500 rack. Units sourced as refurbished are additionally subjected to extended burn-in testing to confirm stable operation across the rated temperature range. A test report is available upon request.

Q3: Is the 3500/25 compatible with all versions of the Bently Nevada 3500 rack?
The 3500/25 is compatible with standard and enhanced 3500 Series racks. It is slot-configurable and works with both the original 3500 rack backplane and the updated enhanced rack variants. For specific firmware revision compatibility with your existing 3500/20 rack power supply or 3500/22M transient data interface, please contact our technical team with your rack serial number for confirmation.

Q4: Can TOPNLMS support long-term supply and emergency replacement needs?
Yes. TOPNLMS maintains buffer stock of high-demand 3500 Series modules, including the 3500/25, to support both planned spare parts programs and emergency breakdown replacement scenarios. We offer expedited shipping to minimize machinery downtime, with export documentation prepared for international customs clearance. For long-term supply agreements or consignment stock arrangements, contact our sales team directly.
