Bently Nevada 3500/22M 288055-01L Original Industrial Spare 3500 Compatible: System Stability & Machinery Protection Value

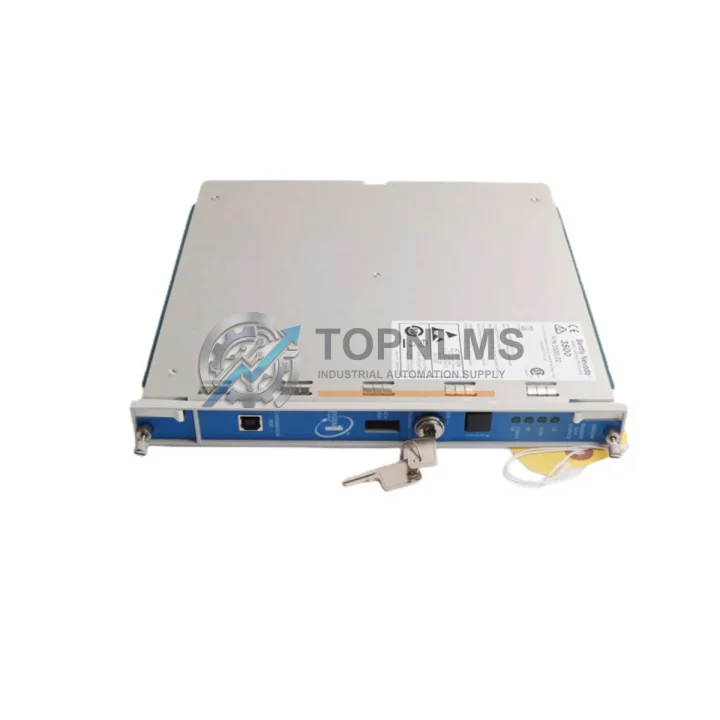

The Bently Nevada 3500/22M 288055-01L is a Transient Data Interface (TDI) module engineered for the Bently Nevada 3500 Series Machinery Protection System — one of the most widely deployed continuous vibration monitoring platforms in rotating machinery environments worldwide. Whether you are managing a gas turbine, steam turbine, compressor train, or large pump station, this module plays a critical role in capturing high-speed transient vibration data during startup, shutdown, and trip events. Maintaining a verified spare of the 3500/22M 288055-01L in your critical spares inventory is a foundational element of any serious predictive maintenance and machinery protection strategy.

Industrial facilities operating Bently Nevada 3500 Series racks understand that unplanned downtime caused by a failed TDI module can cascade into hours or days of lost production. The 3500/22M 288055-01L interfaces directly with the 3500 rack backplane, communicating transient waveform data to the host monitoring system for post-trip analysis and condition trending. When this module fails or degrades, the entire transient capture capability of the rack is compromised — leaving maintenance engineers without the diagnostic data needed to understand trip root causes and prevent recurrence.

Critical Technical Specs Table

Preventive Maintenance Strategy

A robust preventive maintenance program for a Bently Nevada 3500 Series rack goes well beyond replacing a single module. When scheduling a planned outage or conducting a control cabinet inspection, maintenance teams should treat the 3500/22M 288055-01L replacement as part of a broader rack health audit. Begin by verifying the 3500/01 Power Supply module — power quality directly affects TDI data integrity, and a degraded power supply can cause intermittent module faults that are difficult to diagnose. Simultaneously, inspect the 3500/05 System Monitor, which manages rack-level communication and configuration; a failing System Monitor can mask TDI errors or prevent proper transient data upload to the host system.

For facilities running multiple measurement channels, the 3500/40M Proximitor/Seismic Monitor and 3500/42M Proximitor/Seismic Monitor modules are the most common channel cards in turbomachinery protection racks. These modules interface with eddy-current proximity probes and seismic sensors to provide the raw vibration signals that the 3500/22M TDI captures during transient events. Ensuring these channel modules are in good condition — with verified calibration and no connector corrosion — is essential before relying on transient data quality.

Rack interconnect integrity is equally important. The 3500 rack interconnect cables and I/O module terminal blocks should be inspected for loose terminations, insulation degradation, and moisture ingress during every planned maintenance window. In older installations, the 3500/20 Rack Interface Module (RIM) — which handles Modbus or other fieldbus communication to the DCS or SCADA layer — is a common failure point that is frequently overlooked until a communication alarm appears. Stocking a spare RIM alongside the 3500/22M 288055-01L significantly reduces the risk of extended downtime during a rack fault event.

For facilities with Keyphasor-based speed and phase reference measurements, the 3500/25 Enhanced Keyphasor Module should be included in the spare parts plan. The Keyphasor signal is the timing reference for all synchronous vibration measurements; a failed Keyphasor module renders 1X and 2X vibration vectors unreliable and can trigger nuisance trips. Finally, where the 3500 rack interfaces with a broader DCS environment — such as a Honeywell Experion, Emerson DeltaV, or Yokogawa CENTUM system — maintaining spares for the relevant communication gateway modules and signal isolators ensures that a single component failure does not sever the data path between the machinery protection system and the plant control layer.

Strategic Replacement Solutions

The Bently Nevada 3500/22M 288055-01L is a legacy-compatible module that allows facilities to maintain their existing 3500 Series rack infrastructure without undertaking a full system migration. Many plants operating gas turbines, steam turbines, and large compressors installed their 3500 racks in the 1990s and 2000s; these systems remain fully functional and supported at the module level, making targeted spare replacement a far more cost-effective strategy than platform replacement.

When the original 3500/22M fails, the 288055-01L revision ensures backward compatibility with existing rack configurations, firmware versions, and System Monitor software. There is no need to reconfigure channel assignments, re-enter alarm setpoints, or modify DCS integration parameters — the replacement module slots in and resumes normal operation after a brief rack initialization cycle. This plug-and-play compatibility is a critical advantage in time-sensitive maintenance scenarios where minimizing mean time to repair (MTTR) is the primary objective.

For facilities managing aging 3500 racks across multiple trains or units, a strategic approach involves maintaining a minimum of one verified spare 3500/22M 288055-01L per site, with additional units held at regional warehouse level for multi-site operations. This inventory posture eliminates the lead-time risk associated with sourcing obsolete or low-volume modules on short notice during an unplanned outage — a scenario where procurement timelines of days or weeks translate directly into production losses that far exceed the cost of a proactive spare inventory.

All units supplied by TOPNLMS are individually tested prior to shipment, with functional verification of backplane communication and data interface integrity. Each module ships with documentation supporting traceability and is covered by a 12-month warranty against manufacturing defects and functional failure.
