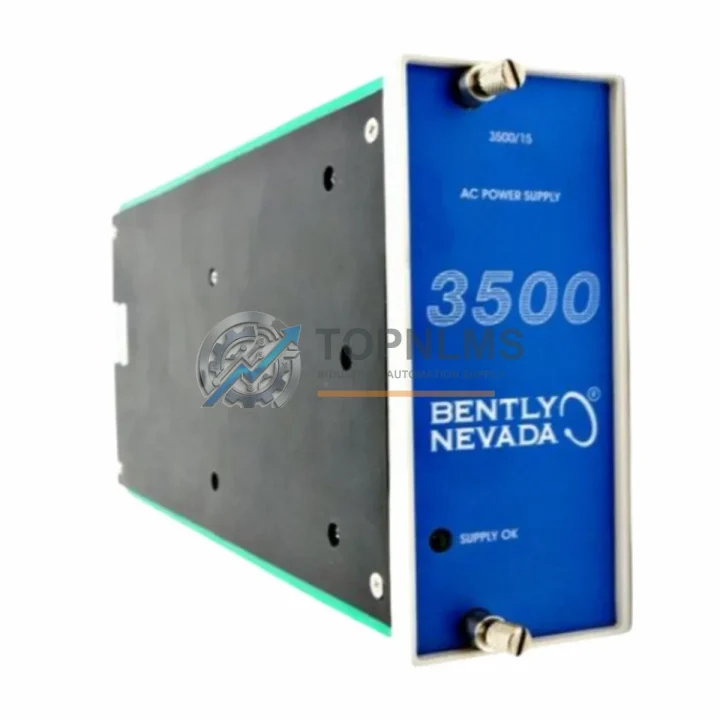

Bently Nevada 3500/15 114M5330-01 Replacement Solution

Product Overview

Bently Nevada 3500/15 114M5330-01 Replacement Solution: Seamless Transition from Legacy 3500 Series Power Infrastructure

The Bently Nevada 3500/15 114M5330-01 is the dedicated rack power supply module for the Bently Nevada 3500 Series machinery protection system — one of the most widely deployed continuous condition monitoring platforms in rotating equipment applications including turbines, compressors, pumps, and generators. As the 3500/15 MPS (Main Power Supply) approaches end-of-life or becomes unavailable through OEM channels, facilities engineering teams and reliability engineers face a critical decision: source a verified replacement unit or risk unplanned downtime on a safety-critical monitoring system.

TOPNLMS supplies the 3500/15 114M5330-01 as a direct drop-in replacement for existing 3500 Series racks. Every unit is sourced from verified supply channels, functionally tested prior to dispatch, and backed by a 12-month warranty. Whether you are replacing a failed unit, building a spare parts inventory, or executing a planned maintenance window, our stock is ready to ship from Xiamen with same-day processing on confirmed orders.

Compatibility Comparison Table

Seamless Upgrade Solutions

A power supply replacement on a 3500 Series rack is rarely an isolated event. In most field scenarios, the 3500/15 114M5330-01 is replaced as part of a broader rack refurbishment or system reliability improvement program. During such a maintenance window, engineers typically inspect and often replace adjacent modules to restore full system integrity before returning the machinery protection system to service.

The 3500/05 rack chassis itself is the foundation — if the rack backplane shows signs of corrosion or connector wear, replacing the chassis alongside the power supply eliminates a second maintenance window. Within the same rack, the 3500/20 Rack Interface Module (RIM) manages communication between the 3500 rack and the host system via Modbus RTU or TCP/IP; a degraded RIM can cause false alarms or data dropouts that are often misattributed to the power supply. Similarly, the 3500/22M Transient Data Interface module, if installed, should be verified for firmware currency during the same outage.

On the monitoring side, individual I/O and monitor modules such as the 3500/40M Proximitor/Seismic Monitor, the 3500/42M Proximitor/Seismic Monitor, and the 3500/45 Position Monitor are commonly found in the same rack and may require recalibration or replacement if they have accumulated significant operating hours. The 3500/50 Tachometer Module and 3500/60 Temperature Monitor are also frequent co-replacement candidates in turbine and compressor protection racks.

For facilities transitioning from older Bently Nevada 7200 Series or 3300 Series proximity systems to the 3500 platform, the power supply replacement is often the first step in a phased migration. In these cases, the 3500/15 114M5330-01 is paired with new proximitor extension cables, junction boxes, and field wiring adapters to bridge legacy sensor installations to the new rack without requiring immediate field rewiring — significantly reducing migration cost and downtime.

Where redundant power is required, a second 3500/15 unit is installed in the adjacent MPS slot of the 3500/05 rack. TOPNLMS can supply matched pairs of 3500/15 114M5330-01 units for redundant configurations, ensuring both primary and backup power modules carry the same revision and test date.

Retrofit Guidance FAQ

Q: Does replacing the 3500/15 114M5330-01 require any software reconfiguration in System 1 or Rack Configuration Software?
A: No. The 3500/15 is a hardware-only power supply module with no configurable parameters in the Bently Nevada Rack Configuration Software (RCS). After physical replacement, the rack resumes normal operation without any software intervention. System 1 monitoring software does not require re-commissioning for a power supply swap.

Q: Can the 3500/15 114M5330-01 be hot-swapped while the rack is powered?
A: In a dual-MPS redundant configuration, the secondary power supply can be replaced while the primary remains active, provided the rack is confirmed to be operating on the primary MPS. In a single-MPS configuration, the rack must be powered down before replacement. Always follow your site’s lock-out/tag-out (LOTO) procedure.

Q: Is the 114M5330-01 revision compatible with all 3500/05 rack variants?
A: The 114M5330-01 is the current production revision of the 3500/15 and is backward compatible with all 3500/05 rack chassis variants. If your rack carries an earlier revision of the 3500/15 (e.g., 125680-01), the 114M5330-01 is a direct functional replacement with no mechanical or electrical modification required.

Q: What wiring changes are needed during replacement?
A: The 3500/15 uses a standard IEC power inlet on the module front panel. AC or DC input wiring connects directly to the module’s terminal block. No backplane wiring changes are required. Verify input voltage range against your site supply before installation.

Q: Will the replacement unit affect the communication protocol between the 3500 rack and the DCS or historian?
A: No. Communication protocols (Modbus RTU, Modbus TCP/IP, or OPC) are managed by the 3500/20 RIM, not the power supply. Replacing the 3500/15 has no effect on data communication, alarm setpoints, or historian connectivity.

Q: What if my rack also has a 3500/15-02 Enhanced Power Supply variant?
A: The 3500/15-02 is a separate SKU with enhanced filtering for high-noise environments. If your existing installation uses the -02 variant, confirm the correct SKU before ordering. TOPNLMS can supply both variants — contact us with your rack serial number for confirmation.

Warranty Assurance

Every 3500/15 114M5330-01 unit shipped by TOPNLMS is covered by a 12-month warranty from the date of shipment. Prior to dispatch, each unit undergoes a functional power-on test to verify output voltage stability, inrush current behavior, and physical connector integrity. Units that do not pass inspection are not shipped.

In the event of a warranty claim, TOPNLMS provides a replacement unit or full refund within the warranty period. Our after-sales response target is 24 hours for initial acknowledgment and 72 hours for resolution proposal. Replacement units are dispatched with priority shipping at no additional cost to the buyer.

For procurement teams requiring documentation, we can provide test reports, packing lists, and commercial invoices in English. Export from Xiamen, China is handled via DHL, FedEx, or UPS with full tracking. Typical transit time to Europe and North America is 3–7 business days. Expedited shipping is available for critical downtime situations.

TOPNLMS maintains stock of the 3500/15 114M5330-01 and related 3500 Series modules to support both emergency replacement and planned maintenance procurement. We welcome blanket purchase orders and consignment arrangements for facilities with ongoing 3500 Series maintenance programs.
