Bently Nevada 330980-71-05 Original Industrial Spare 3300 XL Compatible

Product Overview

Bently Nevada 330980-71-05 Original Industrial Spare 3300 XL Compatible: System Stability and Industrial Spare Maintenance Value

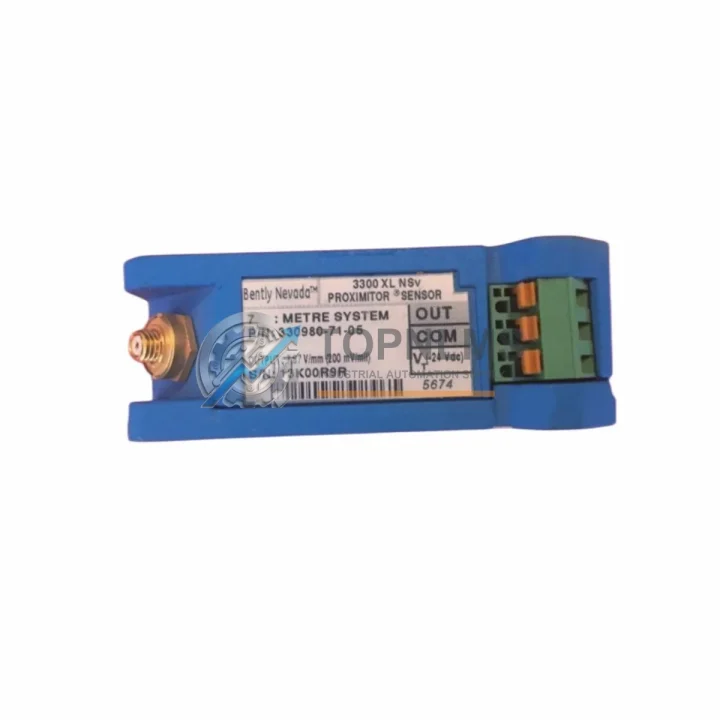

The Bently Nevada 330980-71-05 is an original NSV (Non-contact Shaft Vibration) Proximitor Sensor designed for the 3300 XL Machinery Protection System — one of the most widely deployed continuous machinery monitoring platforms in rotating equipment applications worldwide. Whether you are managing a planned shutdown, responding to an unplanned trip, or building a strategic spare parts inventory for your facility, the 330980-71-05 represents a critical line item in any serious maintenance program covering turbines, compressors, pumps, and other high-value rotating assets.

Sourced as an original Bently Nevada component, this Proximitor is engineered to deliver the precise eddy-current sensing performance required by the 3300 XL monitor rack. Substituting with non-original or incompatible sensors risks calibration drift, false trips, and — most critically — missed fault detection during real machinery events. Maintaining an original spare on the shelf eliminates that risk entirely.

Critical Technical Specs Table

Preventive Maintenance Strategy

When a 330980-71-05 Proximitor Sensor is flagged for replacement during a scheduled outage or corrective maintenance event, experienced reliability engineers treat the intervention as an opportunity to audit the entire vibration monitoring loop — not just the failed component. The Proximitor is only one element in a measurement chain that includes the extension cable (typically a 330130-series cable matched to the probe gap), the probe tip itself (such as the 330101 or 330104 series), and the 3300 XL monitor card receiving the signal.

During the same maintenance window, technicians should verify the condition of the 3300 XL monitor rack’s power supply module, as voltage instability at the rack level can cause erratic Proximitor output even when the sensor itself is healthy. If the facility runs multiple 3300 XL racks, it is prudent to inspect the rack backplane connectors and the I/O terminal blocks for signs of oxidation or loose terminations — issues that are frequently misdiagnosed as sensor failures.

For plants operating legacy Bently Nevada 3500 series racks alongside 3300 XL systems, the maintenance visit is also an ideal time to cross-check the 3500/42M or 3500/45 monitor modules for firmware currency and to confirm that the associated Keyphasor® module (3500/17 or 3300 XL Keyphasor) is providing a clean once-per-revolution reference signal. A degraded Keyphasor signal will corrupt phase measurements across all channels in the rack, masking real vibration trends.

Relay output modules within the 3300 XL rack — responsible for driving shutdown and alarm contacts to the plant DCS or safety PLC — should be tested for contact integrity during any Proximitor replacement job. These relay modules are often overlooked until a spurious trip or a missed shutdown event reveals their degradation. Similarly, the communication gateway module (if the rack is networked via Modbus or OPC to a plant historian or DCS) should be checked for firmware version and communication health.

From a spare parts inventory perspective, facilities with multiple 3300 XL-monitored machines should maintain at minimum one spare 330980-71-05 Proximitor per machine train, one matched extension cable set, and one spare monitor card per rack type. For critical assets such as main steam turbines or high-pressure compressors, a complete spare rack assembly is justified. Procurement teams should also consider stocking the associated junction box terminal strips and cable glands, as these small components frequently cause extended delays when sourced reactively during an outage.

Strategic Replacement Solutions

The 330980-71-05 is a direct original replacement for aging NSV Proximitor assemblies installed during the initial commissioning of 3300 XL systems in the 1990s and 2000s. Many of these sensors have been in continuous service for 15–25 years, well beyond the manufacturer’s recommended service interval. Replacing them proactively — rather than waiting for a measurement fault alarm — eliminates the risk of an unplanned trip on a critical machine during peak production.

Because the 330980-71-05 is an original Bently Nevada part, it requires no recalibration of the 3300 XL monitor card upon installation, provided the probe gap is set correctly per the installation drawing. This plug-and-replace compatibility is a significant advantage over third-party alternatives, which may require monitor sensitivity adjustments and introduce uncertainty into the calibration record.

For facilities transitioning from older 3300 non-XL systems, the 3300 XL platform offers improved noise immunity and expanded diagnostic capability. Upgrading the Proximitor to the 330980-71-05 as part of a phased modernization program allows the plant to extend the life of the existing monitor rack infrastructure while improving measurement reliability — deferring the capital cost of a full 3500 series migration without sacrificing protection integrity.

TOPNLMS inspects and function-tests each 330980-71-05 unit prior to shipment. Every unit ships with a 12-month warranty covering manufacturing defects and functional performance. Expedited shipping options are available for emergency maintenance situations.

Support FAQ

Q1: Is the 330980-71-05 compatible with both 3300 XL and legacy 3300 (non-XL) monitor racks?
The 330980-71-05 is optimized for the 3300 XL platform. While the eddy-current sensing principle is the same, sensitivity and output characteristics should be verified against your specific monitor card’s input specification before installing in a non-XL rack. Contact our technical team for compatibility confirmation.

Q2: How many spare Proximitor units should a facility stock for a 3300 XL-monitored machine train?
Industry best practice recommends a minimum of one spare Proximitor per measurement plane (radial X, radial Y, axial) per machine train for critical assets. For non-critical machines, one spare per rack is a common baseline. Facilities with long lead-time procurement cycles should increase buffer stock accordingly.

Q3: What pre-shipment testing does TOPNLMS perform on the 330980-71-05?
Each unit undergoes functional output verification, connector integrity inspection, and cable continuity testing before dispatch. Units are packaged in anti-static, shock-protected packaging. A test report is available upon request for quality-critical procurement.

Q4: What is covered under the 12-month warranty, and how is a warranty claim processed?
The 12-month warranty covers manufacturing defects and functional failure under normal operating conditions. It does not cover damage resulting from incorrect installation, overvoltage, or physical impact. To initiate a warranty claim, contact [email protected] with the order number and a description of the fault. Replacement or repair will be arranged within 5 business days of fault confirmation.
