Bently Nevada 330980-70-CN Original Industrial Spare 3300 XL NSv Compatible

Product Overview

Bently Nevada 330980-70-CN Original Industrial Spare 3300 XL NSv Compatible: System Stability & Industrial Spare Maintenance Value

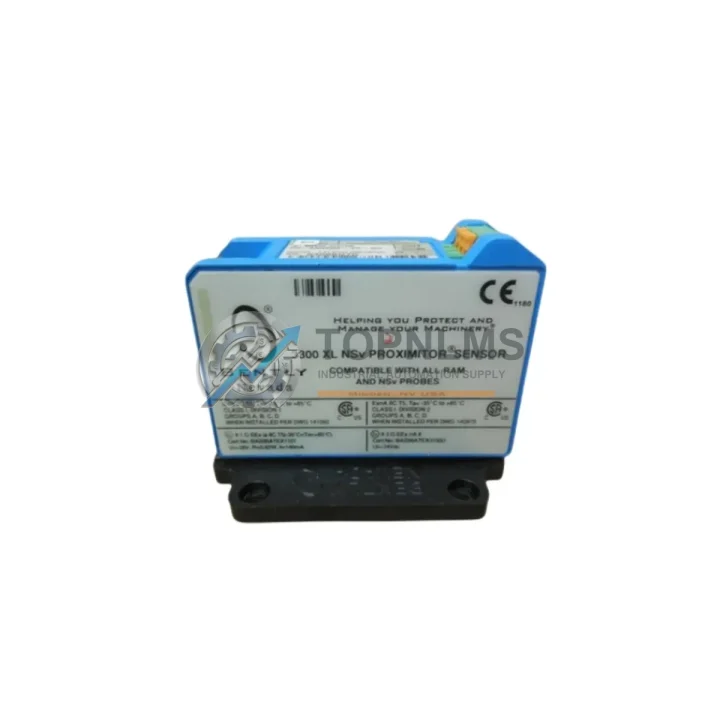

The Bently Nevada 330980-70-CN is an original NSv Proximitor Sensor from the industry-leading 3300 XL Series, engineered for continuous, high-accuracy shaft vibration and position monitoring in critical rotating machinery. In industrial facilities where turbines, compressors, pumps, and motors operate around the clock, the integrity of the vibration monitoring loop is non-negotiable. A single failed Proximitor Sensor can trigger unplanned shutdowns, cascade into costly mechanical damage, and compromise the safety of the entire control system. Stocking the 330980-70-CN as a verified original spare is one of the most cost-effective decisions a maintenance team can make.

This unit is sourced as an original Bently Nevada component, fully tested prior to shipment, and backed by a 12-month warranty. It is designed as a direct replacement for aging or failed 330980-70-CN sensors in existing 3300 XL NSv monitoring systems, preserving full system compatibility without requiring reconfiguration of the monitor rack or signal conditioning chain.

Critical Technical Specs

Preventive Maintenance Strategy

When a 330980-70-CN Proximitor Sensor is flagged for replacement during a scheduled outage or predictive maintenance inspection, experienced maintenance engineers know that the sensor itself is rarely the only component that warrants attention. The 3300 XL NSv system is a tightly integrated vibration monitoring chain, and the reliability of the entire loop depends on the condition of every element from the probe tip to the monitor output.

During the same maintenance window, it is strongly recommended to inspect the Bently Nevada 330130-080-00-CN extension cable that connects the Proximitor to the probe — cable insulation degradation and connector corrosion are leading causes of signal drift that is often misdiagnosed as sensor failure. Simultaneously, verify the condition of the 3300 XL Monitor module (such as the 3300/16 or 3300/20 series) housed in the monitor rack; a worn monitor card can produce false alarms even with a new sensor installed.

The 3300 XL rack power supply module should also be load-tested during this interval. An unstable -24 VDC supply rail is a common root cause of intermittent Proximitor output errors. If your facility runs multiple measurement points, consider auditing the 3300 XL I/O module and terminal block assemblies for loose connections and oxidation — these are high-wear items in humid or chemically aggressive environments.

For facilities managing older Bently Nevada installations, the 3500 Series rack components — including the 3500/22M Transient Data Interface and 3500/42M Proximitor/Seismic Monitor — are frequently found alongside 3300 XL systems in the same control cabinet. Inspecting these modules during the same shutdown reduces total labor cost and minimizes future unplanned downtime. Additionally, Keyphasor modules (such as the 3300 XL Keyphasor) should be verified for signal integrity, as they provide the phase reference essential for accurate vibration analysis.

Facilities with integrated DCS or PLC control architectures should also review the signal isolator modules and 4–20 mA output cards that interface the Bently Nevada system with the plant DCS — a degraded isolator can introduce ground loops that corrupt vibration data across multiple channels. Rounding out a comprehensive inspection, the junction box terminal strips and shielded instrumentation cables running from the machinery to the control room should be checked for mechanical damage, moisture ingress, and proper grounding.

Strategic Replacement Solutions

The 330980-70-CN is a direct, original-specification replacement for end-of-life or damaged NSv Proximitor Sensors in the 3300 XL monitoring system. Unlike generic aftermarket alternatives, this original Bently Nevada part maintains the factory-calibrated sensitivity scale factor and linearity range, ensuring that existing alarm and danger setpoints remain valid without requiring re-engineering of the monitoring loop.

For facilities managing aging 3300 XL installations, sourcing original spare parts is the most reliable strategy to extend system life without the capital expenditure of a full platform migration to the 3500 Series. The 330980-70-CN is fully backward-compatible with existing 3300 XL monitor racks, meaning maintenance teams can execute a like-for-like swap during a planned outage window — typically achievable within a single shift — and return the machine to service with full monitoring confidence.

Procurement teams are advised to maintain a minimum of one to two units of the 330980-70-CN in on-site inventory for each critical machine train monitored by the 3300 XL NSv system. Given the lead times associated with specialty instrumentation, having verified original spares on the shelf is the single most effective measure to reduce mean time to repair (MTTR) when a sensor failure occurs during peak production.

All units shipped from TOPNLMS are individually tested for output linearity and signal integrity before dispatch. Each sensor is packaged in anti-static, moisture-resistant packaging with full traceability documentation, and is covered by a 12-month warranty from the date of shipment.

Support FAQ

Q1: Is the 330980-70-CN compatible with both 3300 XL and 3300 NSv monitor systems?
Yes. The 330980-70-CN is designed for the 3300 XL NSv Proximitor System and is compatible with the full range of 3300 XL monitor modules. It operates as a direct replacement without requiring system reconfiguration, provided the monitor is already configured for NSv-type sensors.

Q2: What does the 12-month warranty cover, and what is the claims process?
The 12-month warranty covers manufacturing defects and verified functional failures under normal operating conditions from the date of shipment. To initiate a warranty claim, contact TOPNLMS at [email protected] with your order reference and a description of the fault. Units are subject to inspection before replacement or credit is issued.

Q3: How is the unit tested before shipment?
Each 330980-70-CN unit undergoes output linearity verification and signal integrity testing prior to dispatch. Test records are available upon request for quality-critical procurement processes. Units are shipped in anti-static, moisture-resistant packaging to ensure condition on arrival.

Q4: What is the recommended inventory strategy for critical rotating machinery applications?
For machines classified as critical or essential (turbines, main compressors, boiler feed pumps), we recommend maintaining a minimum of one spare 330980-70-CN per monitored machine train on-site. For facilities with five or more monitored machines, a pooled inventory of two to three units is typically sufficient to cover unplanned failures while replenishment orders are in transit.
