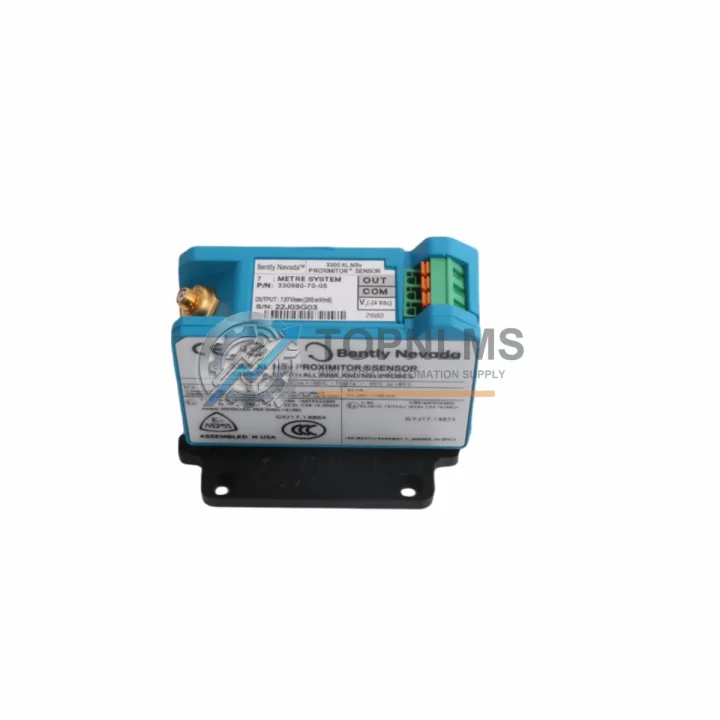

Bently Nevada 330980-70-05 Original Industrial Spare 3300 XL Compatible

Product Overview

Bently Nevada 330980-70-05 Original Industrial Spare 3300 XL Compatible: System Stability & Maintenance Value

The Bently Nevada 330980-70-05 is an original eddy-current proximity transducer engineered for the 3300 XL Proximitor System — one of the most widely deployed vibration and position monitoring platforms in rotating machinery applications worldwide. Whether you are managing a planned shutdown, responding to an unplanned trip, or building a strategic spare-parts inventory for a turbine, compressor, or pump train, this transducer delivers the dimensional accuracy, signal linearity, and long-term reliability that critical machinery protection demands.

Facilities running GE, Baker Hughes, or legacy Bently Nevada monitoring architectures depend on the 3300 XL series for continuous shaft vibration, axial position, and differential expansion measurement. The 330980-70-05 — with its 5-metre integral cable and standard 8 mm probe tip — is the workhorse variant found in steam turbine bearing housings, centrifugal compressor pedestals, and large motor end-shields across petrochemical, power generation, LNG, and heavy manufacturing plants. Sourcing an original replacement rather than an uncertified substitute is not merely a procurement preference; it is a system integrity decision that directly affects trip setpoint accuracy and API 670 compliance.

Critical Technical Specs

Preventive Maintenance Strategy

A proximity transducer replacement is rarely an isolated event. When a 330980-70-05 is pulled from service — whether due to cable damage, tip contamination, or a calibration drift flagged during a scheduled outage — experienced maintenance engineers treat the intervention as an opportunity to audit the entire measurement chain and the surrounding control cabinet.

Begin with the 3300 XL Proximitor driver module (typically a 330180-X1-05 or 330130-series unit) mounted in the rack. A worn probe paired with a marginal driver will reproduce the same fault within weeks. While the cabinet door is open, inspect the 3300 XL I/O module and verify that terminal block connections are torqued to spec — loose terminations are a leading cause of intermittent vibration alarms in humid or high-vibration environments.

Check the barrier or Zener barrier assembly (such as the Bently Nevada 3300 XL barrier) if the installation is in a hazardous area. Barriers degrade over time and can introduce offset errors that mimic probe gap drift. At the same time, inspect the extension cable — the 330130-080-00-00 or equivalent armoured extension — for jacket cracking, connector corrosion, or continuity loss. Extension cable failures account for a disproportionate share of field faults that are incorrectly attributed to the probe itself.

If the machine train includes a 3500 series rack (Bently Nevada 3500/42M or 3500/40M vibration monitor cards), verify that the channel configuration still matches the replacement transducer’s sensitivity coefficient. A mismatch of even 0.5 V/mm will shift alarm and danger setpoints outside API 670 tolerances. While the rack is under review, inspect the 3500 power supply module and confirm redundant supply health — a single-point power failure in a 3500 rack can silence an entire machine train’s protection system.

For plants running parallel DCS integration via a 4–20 mA output card or a Modbus/PROFIBUS communication gateway, confirm that the signal scaling in the DCS historian still reflects the new transducer’s calibration data. Discrepancies here create false trend baselines that undermine predictive maintenance decisions for months after the physical repair is complete.

Finally, review the spare-parts cabinet for the 3300 XL mounting bracket and jam nut set, probe tip protector caps, and a calibrated gap-setting tool. These low-cost consumables are frequently overlooked until the next outage, when their absence adds hours to an otherwise straightforward replacement job.

Strategic Replacement Solutions

The 330980-70-05 is a direct, pin-compatible replacement for earlier 330900 and 330905 series probes used in legacy 3300 and 3300/16 systems. Plants that have not yet migrated to the 3300 XL architecture can use this transducer to upgrade individual measurement points without replacing the entire rack — a cost-effective strategy for extending the operational life of aging machinery protection systems by five to ten years.

For OEM-discontinued variants, the 330980-70-05 also serves as a validated substitute in many third-party monitoring systems that accept standard 8 mm eddy-current inputs at 200 mV/mil sensitivity, provided the gap voltage and linear range are verified against the target system’s input card specifications. This flexibility makes it a high-value stocking item for multi-vendor plant environments where a single SKU can cover multiple machine trains.

Sourcing through TOPNLMS ensures that each unit is individually tested for sensitivity, linearity, and insulation resistance before dispatch. Units are shipped with a calibration data sheet, original or equivalent packaging, and a 12-month warranty covering manufacturing defects and performance deviation. Lead time from confirmed order to dispatch is typically 1–3 business days for in-stock units, with expedited options available for emergency shutdowns.

Support FAQ

Q1: Is the 330980-70-05 compatible with both 3300 and 3300 XL Proximitor drivers?
A: The 330980-70-05 is optimised for 3300 XL drivers. It is electrically compatible with earlier 3300 series drivers in most installations, but sensitivity and linear range should be verified against the driver’s input specification sheet before commissioning, particularly if the driver has not been updated to XL firmware.

Q2: What pre-shipment testing is performed on each unit?
A: Every unit undergoes sensitivity verification (target: 7.87 ± 0.25 V/mm), linearity check across the full 0–2.54 mm range, insulation resistance test (≥100 MΩ at 500 VDC), and visual inspection of the probe tip, cable jacket, and connector. A test report is available on request.

Q3: How should I manage 330980-70-05 inventory for a multi-train plant?
A: Industry best practice for critical rotating machinery is to hold a minimum of one spare per two installed probes, with a floor of two units per site regardless of installed count. For plants with more than ten 3300 XL measurement points, a consignment or blanket-order arrangement can reduce per-unit cost while maintaining on-site availability for emergency replacements.

Q4: What does the 12-month warranty cover, and how is a claim processed?
A: The warranty covers manufacturing defects, sensitivity drift beyond ±5% of nominal, and cable/connector failures under normal operating conditions. To initiate a claim, contact [email protected] with the order number, installation date, and a brief fault description. Replacement units are dispatched within 3 business days of claim approval, and failed units are returned freight-prepaid for root-cause analysis.
