Bently Nevada 3309330-065-04-05 Replacement for 3300 XL

Product Overview

Bently Nevada 3309330-065-04-05 Replacement for 3300 XL: Smooth Transition & Legacy System Compatibility

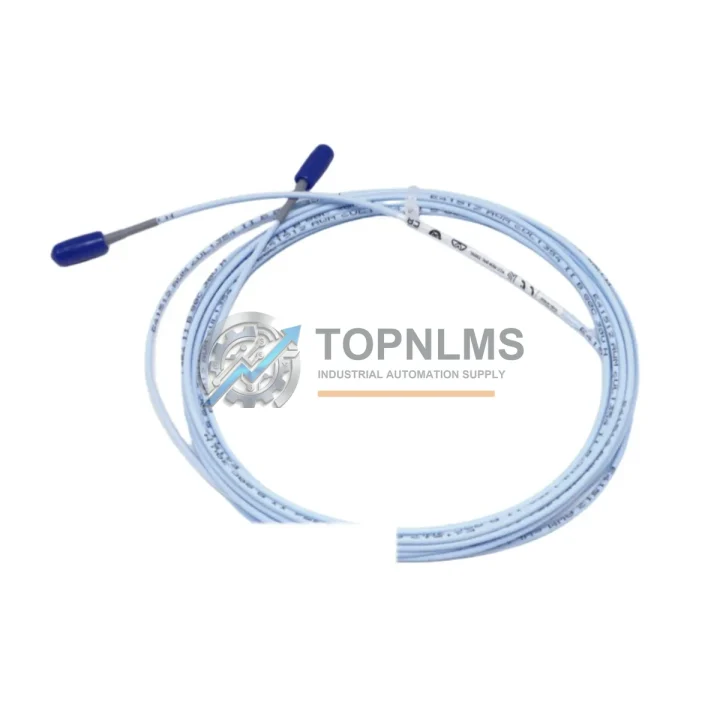

The Bently Nevada 3309330-065-04-05 is an 8mm eddy current proximity probe with a 5-metre integral cable, designed for the 3300 XL Series continuous vibration monitoring platform. As legacy rotating machinery protection systems age and OEM support windows close, plant engineers and reliability teams face increasing pressure to source direct replacements or validated upgrade paths that preserve existing wiring infrastructure, driver compatibility, and system calibration — without triggering a full machinery protection system overhaul.

At TOPNLMS, we stock the 3309330-065-04-05 as a ready-to-ship replacement for facilities operating Bently Nevada 3300 XL proximity systems on turbines, compressors, pumps, gearboxes, and other rotating assets. Our inventory is sourced from authorised distribution channels and subject to pre-shipment functional verification, ensuring that every unit shipped meets the original specification for sensitivity, gap voltage, and frequency response.

Compatibility Comparison Table

Seamless Upgrade Solutions

A successful proximity probe replacement rarely involves the probe alone. In most 3300 XL installations, the probe works as part of a tightly coupled measurement chain. When replacing the 3309330-065-04-05, field engineers should simultaneously audit the associated 330180-X1-05 proximitor/driver, which conditions the raw eddy current signal before it reaches the monitor rack. If the driver has accumulated years of service alongside the failed probe, replacing both components together eliminates the risk of residual calibration drift masking a genuine machinery fault after the probe swap.

Within the monitor rack, the 3300 XL 16-Channel Monitor or a 3500/42M Proximitor/Seismic Monitor module receives the conditioned signal. Facilities migrating from older 3300 non-XL racks to the 3300 XL platform will find that the updated probe and driver combination integrates cleanly with the 3500 Series rack architecture, provided the correct I/O module and terminal block assignments are verified against the system’s I/O wiring diagram. The 3500/20 Rack Interface Module and associated 3500/22M Transient Data Interface are commonly involved in such migrations and should be confirmed as compatible before commissioning.

For installations where the existing conduit run or junction box limits cable routing flexibility, a 3300 XL Extension Cable (available in 5 m increments) can bridge the gap between the probe’s integral 5 m cable and the proximitor location without compromising signal integrity. Ensure the total system cable length — probe cable plus extension — does not exceed the driver’s specified maximum to avoid sensitivity errors.

Plants upgrading from legacy non-XL 3300 Series probes to the 3300 XL platform should also review the 330130-080-00-00 or similar 3300 XL 8mm probes used in adjacent measurement planes, ensuring consistent sensitivity across all radial and axial measurement points on the same shaft. Mixed sensitivity probes on the same shaft can introduce asymmetric alarm thresholds that complicate vibration analysis.

Where the control architecture extends beyond the machinery protection layer into the process control domain, the vibration data from the 3500 rack is typically transmitted to a DCS or PLC via Modbus RTU, Modbus TCP, or a dedicated System 1 Evolution software interface. Confirming that the replacement probe and driver restore the correct gap voltage — typically −10 VDC at the nominal air gap — is essential before re-enabling any interlock or trip logic in the connected Rockwell ControlLogix or Siemens S7-300/400 controller that relies on the vibration monitor’s relay outputs.

Retrofit Guidance FAQ

Q: Do I need to recalibrate the system after replacing the probe?
A: For a direct like-for-like replacement of the 3309330-065-04-05 within an existing 3300 XL system, the gap voltage should be re-verified at the proximitor output using a calibrated voltmeter. Set the physical air gap to the manufacturer’s recommended value (typically 1.0–1.5 mm for 8mm probes) and confirm the output reads within the −10 VDC to −18 VDC window. No full system recalibration is required if the driver is unchanged and the gap is correctly set.

Q: Is the wiring compatible with my existing installation?
A: Yes. The 3309330-065-04-05 uses the same integral cable termination and connector standard as other 3300 XL 8mm probes. No rewiring of the junction box or proximitor terminal block is required for a direct replacement.

Q: Can this probe be used with a 3500 Series monitor rack?
A: The 3300 XL probe and driver system is compatible with 3500 Series monitors when used with the appropriate 3500 Series I/O module configured for proximitor input. Verify the I/O module part number and channel configuration in the 3500 rack’s System Configuration Utility before installation.

Q: What if my existing driver (proximitor) is also discontinued?
A: TOPNLMS stocks a range of 330180 series drivers. Contact us with your full system configuration and we can advise on the correct driver pairing and confirm availability for combined probe-and-driver shipment.

Q: How do I confirm the correct air gap after installation?
A: Use a non-conductive feeler gauge or the proximitor’s built-in gap voltage output. With the shaft stationary, adjust the probe tip-to-shaft distance until the proximitor output reads the target gap voltage specified in your system’s calibration record. Lock the probe in position with the locknut and re-verify the voltage after tightening.

Warranty Assurance

Every 3309330-065-04-05 unit shipped by TOPNLMS is covered by a 12-month warranty from the date of delivery. Prior to shipment, each unit undergoes a pre-dispatch functional check covering probe sensitivity, cable continuity, connector integrity, and physical condition. Units that do not meet specification are quarantined and not dispatched.

In the event of a warranty claim, TOPNLMS provides a replacement unit or full refund within the warranty period. Our after-sales response target is 24 hours for initial acknowledgement and 72 hours for resolution proposal. We maintain buffer stock of high-demand 3300 XL Series components to support rapid replacement dispatch, minimising the impact on your plant’s availability.

For procurement teams requiring documentation, we can provide a test report, packing list, and commercial invoice with HS code declaration for customs clearance. Shipment is from Xiamen, China, via DHL Express or FedEx International Priority, with typical transit times of 3–5 business days to most destinations.

For volume orders, long-term supply agreements, or technical pre-sales consultation, contact our team directly.
