Bently Nevada 330930-065-00-CN Replacement for 3300 XL: Smooth Migration from Legacy Vibration Monitoring Systems

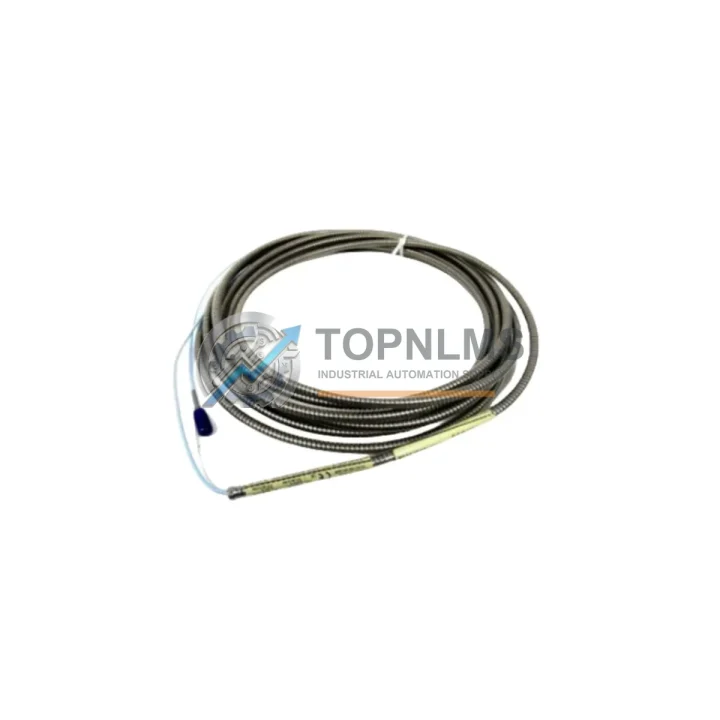

The Bently Nevada 330930-065-00-CN is a 65-foot (20-meter) proximity transducer extension cable engineered specifically for the 3300 XL Series continuous machinery protection platform. As rotating machinery protection programs evolve and legacy cabling reaches end-of-service life, this cable serves as the critical link between the 3300 XL proximitor/driver and the eddy-current proximity probe — maintaining signal integrity across the full measurement chain without requiring re-engineering of the existing installation.

For plants currently operating older Bently Nevada 3300 Series or 7200 Series vibration monitoring architectures, migrating to or maintaining the 3300 XL platform requires careful attention to cable compatibility. The 330930-065-00-CN is designed to interface directly with the 330780 8mm proximity probe and the 330180 proximitor/driver, preserving the same coaxial signal path, impedance characteristics, and connector geometry as the original factory-specified assembly. This means field technicians can swap a degraded or failed extension cable without modifying conduit routing, junction box terminations, or DCS input card wiring — a critical advantage in high-availability turbine, compressor, and pump applications where unplanned downtime carries significant operational cost.

When upgrading from a 3300 Series installation to the 3300 XL platform, the extension cable is often the component most frequently overlooked in the bill of materials. The 330930-065-00-CN resolves this gap by providing a pre-terminated, factory-tested cable assembly that integrates with the 3300 XL monitor rack — including the 3300/16 and 3300/20 vibration monitor cards — without requiring custom cable fabrication or field splicing. The cable’s armored jacket and shielded coaxial construction also ensure compatibility with the electromagnetic environment typical of motor control centers and switchgear rooms where the 3500 Series rack and 3300 XL rack are often co-located.

In retrofit projects where the existing 330930-040-00-CN (40-foot variant) or 330930-080-00-CN (80-foot variant) cables are being standardized, the 65-foot 330930-065-00-CN provides the intermediate reach required for installations where the proximitor is mounted at a distance from the machinery bearing housing. This is particularly relevant in large turbine-generator sets, where the bearing pedestals may be separated from the local junction box by 15 to 18 meters of cable tray. The cable is also fully interchangeable with assemblies used in conjunction with the 330100 proximity probe and 330130 proximitor, provided the system has been configured for 8mm eddy-current sensing.

From a procurement standpoint, sourcing a verified replacement for the 330930-065-00-CN requires confirmation of the cable length suffix (065 = 65 feet), the connector type (CN = standard BNC/TNC coaxial termination), and the series compatibility (3300 XL). TOPNLMS stocks this assembly with full traceability documentation, pre-shipment continuity and insulation resistance testing, and a 12-month warranty covering manufacturing defects and signal performance. Orders are processed from our Xiamen warehouse, with DHL Express and sea freight options available for international customers.

Compatibility Comparison Table

Seamless Upgrade Solutions

A complete 3300 XL vibration monitoring upgrade or cable replacement typically involves more than the extension cable alone. In most field installations, the 330930-065-00-CN is deployed alongside the 330780 8mm proximity probe, which is mounted directly on the bearing housing and generates the eddy-current signal that the extension cable carries to the proximitor. The 330180 proximitor/driver conditions this signal and outputs a calibrated voltage to the monitor rack — making it the next component to verify during a cable replacement, as a degraded proximitor can produce symptoms identical to a failed cable.

At the monitor rack level, the 3300/16 and 3300/20 vibration monitor cards receive the conditioned signal and compare it against configured alarm and danger setpoints. If the plant is also upgrading from an older 3500 Series rack to a 3300 XL architecture, the I/O terminal blocks and rack backplane wiring will need to be reviewed for compatibility with the new cable assembly’s connector pinout. In installations where the cable tray runs through areas with high electromagnetic interference — such as near variable frequency drives (VFDs) or large motor starters — the addition of a signal isolator between the proximitor output and the DCS analog input card is recommended to prevent ground loop interference from corrupting the vibration signal.

For plants performing a full machinery protection system retrofit, the 330930-065-00-CN is often ordered together with the 330780 probe, 330180 proximitor, and the associated Bently Nevada 3300 XL rack power supply module to ensure all components are from the same generation and calibrated to the same sensitivity factor — typically 7.87 V/mm or 200 mV/mil for 8mm probes. The programming cable used to configure the 3300 XL monitor cards via the System 1 software platform should also be verified for compatibility with the site’s DCS communication protocol — whether Modbus RTU, PROFIBUS DP, or Ethernet/IP — to ensure alarm data is correctly transmitted to the control room HMI or SCADA system.

In larger turbine-generator protection schemes, the 330930-065-00-CN is frequently installed in parallel with thrust position probes and keyphasor assemblies, all routed through the same cable tray to the 3300 XL rack. Ensuring consistent cable lengths across all measurement channels minimizes phase delay differences and simplifies system commissioning. Where the installation also includes a Bently Nevada 3300/55 dual-channel monitor or a 3300/25 temperature monitor card, the rack layout and power distribution should be planned to accommodate the full complement of I/O modules without exceeding the rack’s power budget.

Retrofit Guidance FAQ

Q: Can the 330930-065-00-CN replace a 330930-040-00-CN without modifying the proximitor or probe?
A: Yes, provided the additional 25 feet of cable can be accommodated in the cable tray or conduit run. The connector type and impedance are identical; no re-calibration of the proximitor or probe gap is required.

Q: Is this cable compatible with the Bently Nevada 3500 Series rack?
A: The 330930-065-00-CN is specified for the 3300 XL Series. While the connector geometry may be physically compatible with some 3500 Series installations, signal performance and calibration cannot be guaranteed outside the 3300 XL platform. Consult your system documentation before cross-platform use.

Q: What communication protocols does the 3300 XL system support when this cable is used?
A: The 3300 XL monitor rack supports Modbus RTU and, depending on the monitor card variant, PROFIBUS DP. The extension cable itself is a passive coaxial assembly and does not affect the digital communication protocol between the rack and the DCS.

Q: How do I verify the cable is functioning correctly after installation?
A: After installation, measure the DC bias voltage at the proximitor output with the probe at the correct gap distance (typically 1.0–1.5 mm for 8mm probes). The output should read approximately −10 VDC at mid-range. Any significant deviation indicates a wiring fault, incorrect gap, or component failure.

Q: Can this cable be used in hazardous area (Ex) installations?
A: The standard 330930-065-00-CN is not rated for intrinsically safe (Ex ia) installations. For hazardous area applications, verify the area classification and consult Bently Nevada’s Ex-rated cable assemblies or use appropriate barriers between the safe area proximitor and the hazardous area probe.

Q: What is the physical installation space requirement for this cable in a control cabinet?
A: The 330930-065-00-CN uses a standard coaxial connector that requires minimal panel penetration space. The cable’s flexible armored jacket allows routing through standard 25mm or 32mm conduit. No additional DIN rail space or terminal block modifications are required at the rack end.

Q: What is the lead time for this item?
A: In-stock units ship within 1–3 business days from our Xiamen warehouse. International orders via DHL Express typically arrive within 5–7 business days. Sea freight options are available for bulk orders.

Warranty Assurance

Every 330930-065-00-CN shipped by TOPNLMS is covered by a 12-month warranty from the date of delivery. Prior to shipment, each unit undergoes continuity testing, insulation resistance verification, and connector integrity inspection to confirm it meets the original Bently Nevada specification. If a unit is found to be defective within the warranty period, TOPNLMS will arrange a replacement shipment at no additional cost, with return freight covered for verified manufacturing defects.

Our procurement guarantee includes full traceability documentation (batch records and test reports available on request), honest condition disclosure (new, tested surplus, or refurbished units are clearly labeled), and responsive after-sales support via email and phone. We understand that vibration monitoring components are safety-critical in rotating machinery protection applications — our quality control process reflects that responsibility.

For urgent replacement requirements, contact our technical sales team directly to confirm stock availability, request a proforma invoice, or arrange expedited shipping. We support customers across power generation, oil and gas, petrochemical, and heavy manufacturing sectors with reliable spare parts sourcing and fast turnaround.
