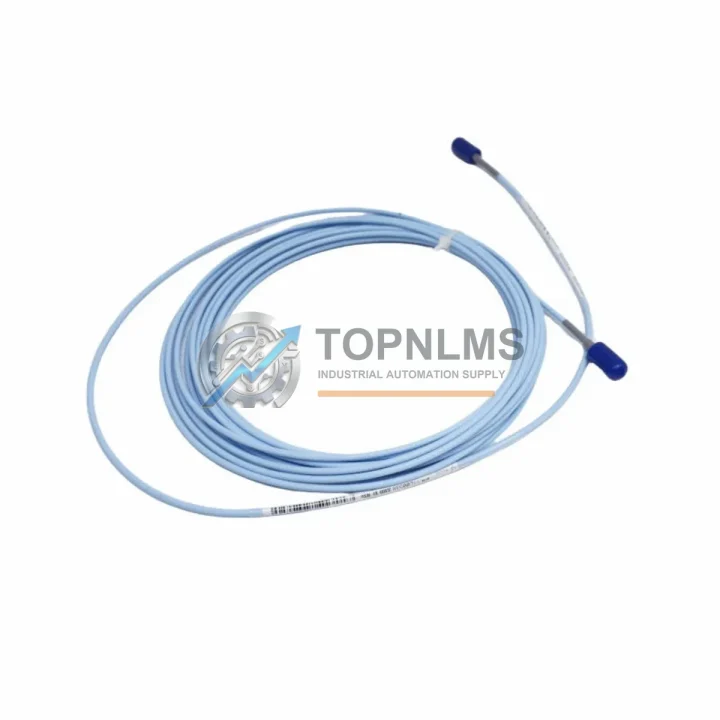

Bently Nevada 330930-045-04-CN Replacement for 3300 XL

Product Overview

Bently Nevada 330930-045-04-CN Replacement for 3300 XL NSv: Smooth Migration & Legacy System Compatibility

The Bently Nevada 330930-045-04-CN is a 3300 XL NSv series proximity transducer engineered for continuous shaft vibration, position, and speed monitoring in rotating machinery protection systems. As legacy 3300 XL installations age and OEM support windows narrow, plant engineers and reliability teams face increasing pressure to source verified replacement units that maintain full signal chain integrity — without re-engineering the existing monitoring architecture or triggering a costly system-wide upgrade.

TOPNLMS maintains ready stock of the 330930-045-04-CN proximity transducer, fully tested and shipped with a 12-month warranty. Each unit is inspected against Bently Nevada’s original electrical and mechanical specifications before dispatch, ensuring that your replacement integrates directly into your existing 3300 XL NSv monitoring loop without recalibration of the Proximitor® sensor or rewiring of the field junction box.

The 330930-045-04-CN operates on the standard Bently Nevada eddy-current sensing principle, producing a linear DC output voltage proportional to the gap between the probe tip and the observed shaft surface. This output is fully compatible with the 3300/16 Proximitor® Sensor and the 3300/55 Proximitor® Sensor signal conditioning modules installed in your existing rack. No firmware changes, no re-ranging, and no modification to your System 1 or System 1 Evolution condition monitoring software configuration are required when substituting this transducer on a like-for-like basis.

Compatibility Comparison Table

Seamless Upgrade Solutions

A successful 3300 XL NSv transducer replacement rarely involves the probe alone. In practice, field engineers replacing a 330930-045-04-CN will simultaneously audit the associated signal conditioning chain and mechanical mounting hardware to eliminate latent failure points and restore the full measurement loop to specification.

The most common companion component is the Bently Nevada 3300/16 Proximitor® Sensor — the rack-mounted signal conditioner that powers the probe via the −24 VDC supply line and converts the raw eddy-current impedance change into the calibrated DC voltage output consumed by the monitor card. If the Proximitor® module shows drift or has accumulated years of continuous service alongside the failed probe, replacing both simultaneously eliminates the risk of a second unplanned outage within the same maintenance window.

For installations where the original design specified a higher-temperature or extended-range signal conditioner, the Bently Nevada 3300/20 Proximitor® Sensor is the appropriate companion. In turbine and compressor trains where ambient temperatures in the bearing housing area exceed standard ratings, the correct Proximitor® variant must be matched to the replacement probe to maintain the system’s overall accuracy specification.

For plants running a Bently Nevada 3500 Series machinery protection rack, the 330930-045-04-CN probe is also compatible with the 3500/42M Proximitor®/Seismic Monitor module when the rack is configured for 3300 XL transducer inputs. This cross-series compatibility is particularly valuable during partial rack upgrades where the monitor cards have been modernized to 3500 while the field-installed probes remain on the 3300 XL platform — a common scenario in phased migration projects where full rack replacement is deferred to the next major turnaround.

Wiring integrity is a frequent root cause of proximity transducer faults that are misdiagnosed as probe failures. The Bently Nevada 330130 extension cable — the standard interconnect between the probe and the Proximitor® module — should be inspected and replaced if the outer jacket shows cracking, the coaxial shield continuity is compromised, or the cable has been routed through areas with sustained mechanical vibration. A new 330930-045-04-CN probe installed on a degraded extension cable will not restore the system to its original performance baseline.

For installations where the existing probe mounting bracket has corroded or the thread insert in the bearing housing has been damaged, Bently Nevada 330180 series probe mounting hardware provides the correct thread form and material specification for both metric M10 and imperial 3/8-24 UNF installations. Using non-OEM mounting hardware risks misalignment of the probe tip relative to the shaft centerline, introducing a systematic offset error into the vibration measurement.

Plants simultaneously upgrading their condition monitoring software from legacy System 1 to System 1 Evolution should note that the 330930-045-04-CN probe’s analog output is fully supported by the new platform without any transducer-level hardware changes. The migration effort is confined to the software configuration layer, and the existing field wiring, Proximitor® modules, and probes can remain in service throughout the software transition.

For facilities managing a broader machinery protection modernization — for example, replacing an aging Bently Nevada 3300 rack with a new 3500 rack while retaining field-installed 3300 XL probes — TOPNLMS can supply the full bill of materials including 3500/15 Power Supply modules, 3500/22M Transient Data Interface cards, and the associated 3500/92 Communication Gateway modules required to integrate the new rack into a plant DCS or historian via Modbus TCP or OPC-DA. This end-to-end supply capability reduces procurement lead time and simplifies vendor management during complex migration projects.

In summary, the 330930-045-04-CN is a well-understood, widely deployed transducer with a mature ecosystem of compatible signal conditioning, cabling, mounting, and monitoring hardware. TOPNLMS stocks the key components in this ecosystem and can fulfill multi-line purchase orders to support planned turnaround maintenance, emergency replacements, and phased modernization projects.

Retrofit Guidance FAQ

Q: Can I install the 330930-045-04-CN without recalibrating the Proximitor® module?
A: Yes, provided the replacement probe is the same model as the original. The Proximitor® module’s scale factor and gap voltage settings are calibrated to the 3300 XL NSv probe family. A like-for-like replacement does not require recalibration. You should verify the physical gap (typically 1.0–1.5 mm) using a calibrated gap meter after installation and confirm the DC gap voltage at the Proximitor® output terminal falls within the specified linear range.

Q: Is the wiring connection compatible with my existing field junction box?
A: The -CN suffix denotes a standard coaxial field-wireable connector. The center conductor carries the probe signal and the shield is the return/ground. This is the same wiring convention used across the 3300 XL NSv family, so the existing field junction box terminations do not need to be modified.

Q: Will this probe work with my 3500 Series monitor rack?
A: Yes, when the 3500 monitor card is configured for 3300 XL transducer inputs. The 3500/42M and 3500/40M monitor cards support 3300 XL NSv probes natively. Confirm the rack configuration in the 3500 Rack Configuration Software before installation.

Q: How do I handle the physical space constraint if the original probe bracket is damaged?
A: The 330930-045-04-CN uses a standard M10 × 1 thread and the same probe body diameter as all 3300 XL 8 mm probes. If the bracket or thread insert is damaged, Bently Nevada 330180 series mounting hardware provides a direct replacement. No modification to the bearing housing or control cabinet is required.

Q: Can this probe be used in a hot-swap replacement during a short maintenance window?
A: The mechanical installation is straightforward and typically completed within 30–60 minutes per probe point. The primary time constraint is the gap-setting verification step. TOPNLMS recommends having a calibrated gap meter and the machine’s original gap voltage specification sheet on hand before beginning the replacement to minimize total downtime.

Q: What communication protocol does this transducer use?
A: The 330930-045-04-CN is a passive analog device producing a DC voltage output — there is no digital communication protocol at the transducer level. Protocol considerations (Modbus TCP, OPC-DA, HART) apply at the monitor rack and DCS integration layer, not at the probe itself.

Warranty Assurance

Every 330930-045-04-CN unit shipped by TOPNLMS carries a 12-month warranty from the date of shipment. Prior to dispatch, each unit undergoes electrical performance verification including output sensitivity check, insulation resistance test, and connector integrity inspection. Units that do not meet Bently Nevada’s original published specifications are quarantined and not offered for sale.

In the event of a warranty claim, TOPNLMS provides a replacement unit or full refund within the warranty period. Our after-sales response target is 24 hours for initial acknowledgment and 72 hours for resolution proposal. Warranty claims are processed via email at [email protected] with the order number and a brief description of the observed fault.

For procurement teams requiring documentation, TOPNLMS can provide a test report, packing list, and commercial invoice with each shipment. Export documentation for international orders is prepared in compliance with Chinese customs regulations, with accurate HS code classification to facilitate smooth customs clearance at the destination port.

TOPNLMS ships globally from Xiamen, China. Standard lead time for in-stock units is 3–5 business days to most destinations. Express shipping options (DHL, FedEx, UPS) are available for emergency replacement requirements. Bulk orders for turnaround maintenance kits are welcomed — contact our team for volume pricing and consolidated shipment arrangements.
