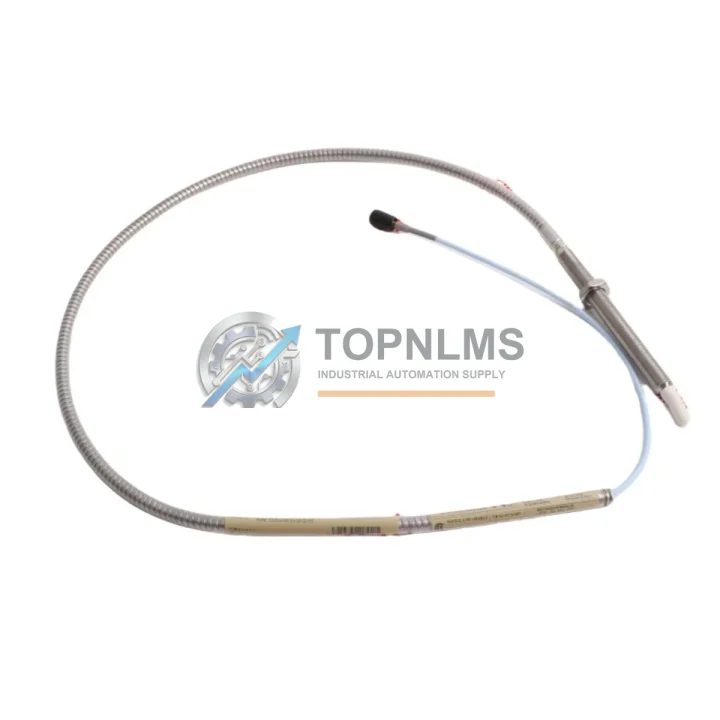

Bently Nevada 330910-00-11-10-02-00 Original Industrial Spare 3300 NSv

Product Overview

Bently Nevada 330910-00-11-10-02-00 Original Industrial Spare 3300 NSv: System Stability and Machinery Protection Value

The Bently Nevada 330910-00-11-10-02-00 is an original 8mm eddy-current proximity probe from the industry-standard 3300 NSv (Non-Standard Voltage) series, engineered for continuous shaft vibration and axial position monitoring in critical rotating machinery. In power generation, oil & gas, petrochemical, and heavy manufacturing environments, this probe is a cornerstone of machinery protection systems that operate 24/7 under demanding thermal, mechanical, and chemical conditions.

When a proximity probe fails or degrades, the consequences extend far beyond the sensor itself. Vibration data integrity is compromised, alarm thresholds become unreliable, and the risk of undetected rotor instability increases significantly. Maintaining a verified original replacement — the 330910-00-11-10-02-00 — in your spare parts inventory ensures that your maintenance team can execute a rapid, validated swap without waiting on lead times that can stretch days or weeks for specialty instrumentation. This is not merely a procurement decision; it is a system reliability strategy that directly impacts uptime, safety, and long-term maintenance cost control.

Critical Technical Specs

Preventive Maintenance Strategy

A proximity probe replacement is rarely an isolated event. When maintenance teams open a machinery protection panel or turbine control cabinet for a probe swap, it is operationally efficient — and strategically sound — to conduct a broader inspection of the entire measurement chain and associated control infrastructure. The 330910-00-11-10-02-00 operates as part of a three-component measurement system, and each element of that chain deserves attention during any planned maintenance window.

The 3300 NSv Proximitor® Sensor (e.g., 330180-X1-05) converts the probe’s raw eddy-current signal into a calibrated voltage output. If the probe is being replaced due to signal anomalies, the Proximitor should be bench-tested simultaneously to rule out signal conditioning drift — a degraded Proximitor can produce false readings even with a new probe installed. The extension cable (typically 330130-series or 330140-series, matched to total system cable length) is a frequent source of intermittent faults due to connector corrosion or jacket damage in high-vibration environments; inspect and replace as a matched set where possible.

At the rack level, the 3500/42M Proximitor®/Seismic Monitor or 3500/40M Proximitor® Monitor I/O module processes the conditioned signal. These modules should be checked for firmware currency and channel calibration records during any probe-related maintenance window. Alongside the monitor module, the 3500/20 Rack Interface Module (RIM) governs communication between the protection rack and the plant DCS or safety system — a degraded RIM can mask genuine alarm conditions even when the probe and Proximitor are functioning correctly.

Power supply integrity is equally critical. The 3500/15 Power Supply Module provides regulated DC power to the entire 3500 rack; a marginal power supply operating near its load limit can introduce noise into proximity channels, producing false vibration readings. Scheduled load testing of the power supply during planned outages is a low-cost measure that prevents high-consequence failures. For facilities running legacy 3300 series racks alongside newer 3500 infrastructure, the 3300/16 I/O Module and associated 3300/55 Keyphasor® Module should be included in the inspection scope — the Keyphasor signal is the timing reference for phase-referenced vibration analysis, and a degraded module will corrupt all phase data across the rack.

Finally, do not overlook the terminal strip assemblies and field wiring barriers within the junction box connecting the probe cable to the rack. Loose terminations and corroded barrier strips are a leading cause of intermittent proximity channel faults that are frequently misdiagnosed as probe failures. A thorough termination inspection — combined with replacement of any degraded Zener barrier or galvanic isolator modules in the intrinsically safe circuit — completes a comprehensive maintenance cycle that maximizes the value of the probe replacement investment and extends the operational life of the entire machinery protection system.

Strategic Replacement Solutions

The 330910-00-11-10-02-00 is a direct original replacement for aging 3300 NSv probes installed during the 1990s and 2000s in turbines, compressors, pumps, and gearboxes across global industrial facilities. Many of these installations remain in service well beyond their original design life, making access to verified original spares — rather than uncertified aftermarket alternatives — a critical risk management priority.

Using an original Bently Nevada probe preserves the factory-calibrated sensitivity curve (7.87 V/mm) that the Proximitor sensor and monitor module are configured to expect. Substituting a non-original probe with a different sensitivity coefficient — even if physically compatible — will introduce systematic measurement error across the entire channel, potentially causing missed alarms or nuisance trips. For facilities operating under API 670 machinery protection standards, original part traceability is also a compliance requirement that cannot be satisfied by aftermarket substitutes.

From a lifecycle management perspective, stocking the 330910-00-11-10-02-00 as a critical spare reduces mean time to repair (MTTR) for proximity channel failures from days to hours. For rotating equipment running at 3,000–3,600 RPM in continuous service, every hour of unplanned downtime carries significant production cost. A single probe in inventory, pre-tested and ready for installation, is one of the highest-ROI spare parts investments available to a rotating equipment reliability program. For multi-train facilities, a tiered stocking strategy — one probe per critical train plus a facility-level buffer of 2–3 units — provides comprehensive coverage without excessive capital commitment.

All units supplied by TOPNLMS are tested prior to shipment for output voltage, linearity, and connector integrity. Each probe ships with a 12-month warranty covering manufacturing defects and signal performance, providing procurement teams with the documentation required for spare parts qualification records and maintenance management system (CMMS) entries.

Support FAQ

Q1: How do I verify compatibility between the 330910-00-11-10-02-00 and my existing Proximitor sensor?
The 330910-00-11-10-02-00 is designed for use with the 3300 NSv Proximitor® Sensor system. Compatibility is confirmed by matching the probe tip diameter (8mm), total cable length, and system sensitivity (200 mV/mil / 7.87 V/mm). If your Proximitor is a 3300 XL 8mm model, this probe is also compatible. Always verify the total cable length (probe + extension) matches the Proximitor’s calibrated range before installation to avoid sensitivity errors.

Q2: What does the pre-shipment test cover, and what is included in the 12-month warranty?
Every unit is tested for output voltage at nominal gap, signal linearity across the full measurement range, and connector pin integrity before dispatch. The 12-month warranty covers manufacturing defects and signal performance deviations from published specifications. Test documentation is provided at the time of shipment to support spare parts qualification and CMMS records.

Q3: Can this probe replace units in a system that is no longer in active production by Bently Nevada?
Yes. The 330910-00-11-10-02-00 remains available as an original spare part and is fully interchangeable with probes installed in legacy 3300 NSv systems. For facilities managing end-of-life machinery protection infrastructure, we recommend stocking a minimum of two probes per critical machine train to cover both immediate replacement needs and a secondary contingency spare, reducing dependency on spot-market availability.

Q4: What is the recommended inventory strategy for proximity probes in a multi-train facility?
For facilities with five or more monitored machine trains using 3300 NSv or 3500-series proximity systems, a tiered inventory approach is recommended: maintain one probe per critical train as an immediate-swap spare, and hold a facility-level buffer of 2–3 additional probes for non-critical trains and emergency coverage. Probes should be stored in original packaging in a temperature-controlled environment and inspected annually for connector condition and cable jacket integrity.
