Bently Nevada 330905-05-10-10-12-CN Original Industrial Spare 3300 Compatible

Product Overview

Bently Nevada 330905-05-10-10-12-CN Original Industrial Spare 3300 Compatible: System Stability and Industrial Spare Parts Maintenance Value

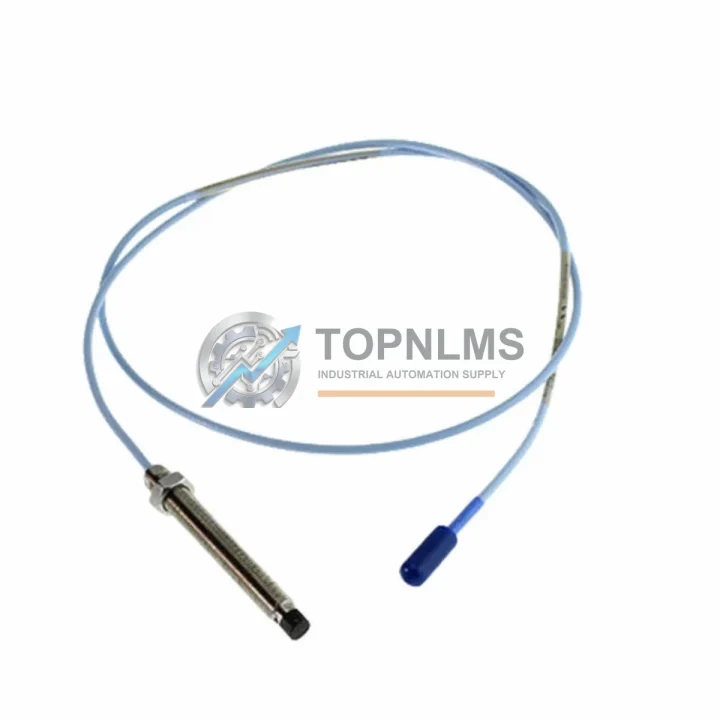

The Bently Nevada 330905-05-10-10-12-CN is an original eddy-current proximity probe engineered for the 3300 Series vibration monitoring system — one of the most widely deployed machinery protection platforms in rotating equipment facilities worldwide. Whether you are managing a planned shutdown, responding to an unplanned trip, or building a strategic spare parts inventory for a critical asset, this probe delivers the dimensional accuracy, signal linearity, and API 670 compliance required to restore your monitoring loop to full operational integrity without system reconfiguration.

In high-availability plants — petrochemical, power generation, compressor stations, and heavy manufacturing — the 3300 Series proximity probe system forms the backbone of shaft vibration, axial position, and differential expansion measurement. A degraded or failed probe does not merely generate a maintenance work order; it can trigger a protective shutdown, mask a developing fault, or force a bypass that elevates operational risk. Stocking the 330905-05-10-10-12-CN as a certified original replacement eliminates the guesswork of field substitution and ensures your monitoring chain remains traceable and audit-ready.

Critical Technical Specs Table

Preventive Maintenance Strategy

A proximity probe replacement is rarely an isolated event. The 3300 Series monitoring loop is a system — and a disciplined maintenance strategy treats it as one. When replacing the 330905-05-10-10-12-CN, experienced reliability engineers use the opportunity to inspect and, where appropriate, pre-stage spares for the entire measurement chain.

Begin with the 3300 XL extension cable (typically 330130-045-00-CN or equivalent length-matched variant). Extension cables are subject to connector wear, jacket abrasion in cable trays, and moisture ingress at junction boxes — all of which degrade the probe system’s scale factor and introduce noise into the vibration signal. A probe replacement performed without verifying extension cable integrity is an incomplete repair.

Next, inspect the Bently Nevada 3300 XL proximitor/oscillator-demodulator (such as the 330180-X1-05 or 330180-51-05). The proximitor converts the probe’s raw oscillator signal into a DC voltage proportional to gap distance. Proximitors have a finite service life in high-temperature enclosures and should be bench-tested or replaced on a defined interval — particularly in machines with a history of probe-related nuisance trips.

While the control cabinet is open, verify the condition of the 3500 Series rack components if the plant has migrated to the 3500/42M Proximitor Monitor. Check the 3500/20 power supply module for output voltage stability and ripple — a marginal power supply is a common root cause of unexplained probe system drift. Similarly, inspect the 3500/22M transient data interface and confirm that all I/O terminal blocks are torqued to specification and free of oxidation.

For machines where the 330905-05-10-10-12-CN monitors axial position, cross-reference the reading against the thrust bearing temperature sensors and any installed Bently Nevada 3300 RAM (Rotor Absolute Motion) probes. Axial position and thrust bearing condition are interdependent indicators — a probe that reads correctly but disagrees with bearing temperature trends warrants further investigation before the machine is returned to service.

In facilities running legacy Bently Nevada 7200 Series or 3000 Series systems alongside newer 3300 installations, it is prudent to audit probe-to-driver compatibility across all measurement points during any planned outage. Mismatched probe-driver pairs — even within the same brand family — produce scale factor errors that can cause protective systems to trip at incorrect vibration levels or, more dangerously, fail to trip when they should.

Finally, review the junction box terminal strips, shielded signal cables between the junction box and the monitor rack, and the rack grounding bus. Ground loops and shield discontinuities are among the most persistent sources of high-frequency noise in proximity probe systems and are frequently overlooked during corrective maintenance focused solely on the probe itself.

Strategic Replacement Solutions

The 330905-05-10-10-12-CN directly replaces earlier Bently Nevada 3300 Series probe configurations that share the same 10 mm tip diameter and 5 m cable length but may carry legacy part numbers from pre-Baker Hughes product line consolidations. Plants that have been operating the same rotating machinery for 15–25 years often find that their original probe part numbers have been superseded — the 330905-05-10-10-12-CN is the current production equivalent and is fully backward-compatible with existing 3300 XL proximitor/driver pairs without requiring gap recalibration, provided the target material and gap distance remain within the original design specification.

For facilities managing end-of-life machinery where OEM support has been discontinued, sourcing original Bently Nevada probes from authorized distributors like TOPNLMS provides a cost-effective alternative to full system replacement. A single probe swap — completed during a scheduled 4-hour maintenance window — can extend the operational life of a critical asset by years, deferring capital expenditure on new monitoring infrastructure while maintaining API 670 compliance for insurance and regulatory purposes.

Compared to third-party compatible probes, the original 330905-05-10-10-12-CN eliminates the risk of scale factor deviation, connector incompatibility, and certification gaps that can invalidate machinery protection system audits. For plants subject to IEC 61511, ISO 13709, or internal SIL assessment requirements, using original certified components is not merely a preference — it is a documented risk control measure.

Support FAQ

Q1: Is the 330905-05-10-10-12-CN compatible with both the 3300 XL and 3500 Series monitor racks?
Yes. The 330905-05-10-10-12-CN is designed for use with Bently Nevada 3300 XL proximitor/oscillator-demodulators and is also compatible with 3500/42M Proximitor Monitor inputs when paired with the correct extension cable and gap setting. Always verify the driver part number and confirm the system scale factor matches your monitor configuration before installation.

Q2: What pre-shipment testing is performed on this probe?
Each 330905-05-10-10-12-CN unit supplied by TOPNLMS undergoes functional verification including oscillator frequency check, scale factor measurement, and connector integrity inspection prior to dispatch. Units are shipped in original or equivalent protective packaging to prevent tip damage and cable kinking in transit.

Q3: What does the 12-month warranty cover?
The 12-month warranty covers manufacturing defects, scale factor non-conformance, and connector failure under normal operating conditions. Warranty claims are supported by TOPNLMS with replacement or refund. Damage resulting from incorrect installation gap, incompatible driver pairing, or physical impact is excluded. Warranty documentation is provided with each shipment.

Q4: How should I manage spare probe inventory for a multi-machine facility?
For facilities with 5 or more machines monitored by 3300 Series systems, a minimum of 2 spare probes per tip-diameter/cable-length configuration is recommended. Probes should be stored in a dry, temperature-controlled environment away from strong magnetic fields. Rotate stock on a first-in, first-out basis and inspect connector pins annually. Pairing probe spares with pre-staged extension cables and a spare proximitor module significantly reduces mean time to repair during unplanned outages.
