Bently Nevada 330901-00-09-70-02-CN 3300 XY Replacement

Product Overview

Bently Nevada 330901-00-09-70-02-CN 3300 XY Replacement: Seamless Transition & Legacy System Compatibility

When a Bently Nevada 330901-00-09-70-02-CN NSv Proximity Probe fails or reaches end-of-service life in your 3300 XY vibration monitoring system, unplanned downtime is the immediate risk. TOPNLMS supplies this exact replacement probe — fully compatible with the 3300 XY Series monitor architecture — enabling plant engineers and reliability teams to restore continuous shaft vibration and position monitoring without redesigning the measurement loop or reconfiguring the monitor rack.

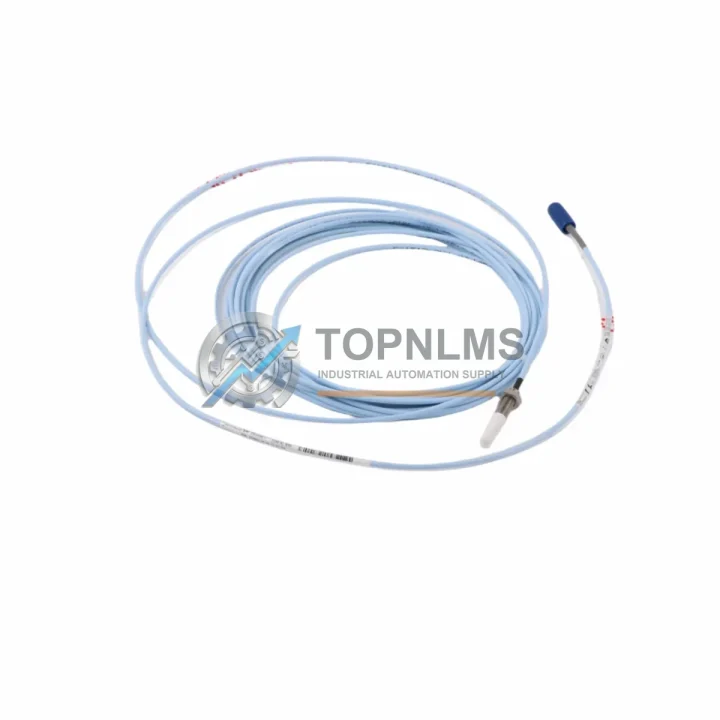

The 330901-00-09-70-02-CN is a 3300 NSv (Non-contact Sensing via eddy-current) proximity probe with a 9 mm tip diameter, 70 mm cable extension, and a standard 2-metre armored extension cable terminating in a MIL-spec connector. It operates within the Bently Nevada 3300 XY system alongside the 3300 XL 8mm Proximity Transducer System and the 330130 Proximitor® Sensor, forming a complete eddy-current measurement chain. When replacing this probe, the associated 330130-045-00-00 Proximitor® Sensor and the 330180 Extension Cable must be verified for compatibility — mismatched cable lengths or Proximitor® gap voltage settings are the most common commissioning errors during a probe swap.

For facilities running legacy Bently Nevada 3500 Series machinery protection racks, the 330901-00-09-70-02-CN integrates directly with the 3500/42M Proximitor®/Seismic Monitor module and the 3500/25 keyphasor® module without firmware changes. The probe’s output voltage range (-2 VDC to -18 VDC at standard gap) is recognized natively by the 3500 rack I/O cards, eliminating the need for signal conditioning adapters. If your plant is migrating from an older 7200 Series proximity system to the 3300 XY platform, the probe mounting thread (M10 × 1.0) and the armored cable routing path are typically identical, reducing mechanical retrofit time significantly.

In turbomachinery applications — steam turbines, compressors, pumps, and gearboxes — the 330901-00-09-70-02-CN is commonly installed in X-Y probe pairs to measure radial shaft vibration in two orthogonal planes. During a planned outage or emergency replacement, the paired probe (typically a 330901-00-09-70-02-CN or a 330903-00-08-05-02-CN depending on shaft diameter and gap requirements) should be replaced simultaneously to maintain balanced measurement sensitivity across both channels. The 3300 XY monitor will flag a channel mismatch alarm if probe sensitivities diverge beyond the configured alert threshold.

Wiring compatibility is straightforward: the probe uses a standard coaxial signal cable with the center conductor carrying the DC bias voltage from the Proximitor® and returning the gap-proportional voltage signal. No rewiring of the junction box or the 3500 rack terminal board is required when swapping a like-for-like 330901-00-09-70-02-CN replacement. Engineers should verify the Proximitor® supply voltage (typically -24 VDC from the rack power supply module, such as the 3500/15 Power Supply) is within specification before energizing the new probe to avoid damaging the eddy-current coil.

For DCS-integrated vibration monitoring architectures — where the 3300 XY or 3500 rack outputs are wired into a Honeywell Experion PKS, Emerson DeltaV, or ABB System 800xA historian — the 4–20 mA or ±10 V analog outputs from the monitor module remain unchanged after a probe replacement. No DCS tag reconfiguration, scaling adjustment, or loop calibration is required, provided the replacement probe is the same model number and cable length as the original.

TOPNLMS maintains ready stock of the 330901-00-09-70-02-CN and related 3300 XY system components including the 330130 Proximitor® Sensor, 330180 Extension Cable assemblies, and 3500 rack modules. All units are inspected, gap-tested, and packaged for safe international shipment from our Xiamen warehouse. Standard lead time for in-stock units is 3–7 business days to most destinations.

Compatibility Comparison Table

Seamless Upgrade Solutions

A successful 330901-00-09-70-02-CN replacement rarely involves the probe alone. In most 3300 XY and 3500 Series installations, the following components are inspected or replaced concurrently to ensure system integrity after a probe swap:

The 330130-045-00-00 Proximitor® Sensor is the signal conditioning heart of the eddy-current loop. If the probe has been in service for more than five years, the Proximitor® should be gap-tested and its output linearity verified — a degraded Proximitor® will produce erroneous vibration readings even with a new probe installed. Similarly, the 330180 Extension Cable connecting the probe to the Proximitor® must be inspected for jacket damage, connector corrosion, and impedance continuity; a compromised cable is a frequent root cause of intermittent channel faults that are misdiagnosed as probe failures.

For plants running the 3500/42M Proximitor®/Seismic Monitor module, the module’s internal relay outputs and OK status logic should be verified after probe replacement using the 3500 Rack Configuration Software. If the rack also includes a 3500/25 Keyphasor® Module, the phase reference signal must be re-synchronized to the new probe’s gap voltage to ensure accurate 1× and 2× vibration vector calculations in the condition monitoring software.

In control cabinets where the 3500 rack shares a panel with a 3500/15 Power Supply module, confirm that the supply’s -24 VDC output remains within ±5% under the combined load of all Proximitor® sensors in the rack — adding a replacement probe to a marginally loaded supply can trigger nuisance OK alarms across adjacent channels. If the cabinet also houses a 3300 XY Dual Voting Logic card for safety-instrumented system (SIS) applications, the voting configuration must be reviewed after any probe replacement to maintain SIL compliance.

Plants integrating vibration data into a broader condition monitoring platform via the System 1 Evolution software suite should update the probe configuration record in the System 1 database after replacement, including the new probe serial number, installation date, and gap voltage baseline. This ensures that the trend history and alarm setpoints remain correctly associated with the physical measurement point going forward.

Retrofit Guidance FAQ

Q: Can I replace the 330901-00-09-70-02-CN without shutting down the machine?
A: Probe replacement on a running machine is not recommended for safety and measurement integrity reasons. A planned short outage is strongly preferred. If a hot-swap is operationally required, consult your site safety procedures and verify that the 3500 rack is configured for single-channel bypass mode before disconnecting the probe.

Q: Do I need to recalibrate the Proximitor® after installing a new probe?
A: If the replacement probe is the same model number and cable length as the original, and the Proximitor® is in good condition, a full recalibration is typically not required. However, a gap voltage check at the installed gap distance is always recommended to confirm the measurement chain is within the Bently Nevada specified linear range.

Q: Is the 330901-00-09-70-02-CN compatible with non-Bently Nevada monitors?
A: The probe’s eddy-current output (-2 VDC to -18 VDC) is compatible with any monitor that accepts a standard Bently Nevada-format proximity signal. Third-party monitors from Metrix, Emerson, or Rockwell Automation that support this signal range can be used, but gap calibration must be performed independently as the Proximitor® calibration curves are specific to the 3300 NSv probe family.

Q: What is the correct installation gap for this probe?
A: The standard linear range for the 330901-00-09-70-02-CN is 0.25 mm to 2.25 mm (10 mil to 90 mil). The recommended installed gap is typically 1.0 mm to 1.5 mm (40 mil to 60 mil) for most turbomachinery applications, corresponding to a Proximitor® output of approximately -10 VDC to -12 VDC. Verify against the OEM machinery specification for your specific application.

Q: Can this probe replace a 7200 Series proximity probe in an older installation?
A: The 330901-00-09-70-02-CN can physically replace a 7200 Series probe in most installations due to the identical M10 × 1.0 mounting thread. However, the 7200 Series uses a different Proximitor® (e.g., 7200-14-01-10-00), and the two systems are not electrically interchangeable without replacing the Proximitor® as well. A full migration from 7200 to 3300 XY requires replacing both the probe and the Proximitor® as a matched pair.

Q: How do I verify the probe is functioning correctly after installation?
A: With the machine stationary, measure the Proximitor® output voltage at the installed gap using a calibrated voltmeter. Compare the reading against the probe’s calibration curve. Then verify the 3500 rack OK status LED is illuminated and no channel fault alarms are active in the rack configuration software before returning the machine to service.

Warranty Assurance

Every 330901-00-09-70-02-CN NSv Proximity Probe shipped by TOPNLMS is covered by a 12-month warranty from the date of shipment. Prior to dispatch, each unit undergoes a functional inspection including coil continuity verification, connector integrity check, and cable jacket inspection. Units that do not meet our outgoing quality standard are quarantined and not shipped.

In the event of a warranty claim, TOPNLMS will provide a replacement unit or full refund within the warranty period, subject to inspection of the returned item. Our after-sales response target is 24 hours for initial acknowledgment and 72 hours for resolution proposal. Warranty claims are processed via email at [email protected] with the order number, failure description, and photographic evidence of the defect.

For procurement teams requiring documentation, TOPNLMS can provide a Certificate of Conformance, packing list, and commercial invoice with HS code declaration for customs clearance. Export from Xiamen to most destinations in Asia, Europe, the Middle East, and the Americas is supported. Expedited shipping options (DHL Express, FedEx International Priority) are available for emergency replacement orders.

TOPNLMS maintains a no-surprise procurement policy: the price quoted is the price invoiced, lead times are confirmed before order acceptance, and stock availability is verified against physical warehouse inventory before commitment. For standing orders or blanket purchase agreements covering multiple 3300 XY or 3500 Series components, contact our sales team to discuss volume pricing and reserved stock arrangements.
