Bently Nevada 330876-01-90-00-00 Replacement for 3300 XL

Product Overview

Bently Nevada 330876-01-90-00-00 Replacement for 3300 XL: Seamless Transition from Legacy Vibration Monitoring Systems

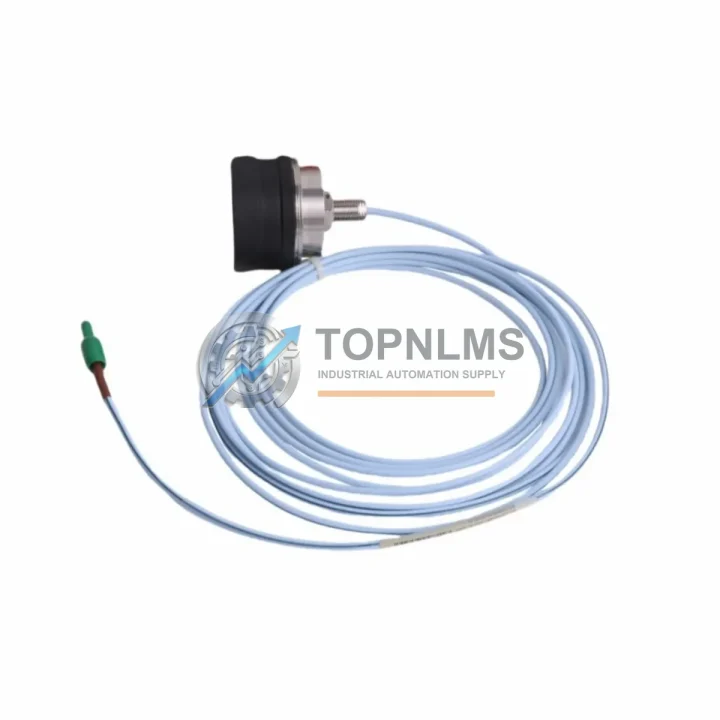

The Bently Nevada 330876-01-90-00-00 is a 50 mm proximity transducer engineered for the 3300 XL Series eddy-current measurement system. As rotating machinery protection programs mature and original equipment reaches end-of-life, plant engineers increasingly require a verified, drop-in replacement that preserves existing wiring infrastructure, signal conditioning compatibility, and machinery protection system (MPS) calibration — without forcing a full-platform migration. TOPNLMS stocks this SKU and ships globally from Xiamen, China, with a 12-month warranty on every unit.

Whether your facility is retiring a legacy 3300 Series rack and migrating to a 3500 Series machinery protection system, or simply replacing a failed transducer in an existing 3300 XL installation, the 330876-01-90-00-00 provides the electrical and mechanical interface your system expects. The 50 mm sensing range, 200 mV/mil (7.87 V/mm) scale factor, and standard 5-metre integral cable are identical to the original specification, ensuring that no recalibration of the 3300 XL proximitor/driver — such as the 330180-91-00 or 330180-X1-05 — is required after swap-out.

Compatibility Comparison Table

Seamless Upgrade Solutions

A successful 3300 XL transducer replacement rarely involves a single component. In practice, field engineers upgrading from a legacy 3300 Series installation or decommissioning a failed measurement loop will also evaluate the condition of the associated proximitor/driver module — typically a 330180-91-00 or 330180-X1-05 — which conditions the raw eddy-current signal before it reaches the monitor rack. If the proximitor shows drift or calibration error, replacing it alongside the 330876-01-90-00-00 transducer eliminates the most common sources of measurement uncertainty in a single maintenance window.

For facilities migrating from a 3300/16 or 3300/20 rack to a 3500 Series machinery protection system, the upgrade path typically involves installing a 3500/42M Proximitor/Seismic Monitor module and re-terminating the transducer cable at the new I/O terminal block. The 330876-01-90-00-00 is electrically compatible with 3500 Series signal conditioning, meaning the transducer itself does not need to be replaced during a rack-level migration — only the proximitor and monitor card change. This significantly reduces the physical scope of the retrofit and preserves the existing cable routing through the control cabinet.

Where the measurement loop feeds a DCS or safety instrumented system (SIS), engineers should verify that the 4–20 mA output from the 3300 XL monitor card — often a 3300/25 or 3300/55 module — remains within the input range of the receiving controller. In Emerson DeltaV or Honeywell Experion environments, this typically requires no configuration change, as the analog input card simply reads the retransmitted vibration signal. However, if the site is simultaneously upgrading the I/O subsystem, installing a new CHARM I/O module or a Series C I/O card alongside the transducer replacement ensures the signal chain is fully modernized.

Wiring continuity is another critical checkpoint. The 330876-01-90-00-00 uses a standard coaxial cable terminated with a BNC connector at the proximitor end. If the existing extension cable — such as a 330130-045-00-CN or equivalent 3300 XL extension cable — shows insulation degradation or connector wear, replacing it at the same time as the transducer prevents nuisance trips after restart. A replacement extension cable matched to the original length avoids any need to re-enter cable compensation values in the proximitor.

For sites that also need to replace the keyphasor transducer — commonly a 330980-50-00 or 330980-70-00 — during the same outage, TOPNLMS can supply both units together, reducing freight cost and consolidating the incoming inspection process. Keyphasor and radial vibration transducers from the same 3300 XL family share identical installation tooling and mounting thread specifications, simplifying the field technician’s workflow.

Retrofit Guidance FAQ

Q: Can I install the 330876-01-90-00-00 without modifying existing wiring?
Yes. The transducer uses the same coaxial cable interface and BNC connector as the original 3300 XL 50 mm transducer. No wiring modification is required. Simply disconnect the old transducer at the proximitor input, remove it from the mounting bracket, thread in the replacement, and reconnect the cable.

Q: Do I need to recalibrate the proximitor/driver after replacement?
Not under normal circumstances. The 330876-01-90-00-00 maintains the same 200 mV/mil scale factor as the original. If the proximitor — such as a 330180-91-00 — was calibrated to this scale factor, the system will read correctly after transducer swap. A functional verification check (gap voltage confirmation at the target shaft) is recommended but full recalibration is not required.

Q: Is this transducer compatible with 3500 Series monitor racks?
Yes. The 3300 XL transducer family is electrically compatible with 3500 Series proximitor/seismic monitor modules such as the 3500/42M. The transducer output signal meets the input specification of the 3500 Series signal conditioning chain. No hardware modification is needed at the transducer level when migrating the rack.

Q: What is the physical installation space requirement?
The 330876-01-90-00-00 uses a standard M10 × 1.0 or 3/8-24 UNF mounting thread, identical to the original. The probe body diameter and overall length are unchanged, so existing mounting brackets, armour, and lock nuts are fully reusable. No machining or bracket modification is required.

Q: How do I verify the transducer is functioning correctly after installation?
With the shaft stationary, measure the DC gap voltage at the proximitor output. For a 50 mm transducer at the nominal 2 mm gap, the expected output is approximately −10 VDC (±0.5 V). This confirms the eddy-current loop is intact and the proximitor is driving the transducer correctly. Dynamic verification can be performed during the next slow-roll or coast-down event.

Q: Can TOPNLMS supply a matched extension cable with this transducer?
Yes. We stock 3300 XL extension cables in standard lengths. Please specify the required cable length when ordering so we can confirm the correct part number and ensure the complete measurement loop ships together.

Warranty Assurance

Every Bently Nevada 330876-01-90-00-00 unit shipped by TOPNLMS is covered by a 12-month warranty from the date of delivery. Prior to dispatch, each unit undergoes a pre-shipment functional inspection that verifies connector integrity, cable continuity, and probe body condition. Units that do not pass inspection are not shipped.

If a unit develops a fault within the warranty period under normal operating conditions, TOPNLMS will arrange a replacement at no additional cost. Our after-sales response target is one business day for warranty claims, and replacement units are dispatched from Xiamen with priority freight to minimize your system downtime.

For procurement teams requiring documentation, we can provide an inspection report, packing list, and commercial invoice with each shipment. Lead time for in-stock units is typically 3–5 business days to most international destinations. Express shipping options are available for urgent replacement requirements.
