Bently Nevada 330851-02-000-066-10-00-00 Replacement for 3300 XL

Product Overview

Bently Nevada 330851-02-000-066-10-00-00 Replacement for 3300 XL: Smooth Transition from Legacy Vibration Monitoring Systems

When your rotating machinery protection system depends on the Bently Nevada 3300 XL Series, an unplanned probe failure or end-of-life notification on the 330851-02-000-066-10-00-00 25mm eddy-current proximity probe can trigger immediate production risk. TOPNLMS supplies this exact replacement unit — fully compatible with the 3300 XL monitoring architecture — to help maintenance engineers and reliability teams restore continuous vibration monitoring with zero system redesign.

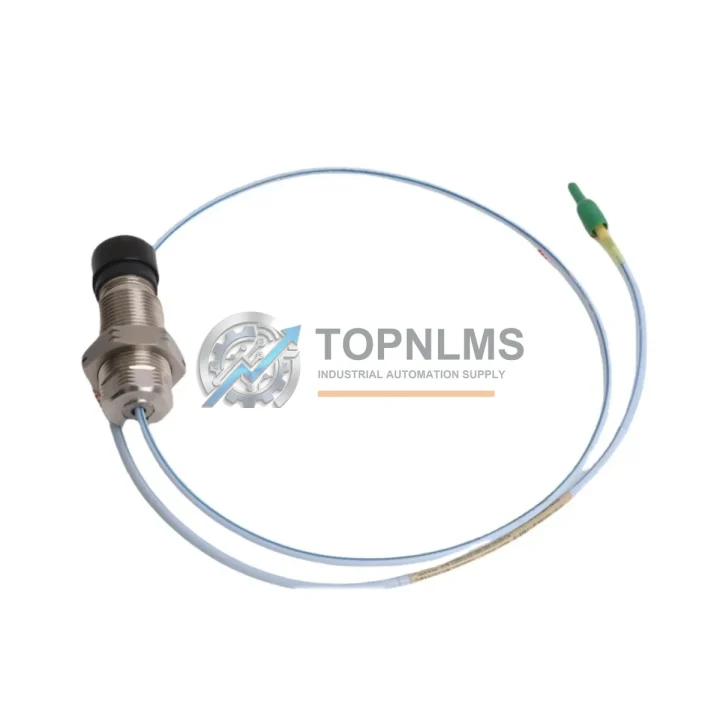

The Bently Nevada 330851-02-000-066-10-00-00 is a 25mm eddy-current proximity probe engineered for non-contact radial and axial shaft displacement measurement on turbines, compressors, pumps, and gearboxes. It operates within the 3300 XL transducer system, working in conjunction with the 330130-080-00-00 extension cable and the 330180-X1-05 proximitor/oscillator to deliver a calibrated output signal to the monitoring rack. When replacing a failed or degraded probe, the entire transducer chain — probe, extension cable, and proximitor — should be inspected as a matched set to maintain system accuracy and API 670 compliance.

For facilities currently operating legacy 3300/16 monitoring racks or older 7200 Series proximity systems, the migration path to the 3300 XL platform is well-established. The 330851-02-000-066-10-00-00 probe uses the standard 5-metre integral cable configuration with a 25mm tip diameter, making it physically interchangeable with earlier 3300 Series probes in most bearing housing installations where the probe holder and target material (typically low-alloy steel or 4140 steel shaft) remain unchanged. Engineers migrating from the 330101-00-06-10-02-00 or similar 3300 Series probes will find that wiring terminations at the junction box and the proximitor connector pinout are compatible, significantly reducing field rewiring time during a planned outage.

In turbomachinery control cabinets where the 3500 Series machinery protection system has been partially deployed alongside legacy 3300 XL racks, the 330851-02-000-066-10-00-00 continues to serve as the field-side transducer feeding 3300 XL monitor modules such as the 3300/20 dual-channel monitor or the 3300/25 radial vibration monitor. The probe’s output sensitivity of 7.87 V/mm (200 mV/mil) is consistent with the 3300 XL system calibration, so no re-ranging of monitor trip setpoints is required when performing a like-for-like replacement.

For greenfield upgrades or brownfield retrofits where the control room is transitioning to a System 1 Evolution condition monitoring platform, the 330851-02-000-066-10-00-00 remains the recommended field transducer. Its signal is fully compatible with System 1 data acquisition via the 3500 rack’s I/O modules, allowing engineers to preserve existing probe installations while upgrading the monitoring and analytics layer. This approach minimises capital expenditure and avoids the need to re-drill bearing housings or re-qualify probe gap settings during the software migration.

Installation of the replacement probe follows the standard Bently Nevada gap-setting procedure: with the shaft stationary, the probe tip is advanced to achieve a gap voltage of approximately −10 VDC (corresponding to a physical gap of 1.27 mm / 50 mils for a 25mm probe in the 3300 XL system). This gap is verified using the proximitor’s DC output before the locknut is torqued to specification. Where the existing probe holder thread (typically M10×1 or 3/8-24 UNF depending on the installation standard) is in good condition, no machining is required. If the probe holder shows wear or corrosion, TOPNLMS recommends sourcing a compatible 330175-02-00 probe holder at the same time to ensure a clean installation.

Procurement teams evaluating this replacement should note that the 330851-02-000-066-10-00-00 is stocked and inspected at our Xiamen facility. Each unit undergoes functional verification of tip impedance, cable continuity, and connector integrity before dispatch. Units are shipped in anti-static protective packaging with a calibration reference sheet. Standard lead time for in-stock units is 3–7 business days to most international destinations via DHL Express or FedEx International Priority. For urgent plant shutdowns, same-day dispatch is available on confirmed orders placed before 14:00 CST.

Compatibility Comparison Table

Seamless Upgrade Solutions

A successful 3300 XL probe replacement rarely involves the probe alone. During a planned outage or emergency swap, reliability engineers typically audit the full transducer chain and adjacent monitoring infrastructure. The 330130-080-00-00 extension cable (5m, standard BN coaxial) is the most common companion item — cable jacket degradation and connector corrosion are frequent causes of intermittent gap voltage drift that is often misdiagnosed as probe failure. Replacing the probe and extension cable together as a matched set eliminates this diagnostic ambiguity.

The 330180-X1-05 proximitor/oscillator is the signal conditioning module that converts the probe’s impedance change into the −24 VDC-referenced voltage output read by the monitor. If the proximitor has been in service for more than 10 years or shows drift in the DC output at a known gap, replacing it alongside the 330851-02-000-066-10-00-00 probe ensures the entire transducer system is re-baselined. For facilities migrating from the older 3300/05 proximitor, the 330180 series is the direct functional replacement and mounts in the same DIN-rail or panel-mount footprint.

At the monitoring rack level, sites running the 3300/20 dual-channel radial vibration monitor or the 3300/25 radial vibration monitor will find that the 330851-02-000-066-10-00-00 integrates without any module reconfiguration. For sites that have already partially migrated to the 3500/42M enhanced proximitor monitor, the probe’s output is equally compatible, allowing a phased rack upgrade without disturbing field wiring. The 3500/22M transient data interface module, often installed alongside vibration monitors for startup and coast-down data capture, also accepts the 3300 XL transducer signal directly.

Power supply integrity is a frequently overlooked element of probe replacement projects. The 3500/15 power supply module provides the regulated −24 VDC rail that feeds the proximitor network. If the existing power supply is approaching its rated service life or shows output ripple, sourcing a replacement 3500/15 at the same time as the probe prevents a secondary failure from masking the success of the probe swap. Similarly, the 3500/05 system rack backplane should be inspected for connector wear if the probe replacement is being performed as part of a broader control system life-extension programme.

For facilities where the vibration monitoring data feeds into a distributed control system via a 3500/92 communication gateway (Modbus, Profibus, or Ethernet/IP), no gateway reconfiguration is required when replacing the 330851-02-000-066-10-00-00 on a like-for-like basis, since the monitor channel mapping and engineering unit scaling remain unchanged. This is a significant advantage for sites where the DCS historian or SCADA system has been configured with fixed tag addresses tied to the 3300 XL monitor outputs.

Retrofit Guidance FAQ

Q: Can I replace only the probe without replacing the extension cable and proximitor?
A: Yes, a probe-only replacement is valid if the extension cable and proximitor have been recently tested and show no degradation. However, if the system has been in service for more than 5–7 years without a transducer audit, replacing all three components as a matched set is strongly recommended to avoid residual calibration error from aged components.

Q: Will the gap voltage setting change when I install the 330851-02-000-066-10-00-00 to replace an older 3300 Series probe?
A: No. The 3300 XL 25mm probe uses the same sensitivity curve (7.87 V/mm) as the legacy 3300 Series 25mm probes. The target gap of approximately −10 VDC at 1.27 mm (50 mils) is unchanged. Re-gap the probe using the standard BN procedure and verify the output at the proximitor test point before returning the machine to service.

Q: Is the wiring at the junction box compatible with the existing installation?
A: Yes. The 330851-02-000-066-10-00-00 uses the standard Bently Nevada coaxial cable termination. The centre conductor (signal), shield (common), and outer jacket connections at the field junction box are identical to previous 3300 Series probes. No rewiring is required at the junction box or the proximitor input connector.

Q: Does the probe fit in the existing probe holder without modification?
A: In the majority of installations, yes. The 25mm probe body diameter and thread specification (M10×1 or 3/8-24 UNF) are consistent across the 3300 and 3300 XL series. If the probe holder thread is damaged or the holder is a non-standard OEM design, contact TOPNLMS for dimensional confirmation before ordering.

Q: Can this probe be used with a 3500 Series rack directly?
A: The 330851-02-000-066-10-00-00 is a 3300 XL transducer. It is compatible with 3500 Series monitors that accept 3300 XL transducer inputs (such as the 3500/42M). For native 3500 Series transducer inputs, a 3500-compatible probe such as the 330730 or 330900 series would be specified. Confirm your monitor module’s transducer input specification before ordering.

Q: What is the lead time and shipping arrangement?
A: In-stock units ship within 3–7 business days via DHL Express or FedEx International Priority from Xiamen, China. Same-day dispatch is available for urgent orders confirmed before 14:00 CST. Export documentation (commercial invoice, packing list, HS code 903180) is prepared for all international shipments.

Warranty Assurance

Every Bently Nevada 330851-02-000-066-10-00-00 unit supplied by TOPNLMS is covered by a 12-month warranty from the date of shipment. Our pre-shipment inspection protocol includes verification of probe tip impedance within the specified range, cable continuity and insulation resistance check, connector integrity inspection, and visual examination of the probe body and cable jacket for mechanical damage.

In the event of a warranty claim, TOPNLMS provides a replacement unit dispatch within 5 business days of claim confirmation. Defective units are accepted for return under our RMA process with no restocking fee during the warranty period. Our technical support team is available via email and phone to assist with installation queries, gap-setting guidance, and compatibility confirmation prior to purchase.

For procurement teams requiring documentation, we can provide a product test report, certificate of conformance, and export packing list upon request. Volume pricing and blanket order arrangements are available for MRO departments managing multi-site 3300 XL probe inventories.

Contact our sales team to confirm stock availability, request a quotation, or discuss your specific replacement requirements before placing an order.
