Bently Nevada 330851-02-000-050-10-00-05 Original Spare 3300 XL Compatible: System Stability and Industrial Spare Maintenance Value

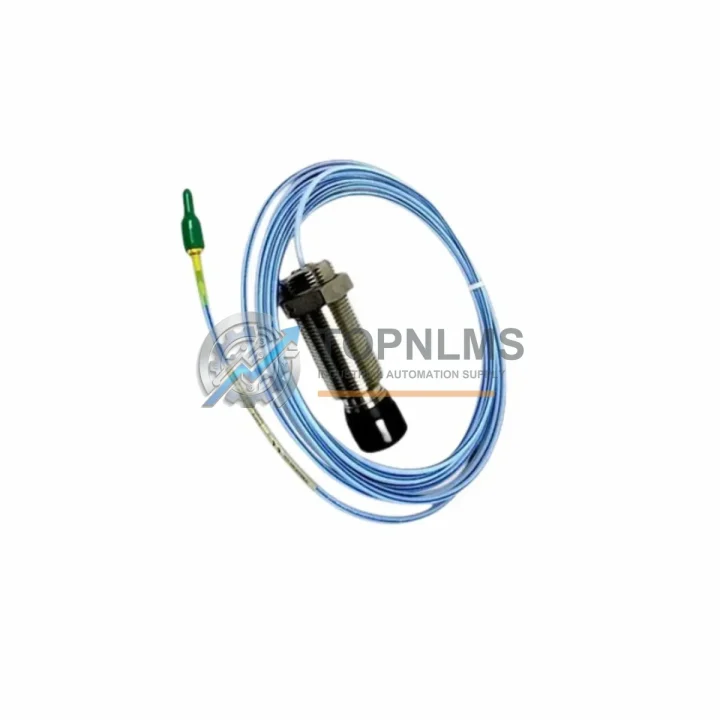

The Bently Nevada 330851-02-000-050-10-00-05 is a factory-original proximity transducer system from the renowned 3300 XL Series, engineered for continuous vibration and position monitoring in rotating machinery applications. With a 5-meter extension cable configuration, this transducer system delivers the precision signal conditioning required by turbines, compressors, pumps, and other critical rotating assets operating under demanding industrial conditions.

For maintenance engineers and reliability teams managing aging DCS or vibration monitoring infrastructure, sourcing a verified original spare part like the 330851-02-000-050-10-00-05 is a direct investment in system uptime. Counterfeit or incompatible transducers introduce measurement drift, false alarms, and—at worst—undetected machinery faults that escalate into catastrophic failures. Choosing an original Bently Nevada component eliminates that risk entirely.

Critical Technical Specs Table

Preventive Maintenance Strategy

A proximity transducer system does not operate in isolation. The 330851-02-000-050-10-00-05 is one node in a broader vibration monitoring chain, and its reliability is only as strong as the weakest link in that chain. During any planned shutdown or corrective maintenance event involving this transducer, experienced maintenance teams treat the inspection as an opportunity to audit the entire measurement loop.

Begin at the 3300 XL driver module (such as the 330180-X1-05 or equivalent driver in your rack). Verify that the driver’s output voltage is within the nominal –24 VDC bias range and that the gap voltage at the probe tip corresponds to the correct mechanical clearance. A driver that is drifting out of specification will produce erroneous readings even with a brand-new probe installed.

Next, inspect the extension cable assembly. The 330851 series uses a matched cable-probe-driver system; substituting cables of different lengths or impedance characteristics will shift the calibration curve. If the extension cable shows any signs of jacket abrasion, connector corrosion, or mechanical damage near the conduit entry points, replace it as a unit rather than attempting field repairs.

Within the 3500 Series monitoring rack that typically hosts 3300 XL inputs, check the condition of the 3500/42M Proximitor/Seismic Monitor or equivalent I/O module. These modules process the raw transducer signal and generate the 4–20 mA or relay outputs consumed by the plant DCS. A module with degraded input impedance will mask real vibration events. Keeping a spare 3500-series I/O module on the shelf alongside your transducer inventory is a low-cost hedge against extended downtime.

The Keyphasor transducer (commonly the 330980 series) is another component that warrants simultaneous inspection. Keyphasor signals provide the phase reference for all vibration vectors in the monitoring system; a faulty Keyphasor will corrupt 1X and 2X amplitude readings across every channel in the rack, making it appear as though multiple transducers have failed simultaneously. Replacing the Keyphasor probe and driver as a matched set during the same outage window eliminates this diagnostic ambiguity.

At the cabinet level, verify the 3500/15 Power Supply module output rails. Voltage sag or ripple on the –24 VDC supply directly affects transducer bias and can introduce noise floors that obscure low-amplitude fault signatures. If the power supply is more than five years old or shows any history of nuisance trips, proactive replacement during a planned outage is far less costly than an unplanned shutdown caused by supply failure.

For facilities running Bently Nevada System 1 software for condition monitoring, ensure that the transducer channel configuration in the software matches the physical hardware after any replacement. Mismatched sensitivity factors (e.g., entering 200 mV/mil for a 100 mV/mil probe) will produce systematic measurement errors that are difficult to diagnose without reviewing the software configuration against the physical part number.

Finally, review the terminal strip and field wiring within the junction box. Loose terminations, corroded ring terminals, and inadequate cable shielding grounding are among the most common causes of intermittent transducer faults in the field. A torque check of all terminal screws and a continuity test of the shield drain wire takes less than 30 minutes and can prevent months of spurious alarms.

Strategic Replacement Solutions

The 330851-02-000-050-10-00-05 is a direct, pin-compatible replacement for earlier 3300 XL proximity transducer assemblies of the same cable length and thread specification. Plants that have been operating legacy Bently Nevada 7200 Series or early 3300 Series transducers can migrate to the 3300 XL platform using this part number without modifying the existing conduit runs, junction boxes, or rack wiring—provided the driver module is also updated to the XL-compatible variant.

This backward-compatible design philosophy is central to Bently Nevada’s value proposition for long-life industrial assets. A paper mill, petrochemical plant, or power generation facility that installed its original vibration monitoring system in the 1990s can extend the operational life of that system by a decade or more simply by refreshing the field-mounted transducer assemblies with current-production 3300 XL components. The alternative—a full system replacement including new racks, new software licenses, and new field wiring—carries capital costs and commissioning risks that are rarely justified when the underlying measurement technology remains sound.

For maintenance planners building a spares strategy around the 330851-02-000-050-10-00-05, the recommended minimum stock level is two units per monitored machine train, held in a climate-controlled spare parts store. This provides one immediate-swap unit for corrective maintenance and one buffer unit to cover the replenishment lead time. Facilities with more than four monitored trains should consider a pooled spare arrangement with a target of one transducer system per three machine trains, reviewed annually against actual consumption history.

All units shipped from TOPNLMS are tested for output linearity, bias voltage, and frequency response prior to dispatch. Each unit is individually packaged with an inspection record and ships with a 12-month warranty covering manufacturing defects and functional failure under normal operating conditions. Expedited shipping options are available for emergency maintenance situations.

Support FAQ

Q1: Is the 330851-02-000-050-10-00-05 compatible with my existing 3500 Series rack?
Yes. The 3300 XL proximity transducer system is designed to interface directly with 3500 Series monitor modules, including the 3500/42M and 3500/40M. Verify that your driver module is the XL-compatible variant (identifiable by the “XL” suffix on the driver label) to ensure the calibration curve matches the transducer output.

Q2: What is the recommended replacement interval for this transducer system?
Bently Nevada does not publish a fixed calendar-based replacement interval for the 330851 series under normal operating conditions. Best practice is condition-based replacement: replace when the gap voltage at the nominal mechanical clearance deviates more than ±0.5 VDC from the calibration baseline, or when physical inspection reveals cable jacket damage, connector corrosion, or probe tip wear. Many facilities also replace transducers proactively during major overhauls every 4–6 years as part of a reliability-centered maintenance programme.

Q3: How do I verify the unit before installation?
Connect the driver to a regulated –24 VDC supply and use a calibrated gap-setting fixture or a precision micrometer stage to position a target of the correct material at the nominal gap distance (typically 1.0 mm for the standard 3300 XL probe). Measure the output voltage and confirm it falls within the published linear range. TOPNLMS performs this functional test on every unit prior to shipment; the test record is included in the packaging.

Q4: What does the 12-month warranty cover, and how do I make a claim?
The warranty covers manufacturing defects and functional failure under normal operating conditions for 12 months from the date of shipment. It does not cover damage resulting from incorrect installation, overvoltage, mechanical impact, or use outside the published environmental ratings. To initiate a warranty claim, contact us at [email protected] with your order number, a description of the fault, and photographs of the unit and installation. We will arrange return shipping and either repair or replace the unit at no charge.
