Bently Nevada 330780-51-CN Replacement for 3300 XL

Product Overview

Bently Nevada 330780-51-CN Replacement for 3300 XL: Smooth Migration from Legacy Vibration Monitoring Systems

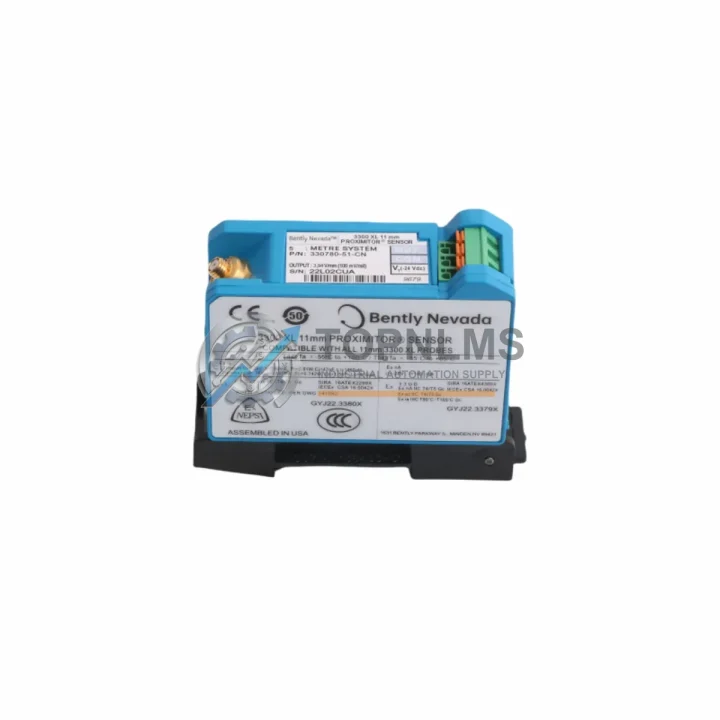

The Bently Nevada 330780-51-CN is a 5-metre eddy current proximitor sensor designed for the 3300 XL Series vibration monitoring platform. As legacy Bently Nevada 3300 Series installations approach end-of-life or face discontinued spare-part availability, plant engineers and reliability teams are increasingly required to execute a controlled migration to the 3300 XL architecture — or to source verified replacement units that maintain full backward compatibility with existing field wiring, rack infrastructure, and monitoring software.

This listing provides a tested, ready-to-ship 330780-51-CN replacement unit, sourced and inspected to meet OEM performance specifications. Whether you are executing a like-for-like swap on a critical rotating machine or planning a phased upgrade across multiple measurement points, this proximitor sensor is engineered to integrate directly into your existing installation with minimal disruption.

Compatibility Comparison Table

Seamless Upgrade Solutions

A successful migration from a legacy vibration monitoring installation to the 3300 XL platform rarely involves a single component. In practice, field engineers replacing the 330780-51-CN proximitor sensor will typically also evaluate the condition and compatibility of the associated Bently Nevada 3300 XL 8mm extension cable and the proximitor driver module mounted in the rack. The driver — commonly a Bently Nevada 330180 or 330130 series driver — must be verified to match the probe-cable-driver system impedance for the 5-metre configuration.

At the rack level, the Bently Nevada 3300/16 monitor module or 3300/20 dual-channel monitor provides the signal conditioning and alarm relay outputs that interface with the plant DCS or safety instrumented system (SIS). If the existing monitor card is also approaching obsolescence, a concurrent replacement of both the proximitor sensor and the monitor card eliminates the risk of a second unplanned outage. For installations using a Bently Nevada 3500 Series rack as the target upgrade platform, the 3500/42M position monitor and 3500/22M transient data interface are commonly specified alongside the sensor replacement to achieve full system modernisation.

Field wiring termination is handled at the Bently Nevada I/O terminal block or marshalling panel. In most brownfield installations, the existing shielded twisted-pair cable between the junction box and the rack can be reused without modification, provided cable continuity and shield integrity are verified during commissioning. Where cable replacement is required, the Bently Nevada 330030 armoured extension cable is the recommended field-side interconnect for harsh environments.

For plants integrating vibration data into a GE Mark VIe or Emerson DeltaV DCS, the analog output from the 3300 XL monitor card connects directly to the DCS AI module without protocol conversion. Where Modbus RTU or PROFIBUS DP integration is required, a Bently Nevada 3500/92 communication gateway provides the necessary protocol bridge, enabling the vibration system to report to the plant historian or SCADA without additional signal conditioning hardware.

Retrofit Guidance FAQ

Q: Can I replace the 330780-51-CN without changing the field wiring?
A: Yes. The 330780-51-CN uses the same connector pinout and cable impedance as the legacy 3300 Series probe. Existing field wiring, conduit runs, and junction box terminations are fully reusable in the vast majority of installations.

Q: Do I need to reconfigure the monitor card after replacing the sensor?
A: If the replacement unit matches the original probe-cable-driver system (same gap voltage, sensitivity, and cable length), no monitor reconfiguration is required. Verify the OK/Not OK threshold settings in the monitor after installation as a standard commissioning step.

Q: Is the 330780-51-CN compatible with both 3300 and 3300 XL monitor cards?
A: The 330780-51-CN is rated for the 3300 XL platform. Compatibility with earlier 3300 Series monitors should be verified against the specific monitor card revision. Contact our technical team with your monitor card part number for confirmation.

Q: What is the physical installation clearance required?
A: The probe body dimensions are identical to the legacy 3300 Series, so no modification to the probe holder, bracket, or machine casing is required. Maintain the manufacturer-specified gap voltage (typically –10 VDC at mid-range) during installation.

Q: Can this unit be used in a safety instrumented system (SIS) application?
A: The 330780-51-CN is a standard vibration monitoring sensor. For SIL-rated applications, consult the Bently Nevada 3500 Series safety manual and verify the complete loop SIL rating with your functional safety engineer.

Warranty Assurance

Every Bently Nevada 330780-51-CN unit shipped from TOPNLMS undergoes pre-shipment functional inspection, including output signal verification and connector integrity check. All units are covered by a 12-month warranty from the date of shipment, covering manufacturing defects and functional failures under normal operating conditions.

In the event of a warranty claim, TOPNLMS provides a replacement unit or full refund within the warranty period. Our technical team is available to support installation, commissioning queries, and compatibility verification prior to purchase. Stock is maintained in Xiamen for prompt dispatch, with international express shipping available to minimise plant downtime.

For volume procurement, project-based pricing, or urgent AOG (aircraft-on-ground equivalent) industrial requirements, contact our sales team directly.
