Bently Nevada 330730-040-00-00 Replacement Cable 3300 XL

Product Overview

Bently Nevada 330730-040-00-00 Replacement Cable for 3300 XL: Smooth Migration from Legacy Proximity Systems

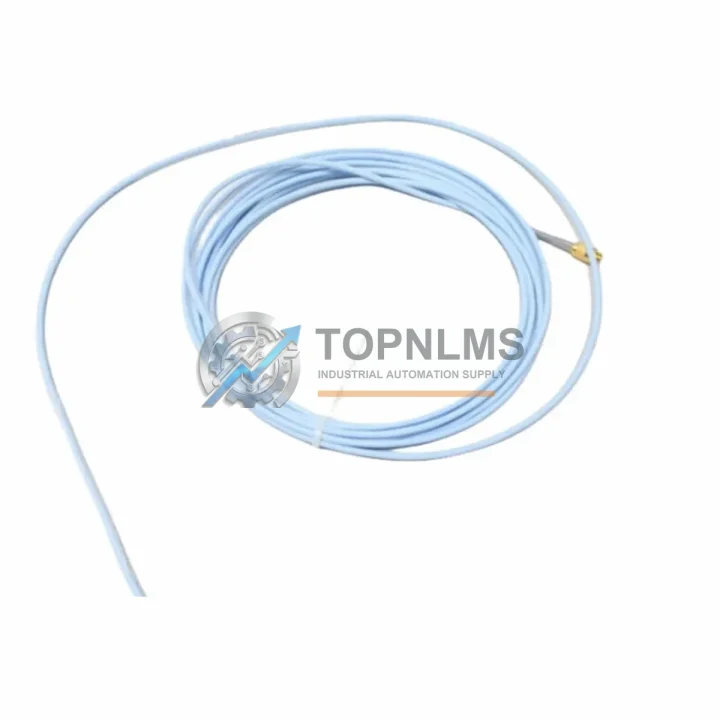

The Bently Nevada 330730-040-00-00 is a 4-metre proximity probe extension cable engineered for the 3300 XL vibration monitoring platform. As legacy Bently Nevada 3300 series installations approach end-of-life or require spare-part replenishment, plant engineers and reliability teams increasingly source this cable as a direct drop-in replacement to maintain continuous shaft-vibration and position monitoring without re-engineering the signal chain.

This extension cable bridges the 3300 XL proximity probe (typically an 8 mm or 5 mm tip probe such as the 330101 or 330103 series) to the proximitor/driver module mounted in the machinery protection rack. The 4 m length is the most common field-installed run in turbine, compressor, and pump monitoring applications where the probe is installed close to the shaft journal and the proximitor is housed in a nearby junction box or control cabinet. Replacing a failed or degraded cable with the correct OEM-specification 330730-040-00-00 eliminates the need to recalibrate the gap voltage or adjust the proximitor sensitivity, because the cable’s electrical characteristics — capacitance, impedance, and shielding — are identical to the original installation.

Compatibility Comparison Table

Seamless Upgrade Solutions

A successful migration of a Bently Nevada 3300 XL proximity measurement loop often involves more than a single cable. During planned outages or emergency replacements, reliability engineers typically audit the entire signal chain from the probe tip to the monitoring rack. The 330730-040-00-00 extension cable is the most frequently replaced consumable, but the following components are commonly addressed in the same work order:

The 3300 XL 8 mm Proximity Probe (330101-00-24-10-02-00) is the transducer at the shaft end of the loop. If the probe tip shows physical damage or the gap voltage has drifted beyond the linear range, replacing the probe alongside the extension cable restores the full measurement chain to factory specification in a single maintenance window. Similarly, the 3300 XL Proximitor Sensor (330180-51-00) — the signal-conditioning driver module — should be inspected for output drift or connector corrosion whenever the cable is replaced, since a degraded proximitor can mask the improvement from a new cable.

For installations migrating from the older Bently Nevada 7200 series proximity system to the 3300 XL platform, the cable replacement is part of a broader retrofit that includes swapping the 7200-series proximitor for a 3300 XL Proximitor and updating the rack wiring in the 3500 Machinery Protection Rack. The 3500 rack’s I/O modules — such as the 3500/42M Proximitor/Seismic Monitor — accept the 3300 XL probe-and-cable assembly directly, making the 330730-040-00-00 the correct extension cable choice for this migration path.

Power supply integrity is equally important. The 3500/15 Power Supply Module provides the regulated –24 VDC bias voltage that the proximitor requires. A failing power supply can cause erratic gap readings that are often misdiagnosed as cable or probe faults; confirming power supply health before and after cable replacement prevents repeat call-outs. In installations where the proximitor is mounted in a remote junction box rather than the main rack, a 3300 XL Field-Mount Proximitor paired with the 330730-040-00-00 cable provides a compact, panel-space-efficient solution.

For multi-channel turbine or compressor monitoring upgrades, the 3500/40M Proximitor/Seismic Monitor handles up to four proximity channels per card, and each channel uses an independent extension cable run. Replacing all four 330730-series cables simultaneously during a planned outage eliminates the risk of staggered failures during the next operating cycle. Where signal isolation between the field loop and the control system is required — particularly in older DCS integrations — a signal isolator or barrier module compatible with the –24 VDC proximity circuit should be verified for correct input impedance before the new cable is commissioned.

Finally, for sites performing a full condition-monitoring upgrade that includes adding online vibration trending to a previously unmonitored machine train, the Bently Nevada System 1 software platform provides the data acquisition and alarm management layer. The 330730-040-00-00 cable is the field-wiring link that connects the physical measurement to the System 1 database, making correct cable selection a foundational step in any digital-transformation project for rotating equipment reliability.

Retrofit Guidance FAQ

Q: Can I replace the 330730-040-00-00 without recalibrating the gap voltage?
A: Yes. Because the replacement cable has identical electrical characteristics to the original, the static gap voltage at the proximitor output will remain within the calibrated linear range. No gap adjustment is required provided the probe-to-shaft gap was correctly set before the cable failed.

Q: Is the connector compatible with my existing probe and proximitor?
A: The 330730-040-00-00 uses standard Bently Nevada coaxial push-on connectors at both ends. It mates directly to all 3300 XL 8 mm and 5 mm probes and to the 3300 XL Proximitor Sensor without adapters or modifications.

Q: Will this cable work if I am migrating from a 7200-series system to the 3300 XL?
A: The 330730-040-00-00 is a 3300 XL-specification cable. If you are replacing 7200-series cables, you will also need to replace the 7200-series proximitor with a 3300 XL Proximitor Sensor, as the two systems use different driver electronics. The cable itself is not cross-compatible between platforms.

Q: Can I route this cable through existing conduit designed for the original cable?
A: Yes. The outer diameter and minimum bend radius of the 330730-040-00-00 are identical to the original, so it can be pulled through existing conduit or cable tray without modification.

Q: What communication protocol does this cable support?
A: The 3300 XL proximity system uses an analogue eddy-current signal — not a digital fieldbus protocol. No changes to DCS, PLC, or safety system I/O configuration are required when replacing this cable.

Q: How do I verify the cable is functioning correctly after installation?
A: With the machine at rest and the shaft at the correct gap, measure the DC output voltage at the proximitor. It should fall within the linear range specified on the proximitor label (typically –10 VDC ± 2 V for a correctly gapped 8 mm probe). If the reading is outside this range, check the gap before suspecting the cable.

Warranty Assurance

Every Bently Nevada 330730-040-00-00 extension cable supplied by TOPNLMS is covered by a 12-month warranty from the date of shipment. Prior to dispatch, each unit undergoes continuity, insulation-resistance, and connector-integrity checks to confirm it meets the original Bently Nevada specification. If a unit exhibits any defect in materials or workmanship within the warranty period, TOPNLMS will arrange a replacement or refund — whichever the customer prefers — with no return-shipping cost to the buyer.

Orders are processed and dispatched from our Xiamen warehouse, with global logistics options including DHL Express, FedEx International Priority, and sea freight for bulk orders. Lead time for in-stock units is typically 1–3 business days to dispatch. Customers requiring expedited delivery for emergency plant shutdowns should contact our sales team directly to arrange priority handling.

For procurement teams requiring documentation, we can provide a packing list, commercial invoice, certificate of conformance, and — where applicable — an export licence declaration. All units are individually packaged to prevent transit damage, with connector caps fitted to protect the mating surfaces during shipping.
