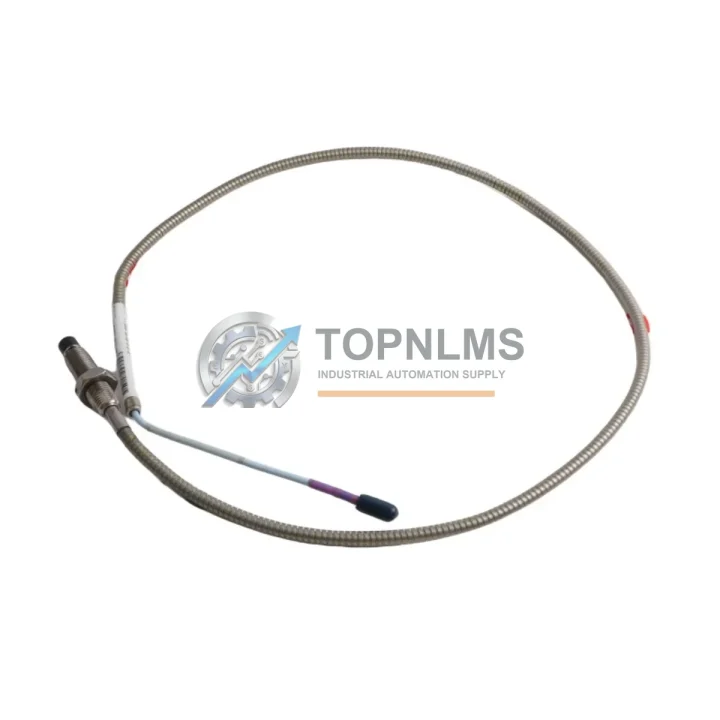

Bently Nevada 330704-000-100-10-11-CN Ruggedized Proximity Probe

Product Overview

Bently Nevada 330704-000-100-10-11-CN: Industrial Resilience for the Harshest Environments

The Bently Nevada 330704-000-100-10-11-CN is an 11 mm eddy-current proximity probe engineered within the globally trusted 3300 XL Proximity Transducer System — a platform that has set the benchmark for non-contact vibration and position measurement in safety-critical rotating machinery applications for decades. Built to API 670 standards, this probe delivers unwavering signal integrity under conditions of extreme temperature cycling, persistent mechanical vibration, high ambient humidity, abrasive particulate dust, and intense electromagnetic interference (EMI) — the exact conditions found in oil and gas compression trains, power generation turbines, mining mill drives, and heavy metallurgical processing lines.

Its ruggedized stainless-steel housing and hermetically sealed tip assembly resist ingress from industrial fluids, iron oxide dust, hydrocarbon mists, and corrosive process atmospheres. The shielded coaxial cable construction provides high EMI and RFI rejection, ensuring that signal fidelity is maintained even when the probe is routed adjacent to high-power variable frequency drives, large transformer banks, or arc furnace installations where electromagnetic noise levels would compromise lesser sensors. Whether installed on a gas turbine journal bearing in a hazardous area or on a centrifugal compressor in a petrochemical plant, the 330704-000-100-10-11-CN maintains sub-micron measurement resolution across its full linear operating range without requiring field recalibration.

For facilities operating under continuous production schedules — where unplanned downtime carries costs measured in tens of thousands of dollars per hour — the reliability of the sensing front-end is not a secondary concern. It is the foundation of the entire machine protection strategy. The 330704-000-100-10-11-CN is that foundation.

Rugged Specifications Table

Comprehensive Protection Solutions

The 330704-000-100-10-11-CN is the sensing front-end of a tightly integrated machine protection architecture. In a typical turbine or compressor protection panel, this probe pairs directly with the Bently Nevada 330180-X1-05 3300 XL Proximitor® Sensor, which conditions the raw eddy-current signal into a calibrated DC voltage readable by the monitoring rack. That signal is then processed by a Bently Nevada 3500/42M Proximitor®/Seismic Monitor card, where vibration amplitude, phase, and gap data are evaluated against user-defined alarm and danger setpoints in real time.

For plants running Bently Nevada System 1® Evolution condition monitoring software, the 330704-000-100-10-11-CN feeds waveform and trend data directly into the plant historian, enabling predictive maintenance decisions before a bearing failure or rotor rub escalates into an unplanned shutdown. The monitoring rack communicates over Modbus RTU or OPC-UA to the plant DCS — whether a Honeywell Experion PKS, Emerson DeltaV, or ABB 800xA — ensuring machine protection data is visible at the operator workstation alongside process variables.

Within the control cabinet, the probe signal chain is protected by Bently Nevada 3500/05 Power Supply modules delivering clean, regulated –24 VDC to the Proximitor® sensors even during grid disturbances. Surge protection is reinforced by transient voltage suppression modules installed at the cabinet entry point, guarding against lightning-induced transients on long cable runs from field-mounted probes. The factory-matched 330130 Series Extension Cable maintains the system’s calibrated scale factor over runs up to 9 meters, preserving measurement accuracy without field recalibration.

In safety-instrumented system (SIS) architectures, vibration data from this probe integrates with a Rockwell Automation GuardLogix® Safety PLC or a Pilz PNOZ® Safety Relay to trigger emergency shutdown (ESD) sequences when vibration exceeds API 670 danger levels. The Bently Nevada 3500/33 16-Channel Relay Module provides the hardwired relay outputs needed to interface with ESD valves, motor starters, and interlock circuits — completing the safety loop from sensor to actuator. For I/O marshalling within the protection cabinet, Phoenix Contact AXIOLINE F terminal modules and surge-protected I/O blocks provide the structured wiring backbone that keeps field signals clean and traceable.

Application in Critical Infrastructure

Oil & Gas: On offshore platforms and onshore gas compression stations, the 330704-000-100-10-11-CN monitors radial vibration on centrifugal compressors and gas turbine generators operating continuously in hydrocarbon-rich, high-temperature atmospheres. Its sealed construction prevents gas ingress into the probe body, and its API 670-compliant performance satisfies the machinery protection requirements mandated by operators and insurers alike. In hazardous area installations classified as Zone 1 or Zone 2, the probe is deployed with appropriate barrier or galvanic isolator modules to maintain intrinsic safety compliance.

Power Generation: In coal-fired, gas-fired, and combined-cycle power plants, this probe is mounted on steam turbine journal bearings to detect shaft orbit changes indicative of rotor imbalance, misalignment, or oil whirl instability. Early detection through the probe’s high-resolution output allows maintenance teams to schedule corrective action during planned outages rather than responding to catastrophic failures that can take a generating unit offline for weeks.

Mining & Minerals Processing: Ball mills, SAG mills, and large slurry pumps in mining operations subject proximity probes to extreme vibration, abrasive dust, and water ingress. The 330704-000-100-10-11-CN’s ruggedized housing and sealed tip withstand these conditions, providing reliable shaft position data that protects multi-million-dollar grinding assets from bearing wipe events and catastrophic mechanical failures.

Metallurgy & Steel: On rolling mill main drives and continuous caster pinch rolls, this probe operates in environments with intense electromagnetic fields from large AC drives, radiant heat from hot metal, and iron oxide dust. Its shielded coaxial cable and high EMI rejection ensure signal fidelity even adjacent to high-power variable frequency drives and transformer banks — conditions that routinely cause failures in unshielded sensor systems.

Water & Wastewater Treatment: Large vertical turbine pumps and centrifugal blowers in water treatment facilities benefit from continuous vibration monitoring via the 330704-000-100-10-11-CN, enabling utilities to detect impeller wear and bearing degradation before service interruptions affect municipal water supply or regulatory compliance.

Security & Quality FAQ

Q1: What warranty coverage is provided with the 330704-000-100-10-11-CN?
Every unit shipped by TOPNLMS carries a 12-month warranty from the date of shipment. If the unit exhibits any functional defect within the warranty period under normal operating conditions, we will arrange replacement or repair at no additional cost. Our warranty process is straightforward — contact us with your order reference and a description of the issue, and our technical team will respond within one business day.

Q2: How is each unit tested before shipment?
All 330704-000-100-10-11-CN units undergo pre-shipment functional verification, including output voltage linearity checks across the specified gap range and insulation resistance testing on the coaxial cable assembly. Units that do not meet Bently Nevada’s published scale factor tolerance of ±1% are quarantined and not shipped. Test records are available upon request for customers with quality audit requirements.

Q3: Is this probe compatible with existing 3300 XL system installations?
Yes. The 330704-000-100-10-11-CN is a direct form-fit-function replacement for any 11 mm probe in the Bently Nevada 3300 XL Proximity Transducer System. It is fully compatible with 330130 Series extension cables and 330180 Series Proximitor® sensors without requiring system recalibration, provided the existing extension cable length matches the probe’s cable length for the combined system calibration. Always verify the total probe-plus-extension cable length against the Proximitor® sensor’s calibration curve before installation.

Q4: Can long-term supply continuity be guaranteed for ongoing maintenance programs?
TOPNLMS maintains dedicated safety stock of high-demand Bently Nevada 3300 XL Series components to support customers with multi-year maintenance contracts and critical spare parts programs. We can provide lead-time commitments and blanket order arrangements for facilities that require guaranteed availability of the 330704-000-100-10-11-CN as a critical rotating equipment spare. Contact our team to discuss your facility’s specific stocking and supply continuity requirements.
