Bently Nevada 330500 Velomitor Replacement for 3300 Series

Product Overview

Bently Nevada 330500 Velomitor Replacement for 3300 Series: Smooth Transition & Legacy System Compatibility

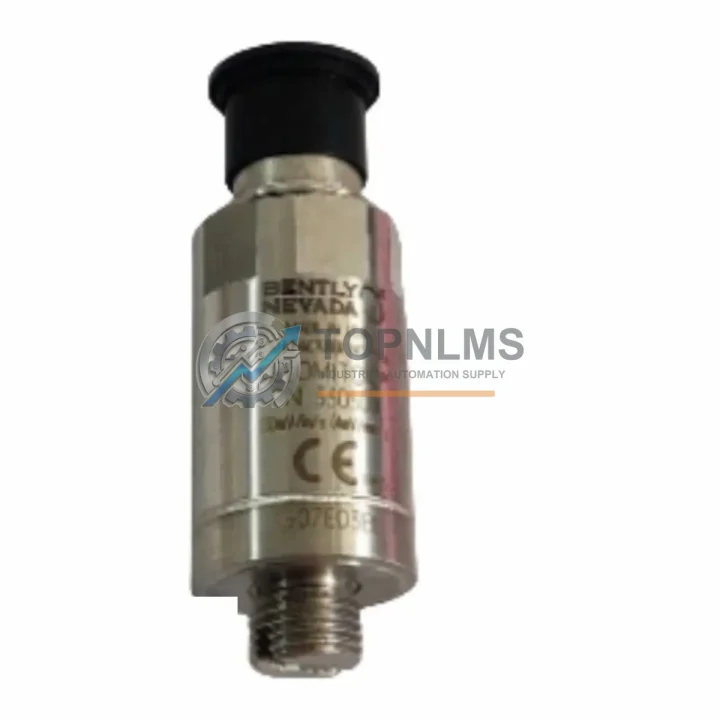

The Bently Nevada 330500 Velomitor Velocity Transducer is a high-performance ICP-type velocity sensor engineered for continuous vibration monitoring in rotating machinery protection systems. For facilities operating legacy Bently Nevada 3300 Series monitoring racks — including the 3300/16 and 3300/20 proximity monitor modules — the 330500 represents the most direct, field-proven replacement path available today. Whether your original sensor has reached end-of-life, suffered mechanical damage, or is simply no longer available through OEM channels, the 330500 provides a seamless drop-in upgrade that preserves your existing wiring infrastructure, signal conditioning architecture, and machinery protection logic without requiring reprogramming or rack reconfiguration.

Industrial facilities running Bently Nevada System 1 condition monitoring software or interfacing with a 3500 Series rack via the 3500/42M Proximitor/Seismic Monitor will find the 330500 fully compatible at the signal level. The sensor outputs a standard ICP (Integrated Circuit Piezoelectric) voltage signal, making it interoperable with any 3300 Series monitor card that accepts a 4–20 mA or voltage-mode velocity input. This eliminates the need for signal converters or isolation amplifiers in most retrofit scenarios, significantly reducing installation time and commissioning risk.

When migrating from older Velomitor CT or XA variants, engineers frequently encounter questions about connector pinout compatibility, cable shielding requirements, and bias voltage levels. The 330500 uses the standard 2-pin MIL-C-5015 style connector common across the 3300 Series ecosystem, meaning existing field cables — including those routed through conduit or cable trays in confined machinery spaces — can typically be reused without modification. This is a critical advantage in brownfield retrofit projects where cable replacement would require extended planned outages.

In turbine, compressor, and pump protection applications, the 330500 is commonly installed alongside the Bently Nevada 330180 Proximity Transducer System for combined radial vibration and velocity monitoring. Facilities upgrading from a 3300/55 Dual Velocity Monitor to a 3500/42M configuration will find that the 330500 satisfies the seismic input channel requirements of the newer rack without any signal conditioning changes. The 3500/42M accepts the same ICP-type input, and the 330500’s sensitivity of 100 mV/in/s (4 mV/mm/s) aligns directly with the monitor’s default engineering unit scaling.

For control system integrators managing a broader migration from legacy Bently Nevada hardware to a modern DCS or safety instrumented system (SIS), the 330500 serves as a stable interim component. It can be wired into a Rockwell Automation 1756-IB16 digital input module or a Honeywell Safety Manager via a signal conditioning relay, allowing vibration trip signals to be integrated into a modern PLC-based machinery protection layer while the full 3500 Series rack upgrade is planned and budgeted. This phased approach minimizes capital expenditure and keeps critical assets online during the transition period.

Procurement teams sourcing the 330500 as a spare or emergency replacement should note that TOPNLMS maintains verified stock of this model, tested against Bently Nevada factory specifications prior to shipment. Each unit undergoes output signal verification, connector integrity inspection, and sensitivity calibration check before dispatch. Standard lead time from our Xiamen warehouse is 3–7 business days for international orders, with expedited air freight available for emergency shutdown situations. All units are supplied with a 12-month warranty covering manufacturing defects and signal performance deviation.

Compatibility Comparison Table

Seamless Upgrade Solutions

A successful 330500 retrofit rarely involves the sensor alone. In most 3300 Series installations, the velocity transducer works in concert with a broader set of monitoring and signal conditioning components that may also require attention during a planned upgrade window. The Bently Nevada 3300/55 Dual Velocity Monitor is the most common rack card paired with the 330500; if this card is also approaching end-of-life, it can be replaced with the 3500/42M Proximitor/Seismic Monitor, which accepts the same ICP input and provides enhanced diagnostics and System 1 integration. For facilities that also monitor shaft displacement, the 330180 Proximity Transducer System — comprising the 330101 or 330103 probe, extension cable, and 3300 XL 8mm driver — is typically installed in the same bearing housing and should be inspected during the same outage.

Signal cabling between the 330500 and the monitor rack is routed through Bently Nevada standard armored extension cables, typically the 330130 or 330140 series, which provide the correct impedance and shielding for ICP signal integrity over long cable runs in electrically noisy plant environments. Where cable runs exceed 30 meters or pass through high-EMI zones near variable frequency drives (VFDs) or large motor starters, a signal isolator or barrier may be required to maintain signal quality. In these cases, a DIN-rail mounted signal conditioner compatible with ICP inputs can be inserted at the marshalling cabinet without affecting the 330500’s output characteristics.

For facilities transitioning to a fully digital machinery protection architecture, the 330500 can serve as the field sensor feeding into a Bently Nevada 3500 rack equipped with a 3500/20 Rack Interface Module for Modbus TCP or PROFIBUS DP communication to the plant DCS. This allows vibration data to be integrated into a Honeywell Experion PKS or ABB System 800xA historian without replacing the field-mounted sensor, preserving the investment in existing sensor installations while modernizing the data acquisition and alarming layer.

Retrofit Guidance FAQ

Q: Can I reuse my existing field wiring when replacing a Velomitor CT with the 330500?
A: In most cases, yes. The 330500 uses the same 2-pin MIL-C-5015 connector and the same ICP bias voltage range as the Velomitor CT. Verify that your extension cable is rated for ICP service (low-noise, shielded, with drain wire) and that the shield is grounded at one end only (typically at the monitor rack).

Q: Do I need to reconfigure my 3300/55 monitor card after installing the 330500?
A: No reconfiguration is required if the replacement sensor has the same sensitivity (100 mV/in/s). The monitor’s alarm and danger setpoints, full-scale range, and engineering unit scaling remain valid. If you are upgrading to a 3500/42M, a one-time configuration via the Rack Configuration Software (RCS) is required to set the input type and sensitivity.

Q: Is the 330500 compatible with PROFIBUS DP or Modbus RTU systems?
A: The 330500 itself is an analog ICP sensor with no fieldbus capability. Fieldbus communication is handled at the monitor rack level (e.g., 3500/20 RIM for Modbus TCP, or a gateway device). The sensor output is protocol-agnostic and compatible with any monitor that accepts an ICP velocity input.

Q: What is the physical footprint of the 330500 compared to older Velomitor models?
A: The 330500 shares the same body diameter and mounting thread (1/4-28 UNF) as the Velomitor CT and XA. No bearing housing modification is required. The overall length is nominally the same, so existing sensor guards and cable strain relief clamps can be reused.

Q: How do I verify the 330500 is functioning correctly after installation?
A: Apply ICP excitation (18–24 VDC constant current, typically 2–10 mA) and verify the bias voltage at the monitor input is within the 10–14 VDC range specified for the 330500. A bias voltage outside this range indicates a wiring fault or sensor failure. Use a handheld ICP signal analyzer or the 3500 rack’s built-in OK/Not OK relay output to confirm sensor health before returning the machine to service.

Warranty Assurance

Every Bently Nevada 330500 Velomitor Velocity Transducer supplied by TOPNLMS is covered by a 12-month warranty from the date of shipment. This warranty covers manufacturing defects, signal performance deviation from published specifications, and connector integrity failures under normal operating conditions. Prior to dispatch, each unit undergoes a pre-shipment inspection protocol that includes output signal verification under ICP excitation, sensitivity measurement against the 100 mV/in/s factory specification, and physical inspection of the connector, cable entry, and mounting thread.

In the event of a warranty claim, TOPNLMS provides a replacement unit or full refund within the warranty period. Our technical support team is available to assist with installation verification, signal troubleshooting, and compatibility confirmation before and after purchase. For emergency replacement requirements — including unplanned shutdowns and critical machinery protection failures — expedited processing and air freight dispatch are available upon request.

Purchasing teams can request a Certificate of Conformance, pre-shipment test report, or product datasheet for any order. All units are shipped in original or equivalent protective packaging with ESD precautions where applicable. Payment terms, export documentation, and customs classification support (HS Code 9031.80) are available for international procurement.
